FITMENT Mercedes-AMG GT (C190) 2015–2021 Mercedes-AMG GT S (C190) 2015–2021 Mercedes-AMG GT C (C190) 2017–2021 Mercedes-AMG GT R (C190) 2016–2021 Mercedes-AMG GT R Pro (C190) 2019–2021 Mercedes-AMG GT Black Series (C190) 2021 Mercedes-AMG GT Roadster (R190) 2016–2021 Mercedes-AMG GT S Roadster (R190) 2018–2021 Mercedes-AMG GT C Roadster (R190) 2016–2021

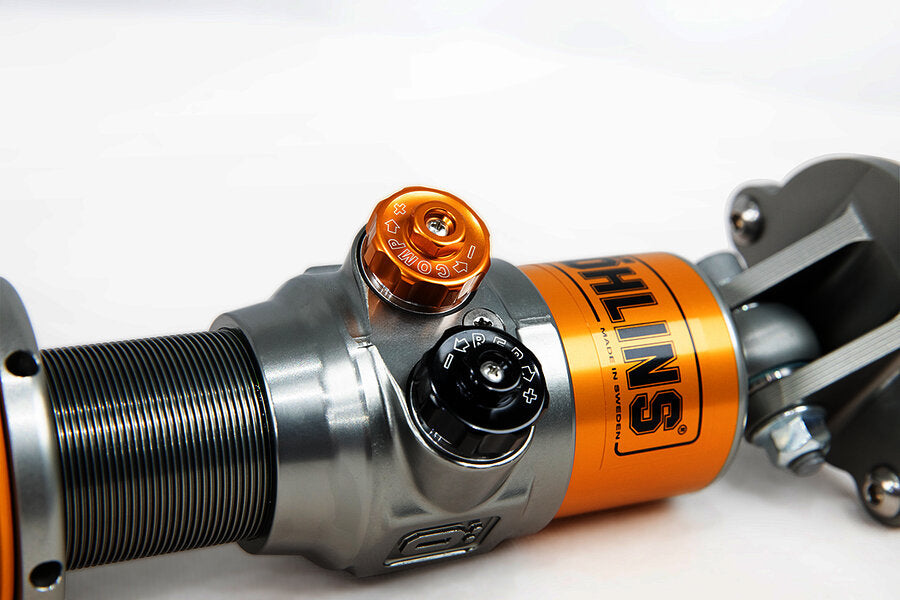

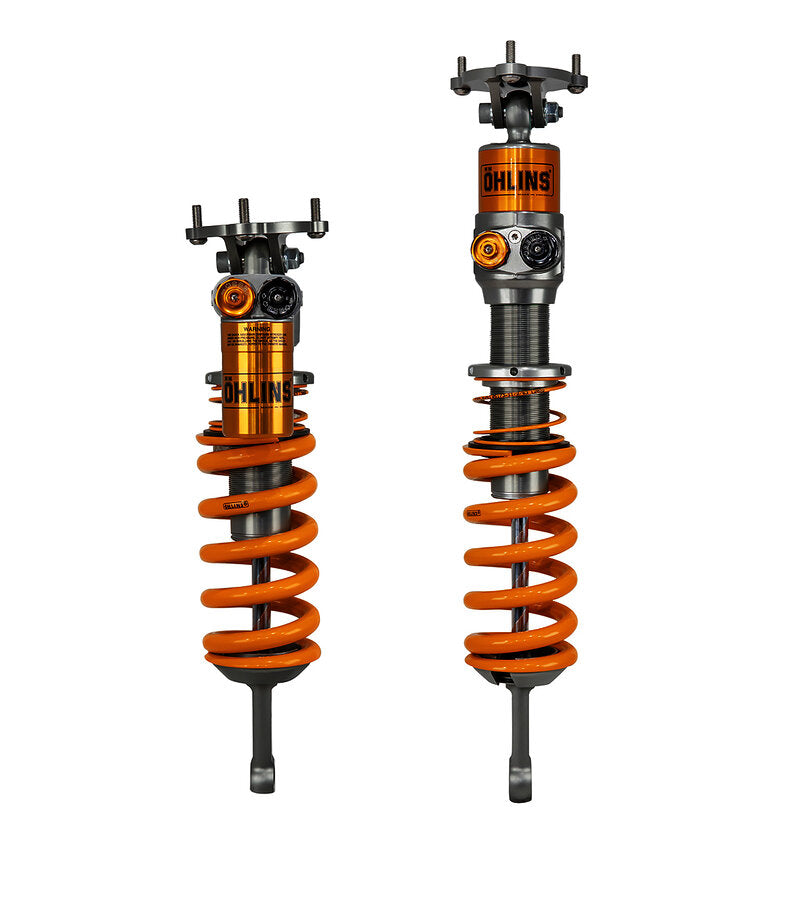

GENERAL FEATURES Twin-Tube technology (TTX) Separate adjustment for compression and rebound damping Height adjustable Rebuildable Upgradeable to 3- or 4-way adjustable Corrosion salt spray tested (ISO 9227) 2 year warranty Springs ordered separately

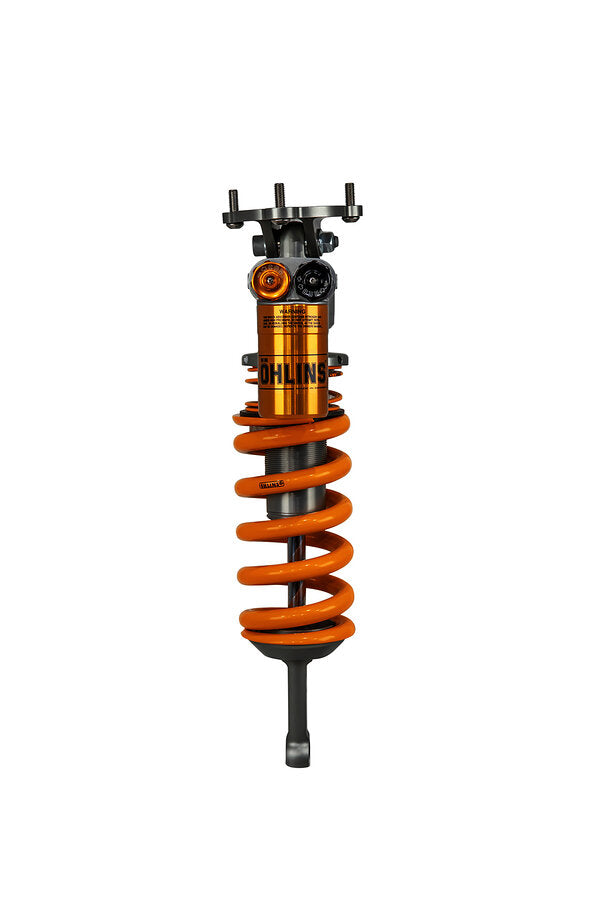

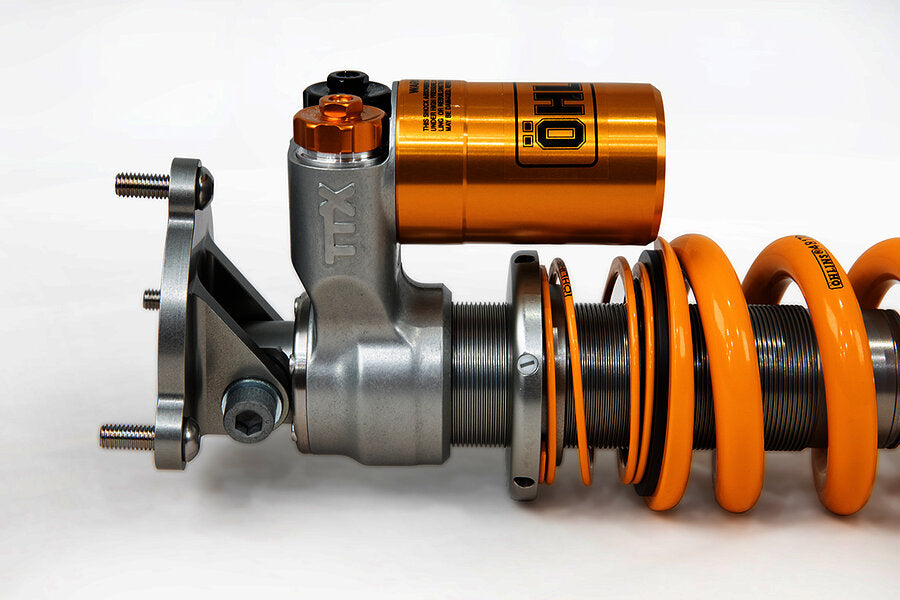

FRONT FEATURES TTX36 twin-tube shock absorber Separate compression and rebound adjustment Spring preload adjuster Used with Öhlins top mounts (ordered separately) Smart piggyback damper design makes room for an aftermarket brake cooling duct kit

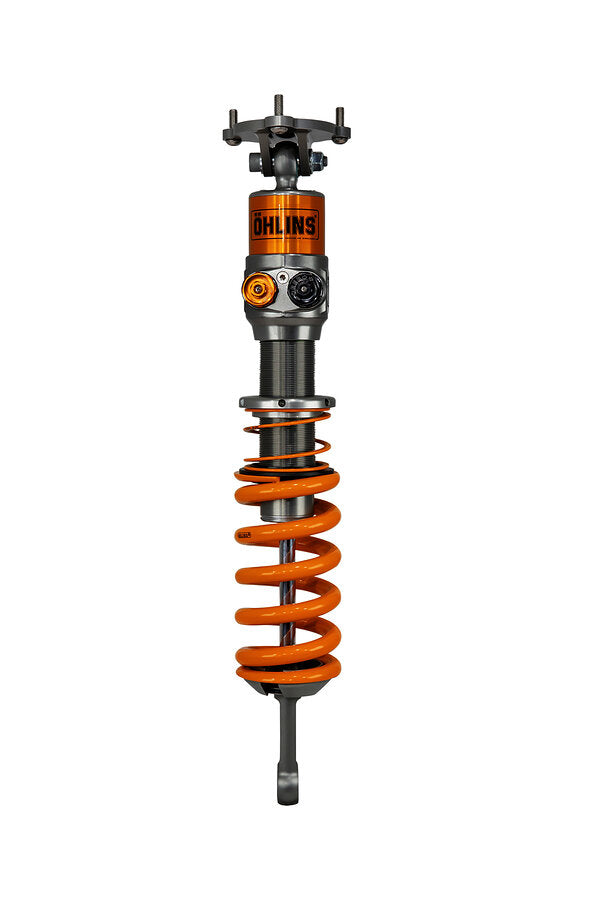

REAR FEATURES TTX36 twin-tube shock absorber Separate compression and rebound adjustment Separate spring preload adjuster Used with Öhlins top mounts (ordered separately)
PURCHASED PARTS PACKAGE Damper set C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set

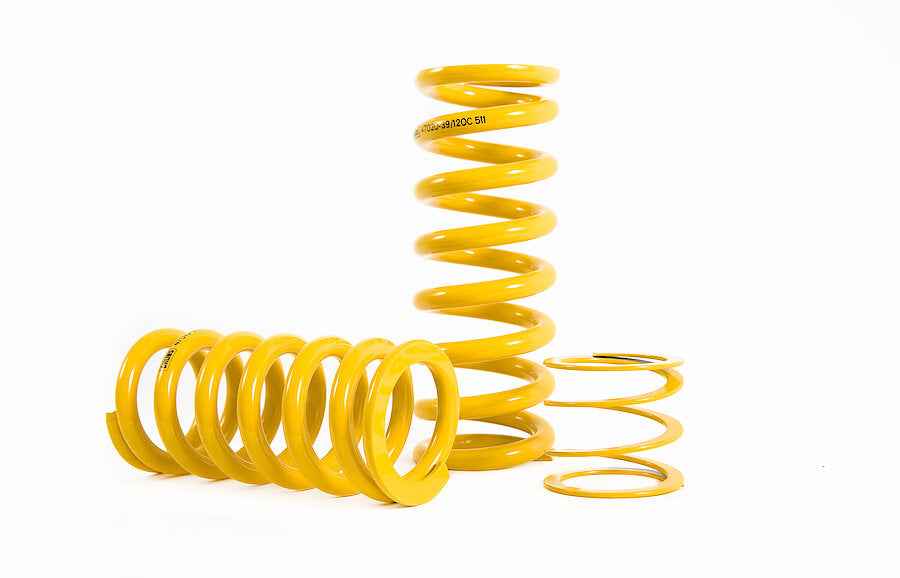

RECOMMENDED SPRINGS Main front - 160 N/mm - 48170-29 Helper front - 7,5 N/mm - 05173-12 Main rear - 140 N/mm - 48170-25 Helper rear - 7,5 N/mm - 05173-12
ADDITIONAL NOTES To remove DTCs from the cars equipped with AMG RIDE CONTROL, option code 459, Öhlins is offering EDC Cancellation kits. EDC Cancellation kit for the coupe: part nr 35020-37 (not included). EDC Cancellation kit for the roadster: part nr 35020-38 (not included). For alternative spring options, please contact us.
