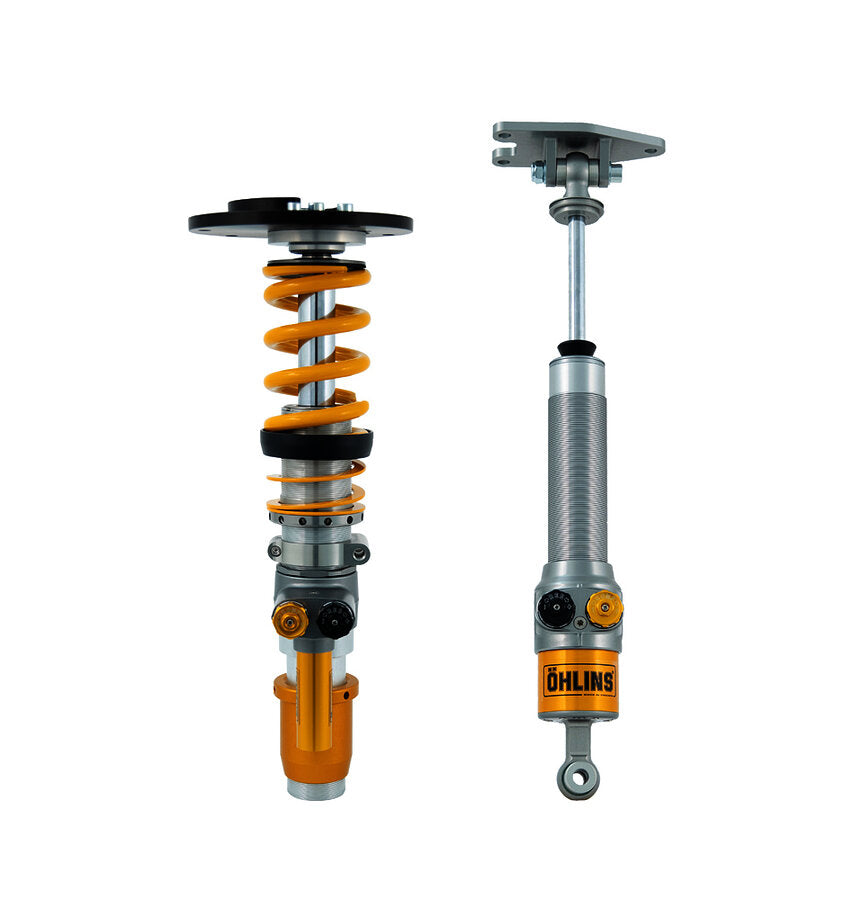

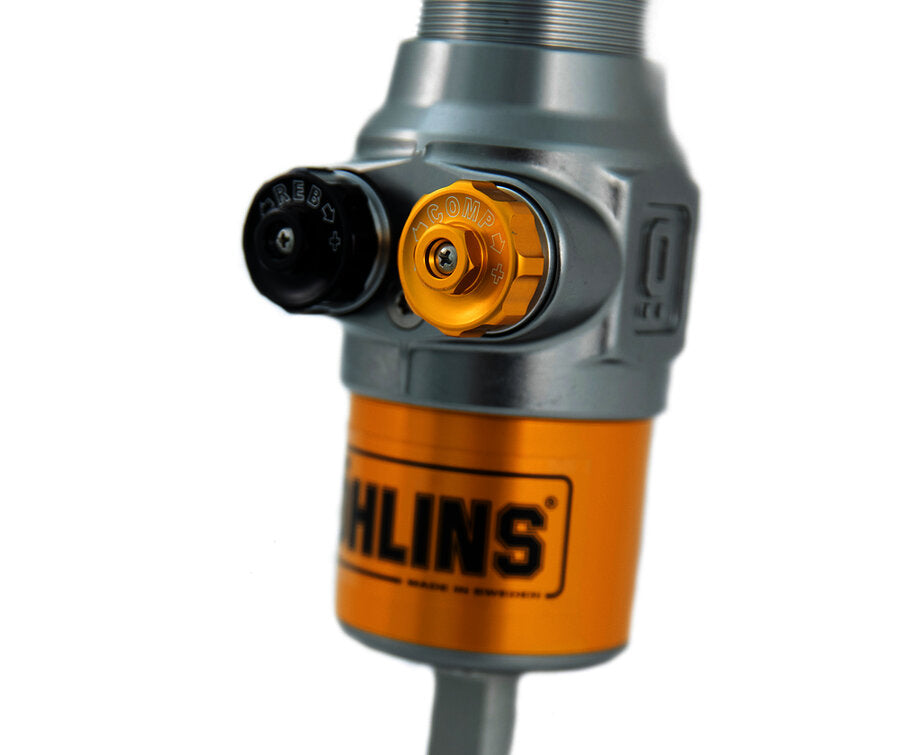

GENERAL FEATURES TTX, a true twin tube design for cavitation free damping performance 2-way fully independent rebound- and compression adjustment Aluminum high strength & light-weight parts Designed to be feasible for popular wheel sizes, clearance for many options Tested and validated for R-compound tyres Rebuildable 2 year limited warranty

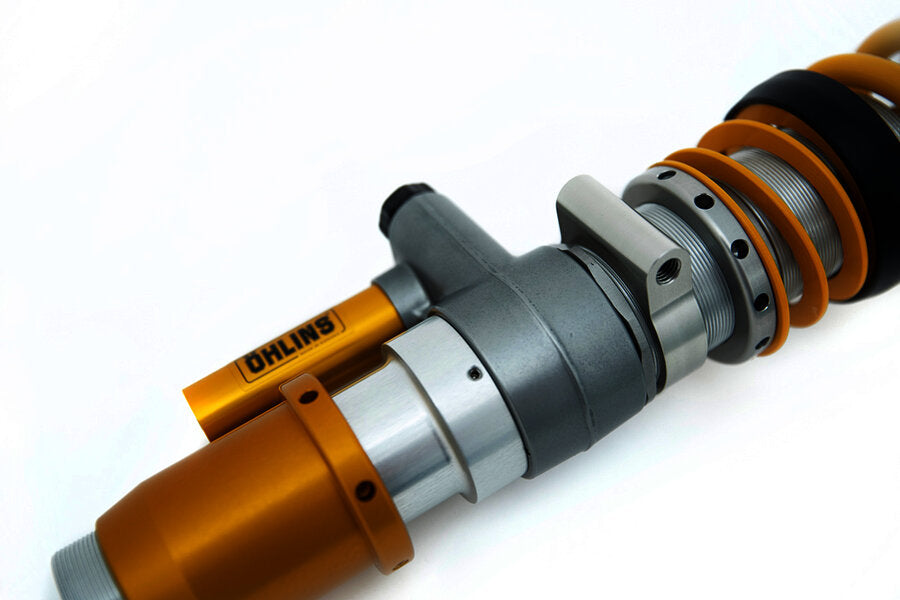

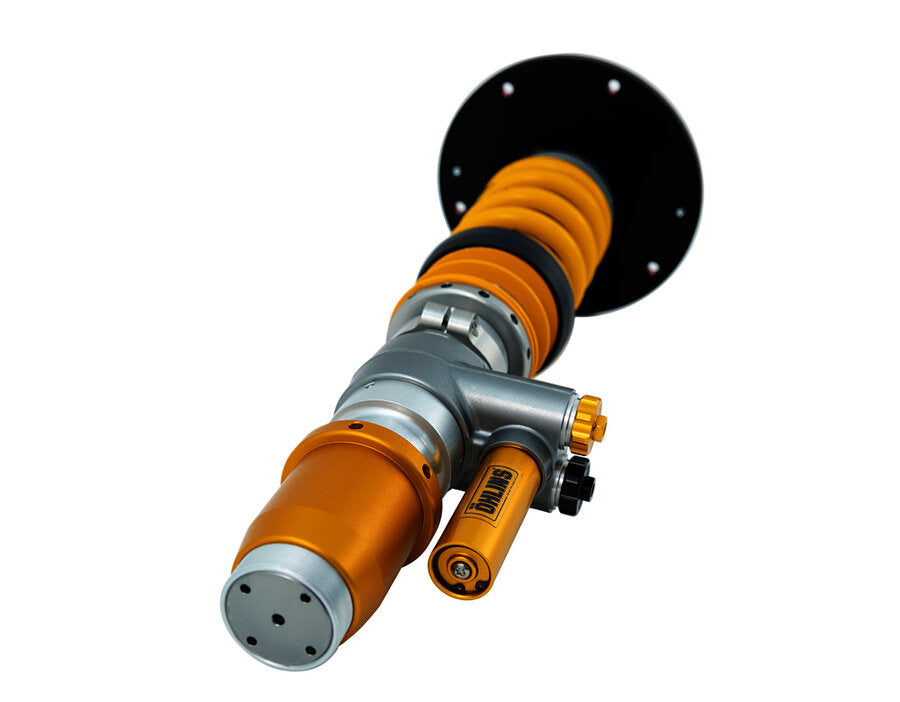

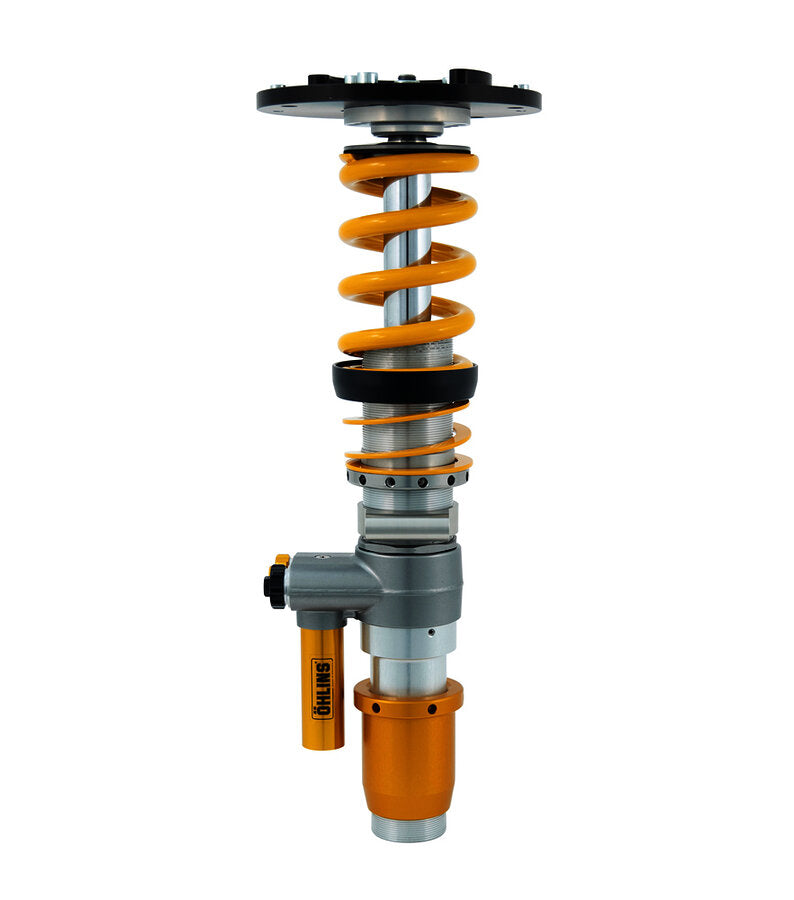

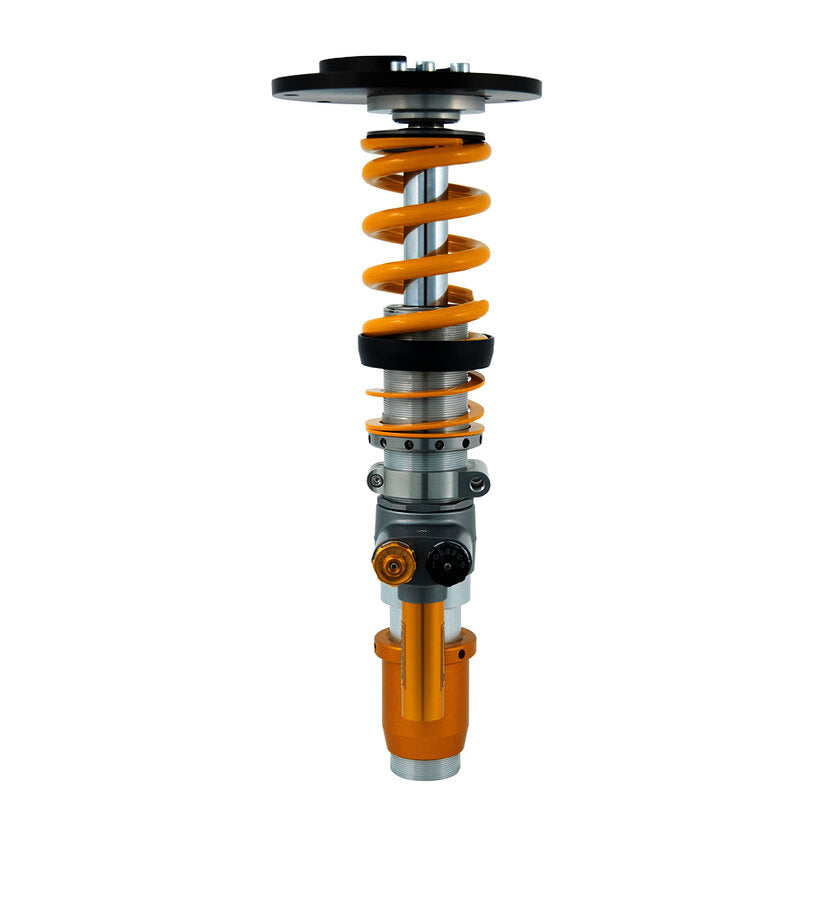

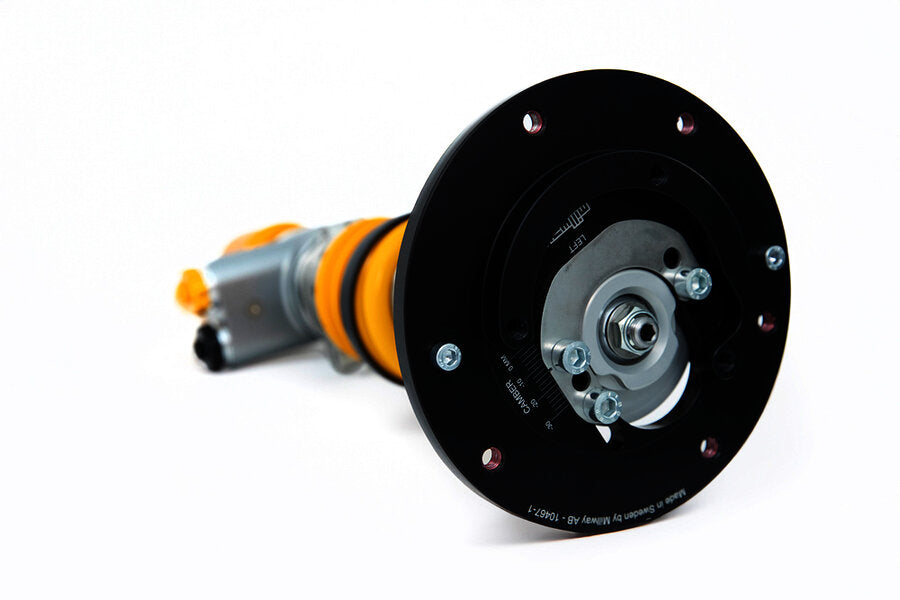

FRONT FEATURES Aluminum high strength, light-weight compact design McPherson strut Through rod design, for better response and driver feedback Used with fully adjustable camber & caster top mounts, with spherical bearings, specially designed by Öhlins & Millway Adjustable drop links with uniball Upgradeable to 3-, 4 & 5-way adjustable including blow-off valve

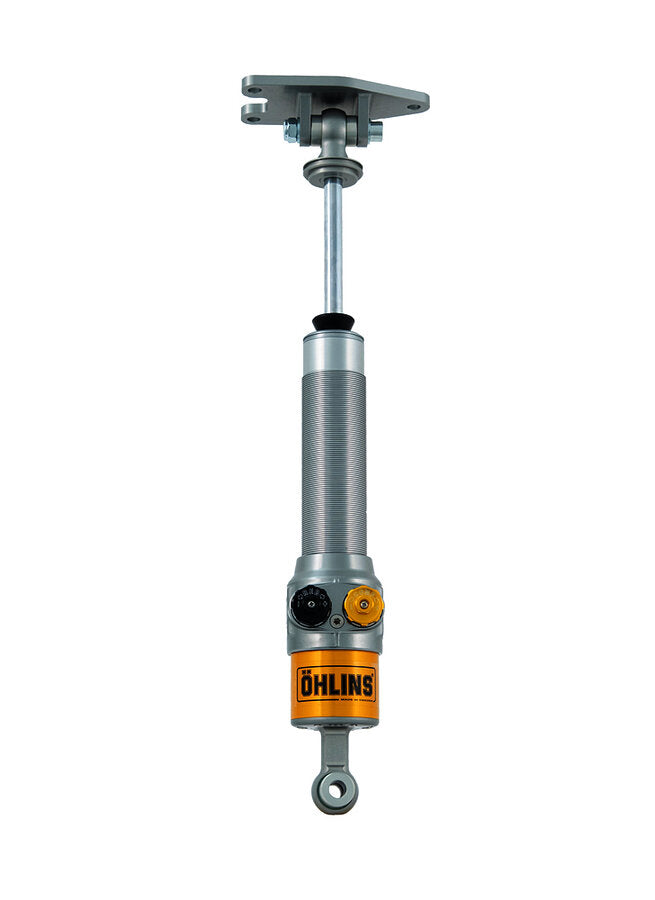

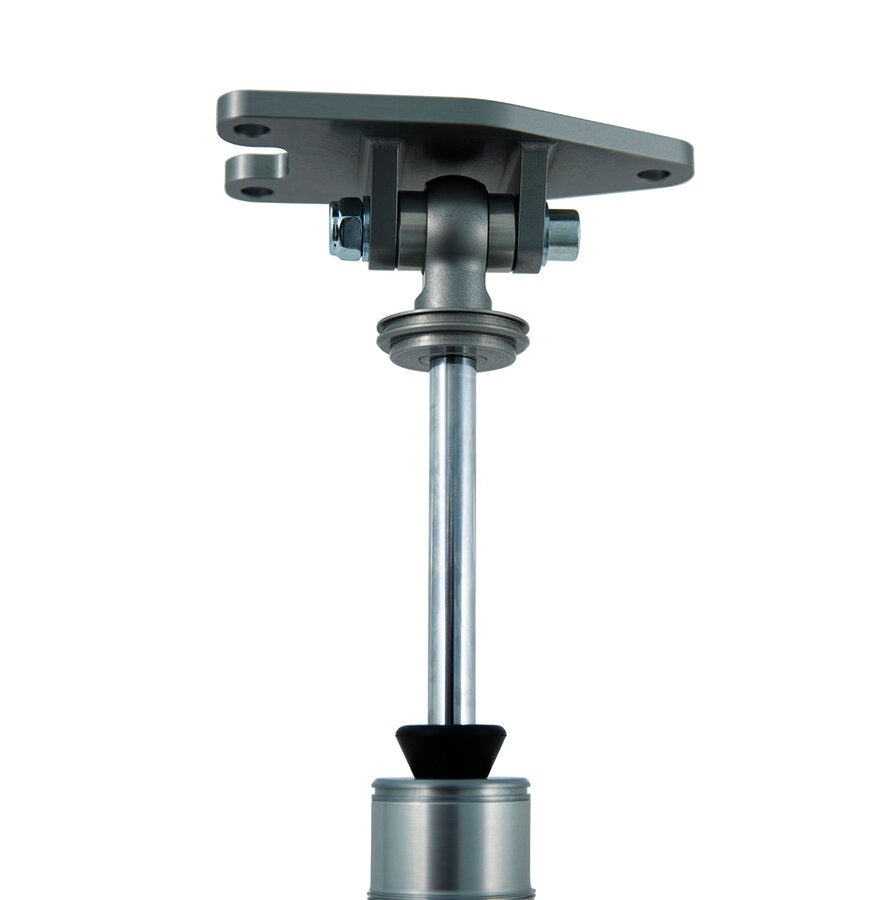

REAR FEATURES Aluminum high strength, light-weight compact design shock absorber Separate spring preload adjuster Clevis design rear aluminum top mounts with spherical bearings Upgradeable to 3- or 4-way adjustable
PURCHASED PARTS PACKAGE Damper set C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set
RECOMMENDED SPRINGS Main front - 140 N/mm - 48140-25 Helper front - 7,5 N/mm - 05173-12 Main rear - 220 N/mm - 48170-41 Helper rear - 7,5 N/mm - 05173-12
ADDITIONAL NOTES The BMW MU31 kit is exclusively designed to work with the front top mounts from Millway. As a result, it should not be used in conjunction with top mounts from any other brand. This goes for the rear top mounts as well. For alternative spring options, please contact us.
