FITMENT BMW M3 (F80) 2014–2018 BMW M4 (F82) 2014–2020

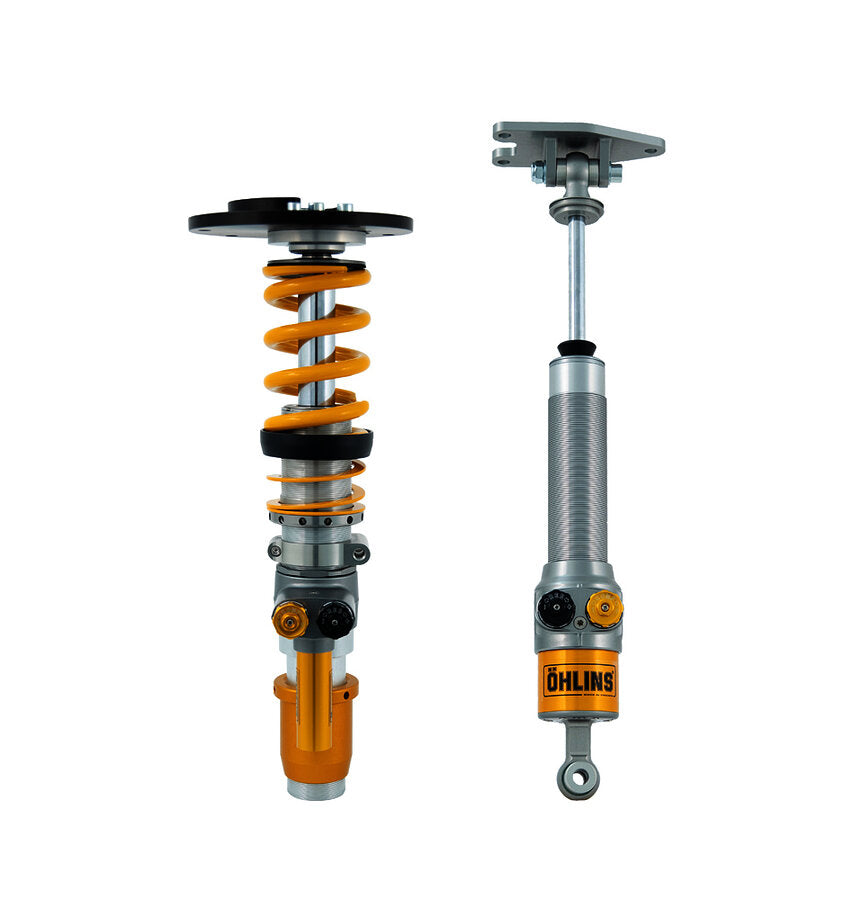

GENERAL FEATURES Race-proven Ohlins Twin-Tube technology (TTX) Separate adjustment for compression and rebound damping, i.e 4-way damping adjustment Aluminum high strength and light-weight design Top mounts specially designed by Öhlins & Millway Tested and validated for multi-compound tyres (semi-slick) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty

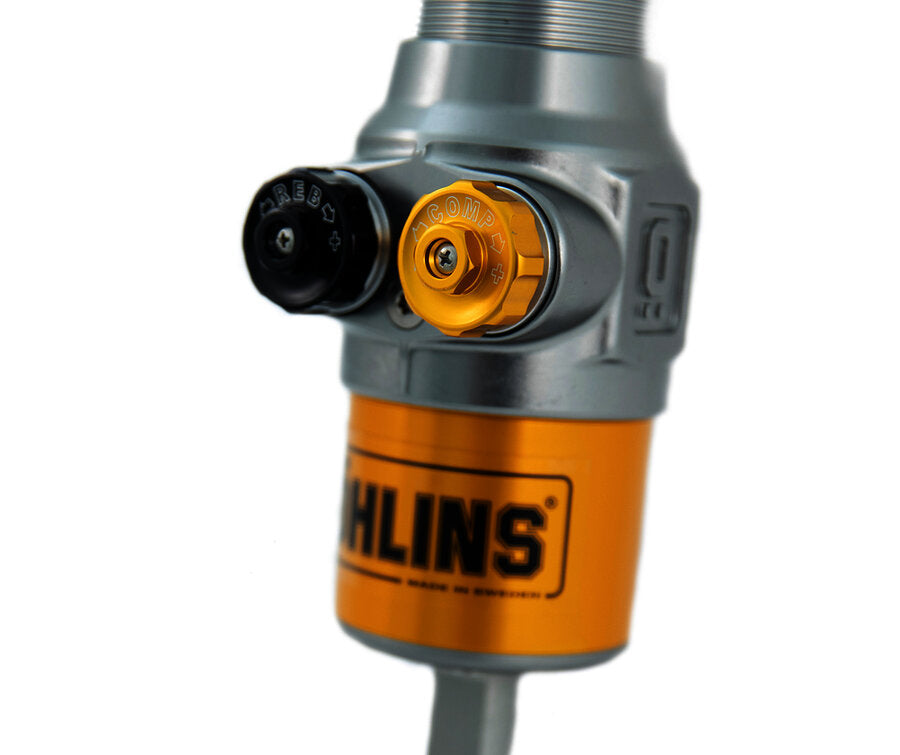

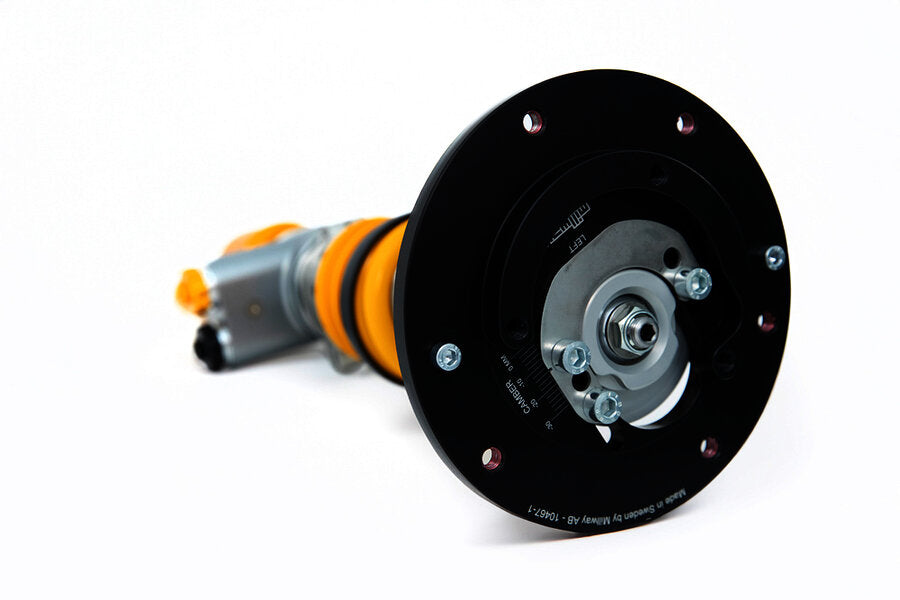

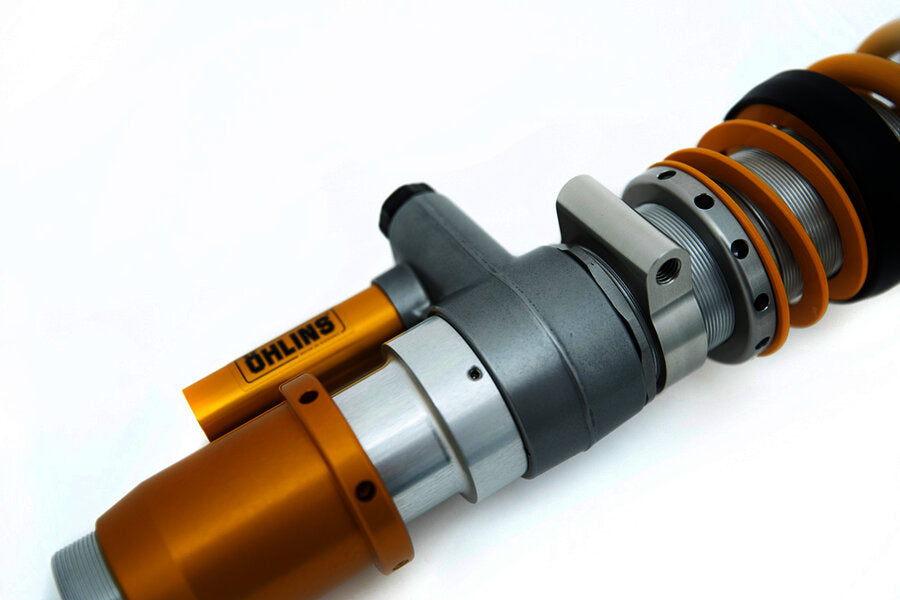

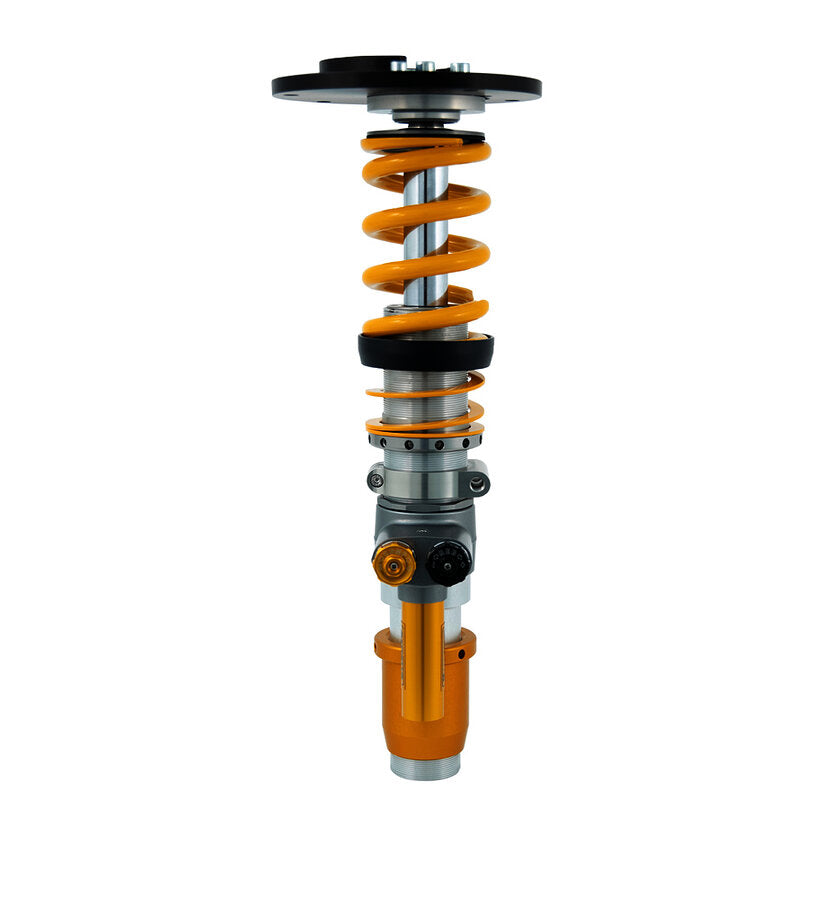

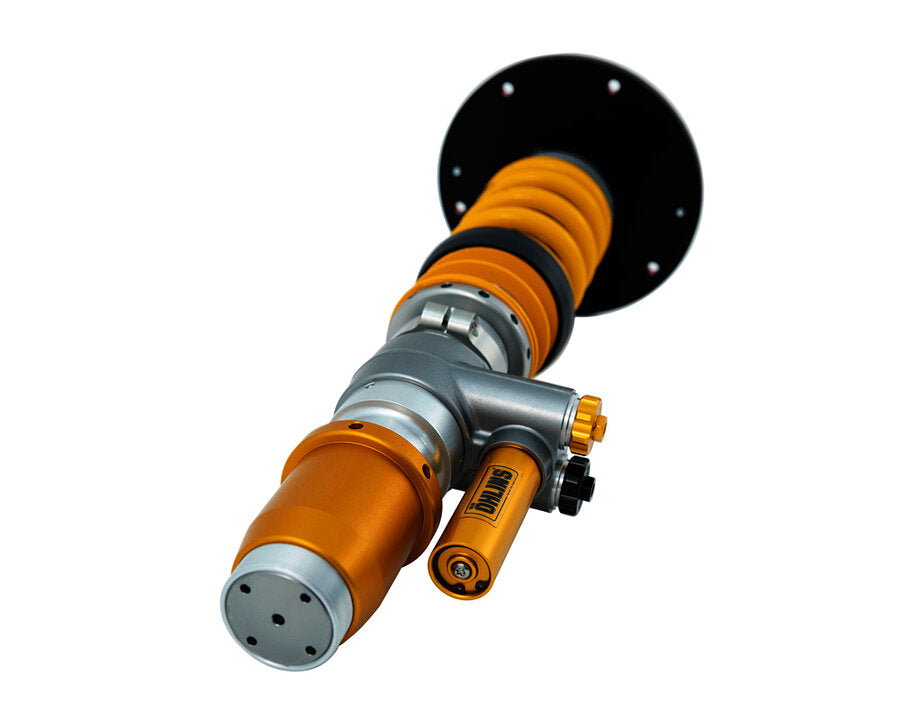

FRONT FEATURES TTX46 McPherson shock absorber with external reservoir 46 mm solid main piston Compression and rebound damping adjustment in high and low speed Spring preload adjuster Separate ride height adjustment Spring rate 150 N/mm Camber & caster adjustable aluminum uniball top mounts Drop links with spherical bearings

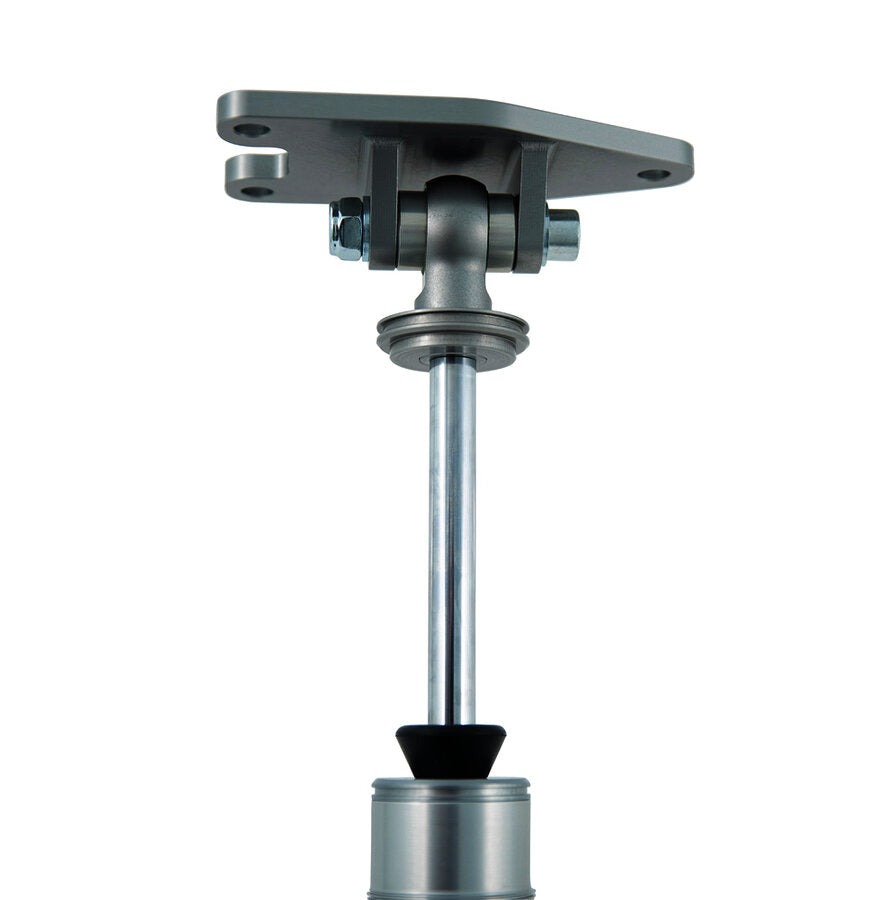

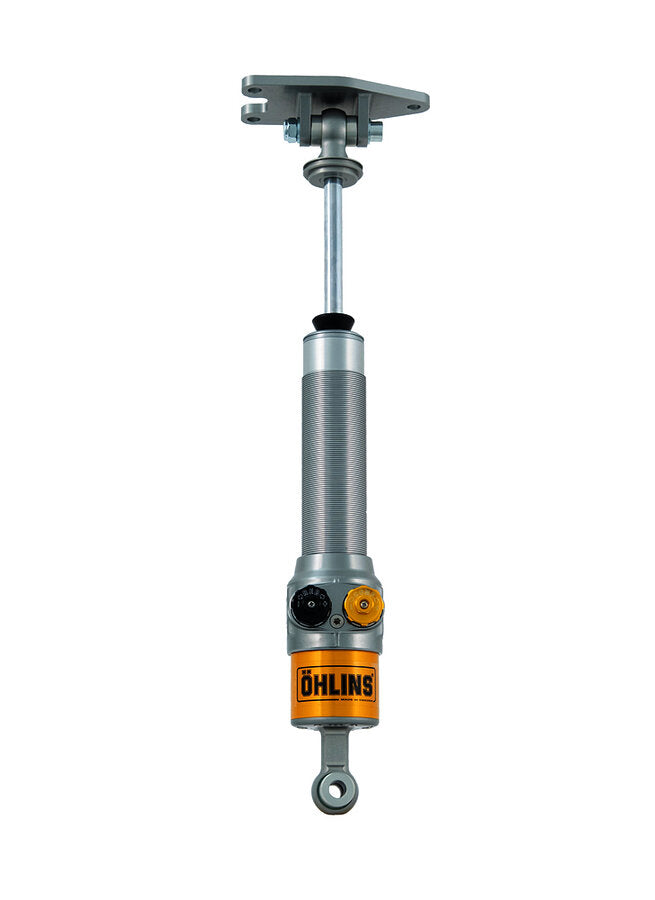

REAR FEATURES ILX36 shock absorbers with internal reservoir 36 mm solid main piston Compression and rebound damping adjustment in high and low speed Spring preload adjuster Spring rate 200 N/mm Uniball aluminum top mounts
PURCHASED PARTS PACKAGE Coilover kit including springs and mounting parts C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set
ADDITIONAL NOTES To remove DTCs from BMW F80 M3 and F82 M4 models equipped with Electronic Damper Control (EDC/Option code 2VF), Öhlins offers an EDC Cancellation kit, part nr 35020-02 and bracket 35021-04 (not included). For alternative spring options, please contact us.
