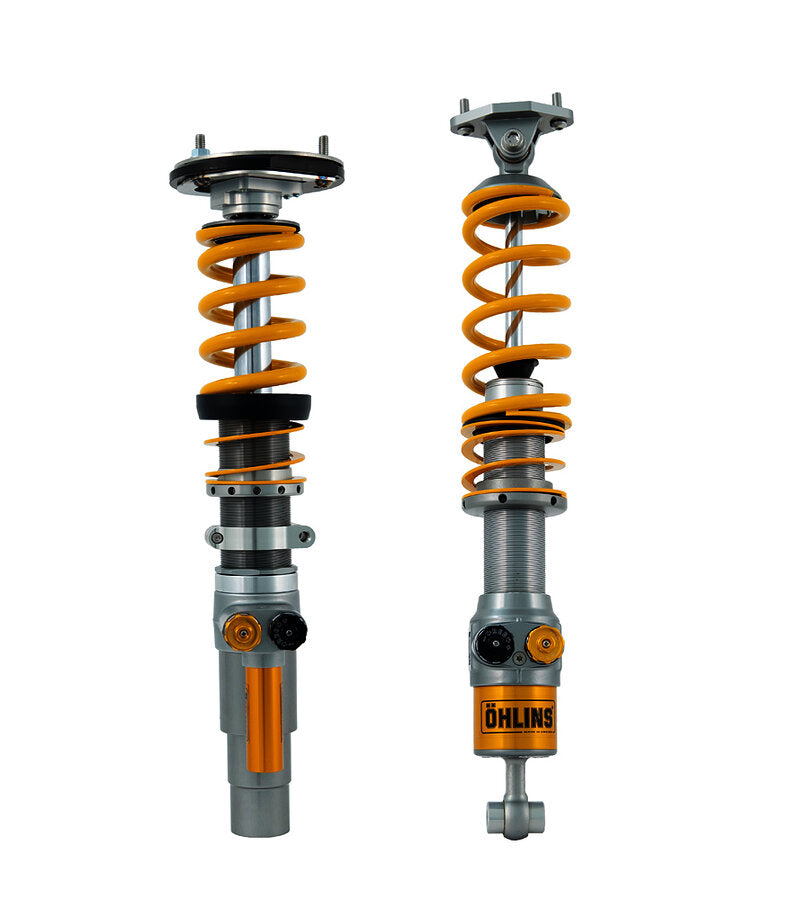

Öhlins Advanced Trackday Coilover Suspension BMW M3 (E46) BMV MU01

BMV MU01

FITMENT
BMW M3 Coupe (E46) 2000–2006
BMW M3 Convertible (E46) 2001–2006
BMW M3 CSL (E46) 2003–2004
BMW M3 ZCP/CS (E46) 2005–2006

GENERAL FEATURES
Race-proven Ohlins Twin-Tube technology (TTX)

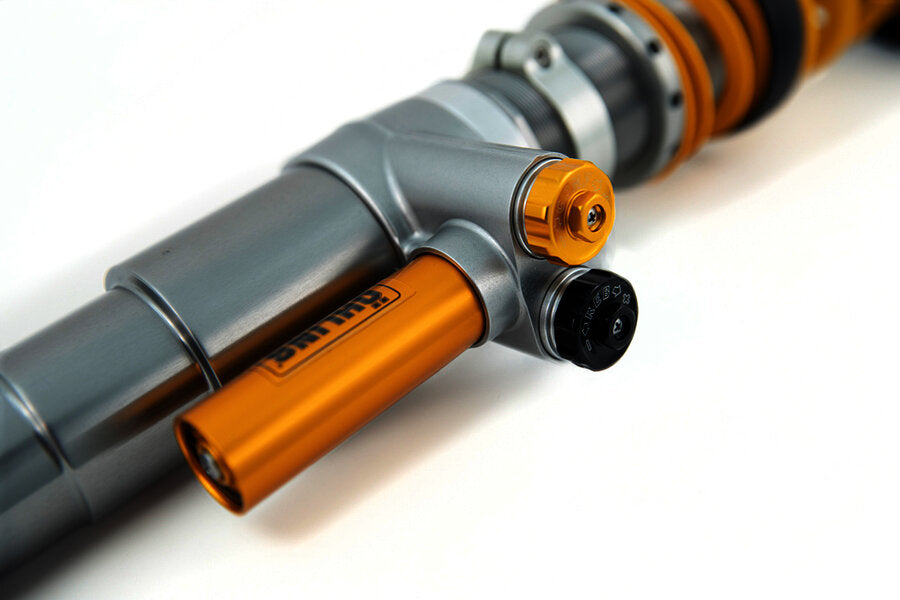

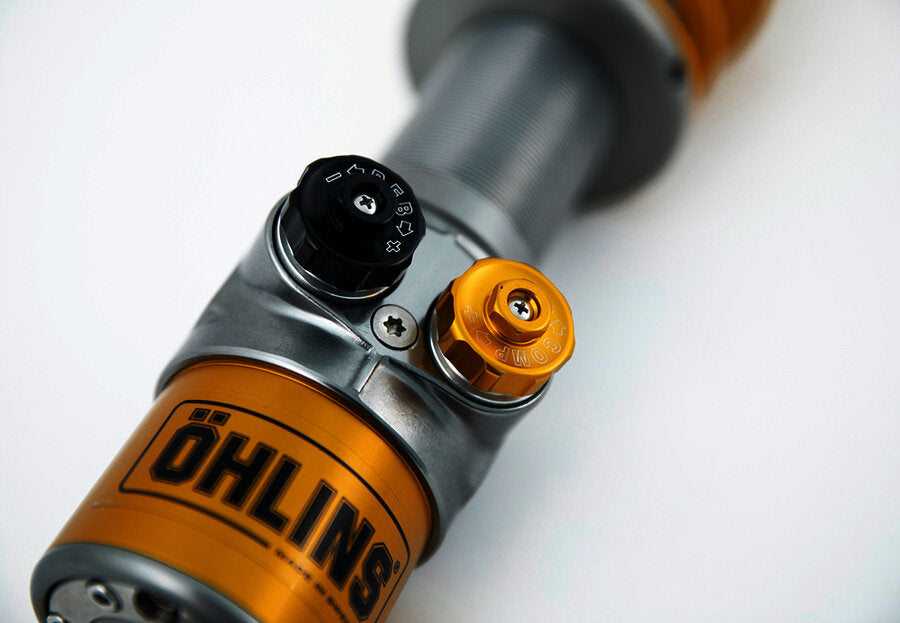

Separate adjustment for compression and rebound damping
Aluminum high strength and light-weight design
Top mounts specially designed by Öhlins & Millway
Tested and validated for multi-compound tyres (semi-slick)
Individual height adjustment
Rebuildable
Corrosion salt spray tested (ISO 9227)
2 year warranty

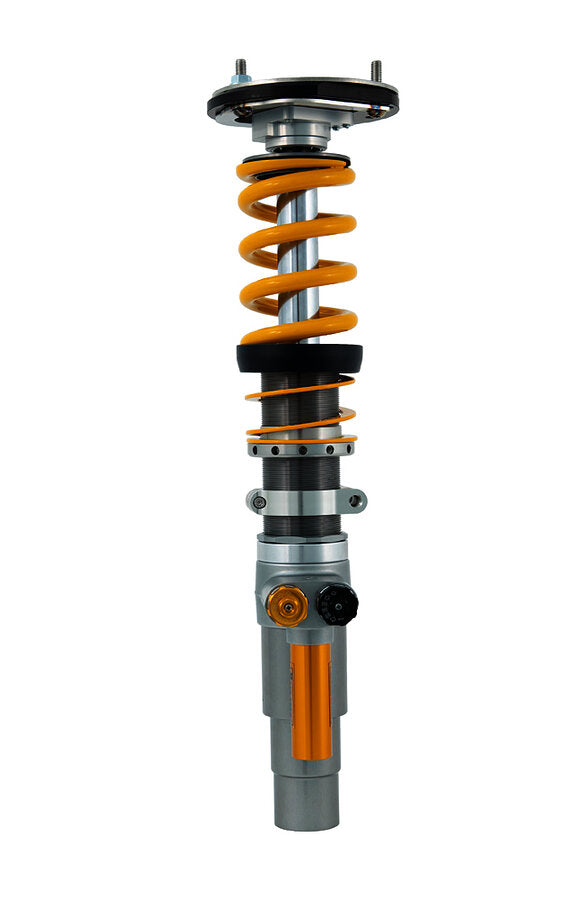

FRONT FEATURES

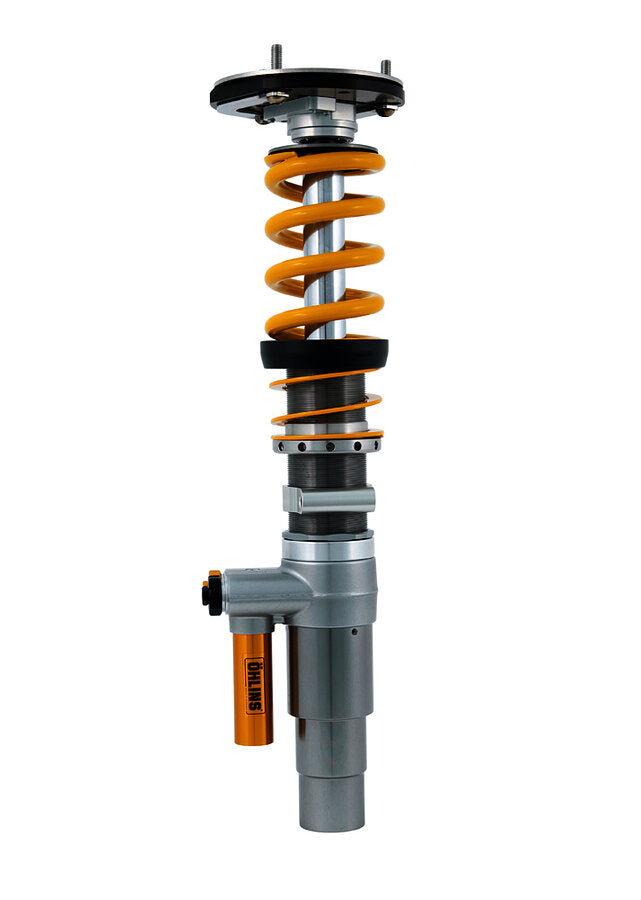

Aluminum high strength, light-weight compact design McPherson strut
Through rod design, for better response and driver feedback

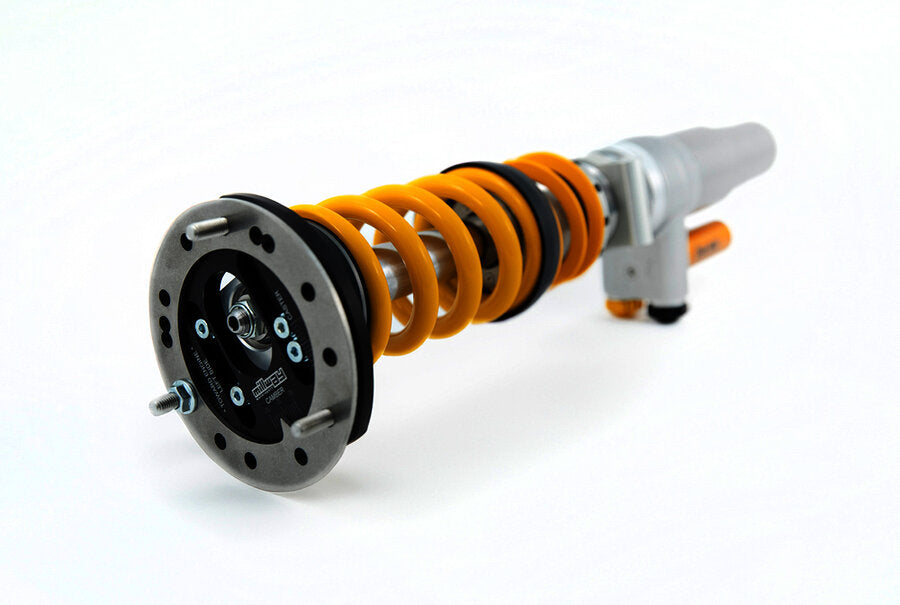

Used with fully adjustable camber & caster top mounts, with spherical bearings, specially
designed by Öhlins & Millway
Adjustable drop links with uniball
Upgradeable to 3-, 4 & 5-way adjustable including blow-off valve

REAR FEATURES

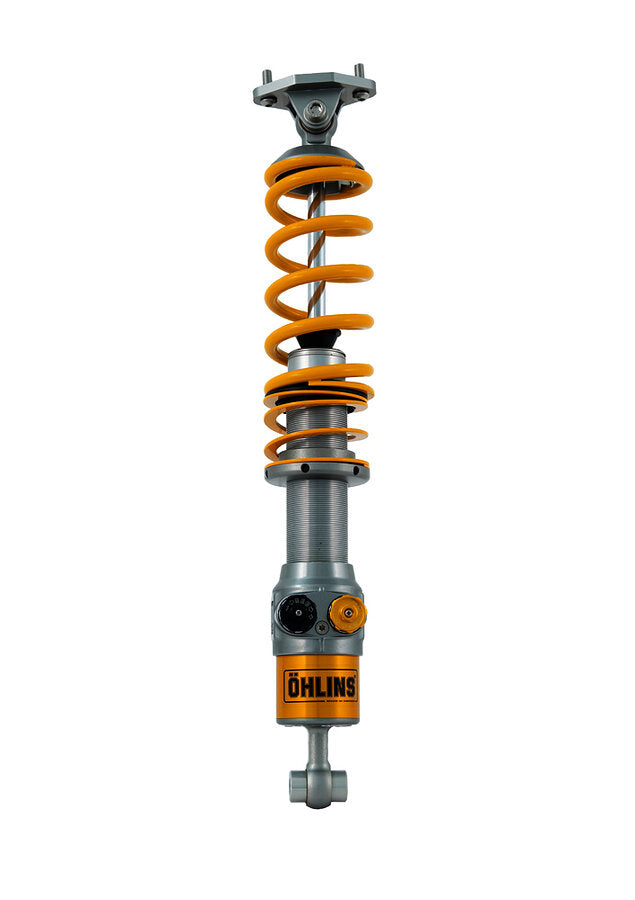

Aluminum high strength, light-weight compact design shock absorber
Coilovers (advised to strengthen the chassis by installing reinforcements such as an X-brace or a roll cage)

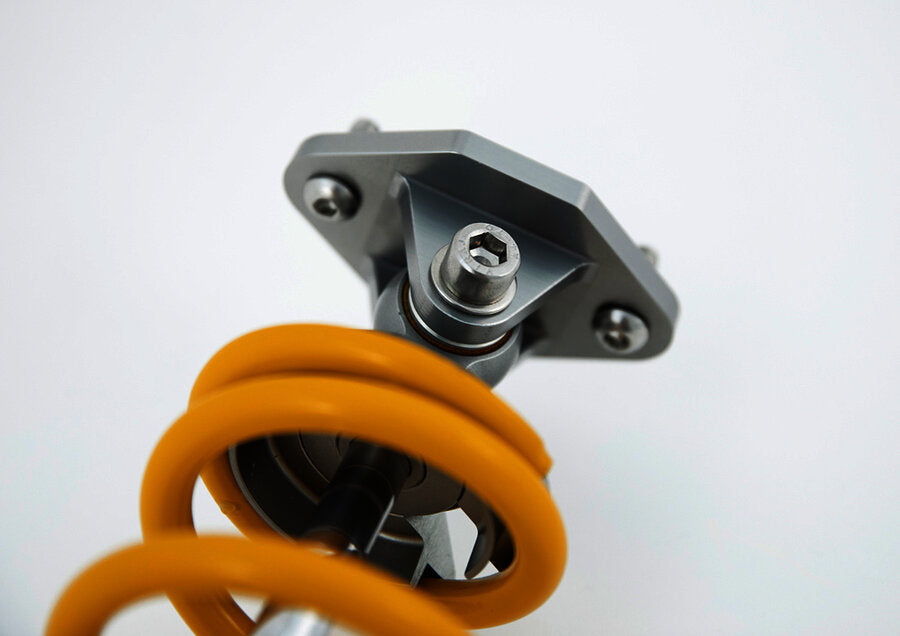

Clevis design rear aluminum top mounts with spherical bearings
Upgradeable to 3- or 4-way adjustable

PURCHASED PARTS PACKAGE
Damper set
C-Spanner (for spring preload adjustment)
Owners manual and mounting instructions
Sticker set

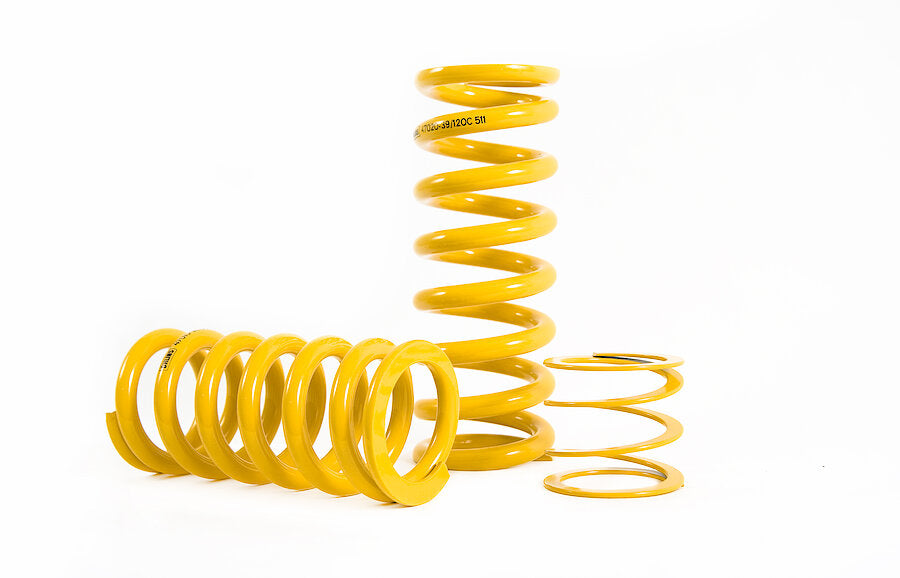

RECOMMENDED SPRINGS
Main front - 130 N/mm - 48140-23
Helper front - 7,5 N/mm - 05173-12
Main rear - 60 N/mm - 48200-09
Helper rear - 7,5 N/mm - 05173-12

ADDITIONAL NOTES
The BMW MU01 kit is exclusively designed to work with the front top mounts from Millway. As a result, it should not be used in conjunction with top mounts from any other brand. This goes for the rear top mounts as well.
For alternative spring options, please contact us.
