FITMENT BMW 1M (E82) 2011–2012 BMW M3 Sedan (E90) 2007–2013 BMW M3 Coupe (E92) 2007–2013
GENERAL FEATURES Race-proven Ohlins Twin-Tube technology (TTX) Separate adjustment for compression and rebound damping, i.e 4-way damping adjustment Aluminum high strength and light-weight design Top mounts specially designed by Öhlins & Millway Tested and validated for multi-compound tyres (semi-slick) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty

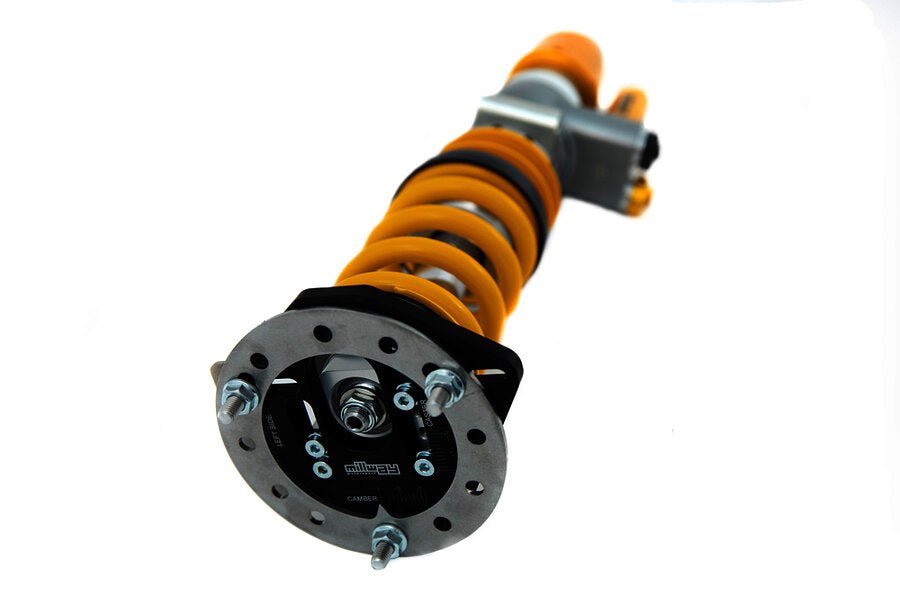

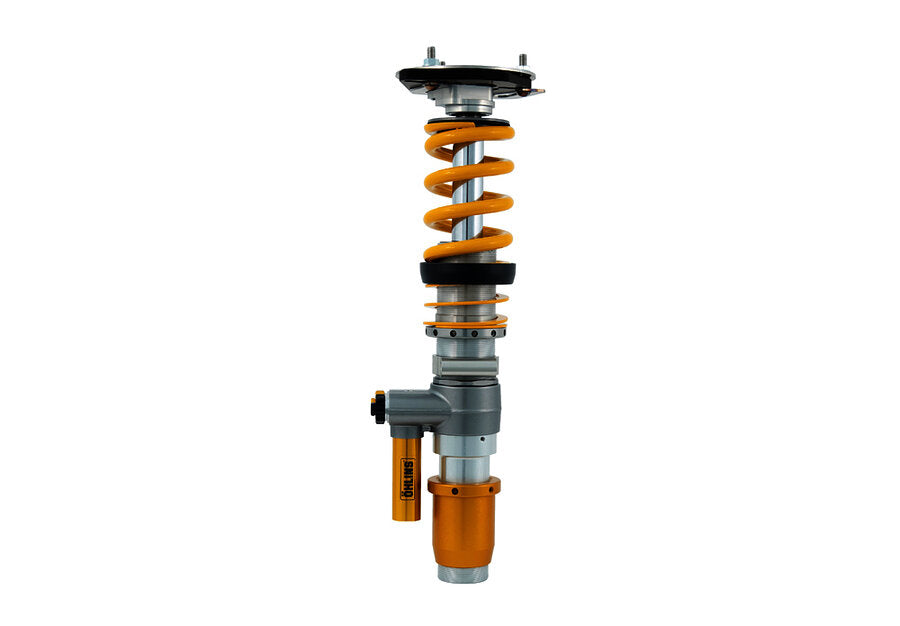

FRONT FEATURES TTX46 McPherson shock absorber with external reservoir 46 mm solid main piston Compression and rebound damping adjustment in high and low speed Spring preload adjuster Separate length adjuster Approx. 20 mm lower with recommended setting Spring rate 150 N/mm Adjustable uniball aluminum top mounts

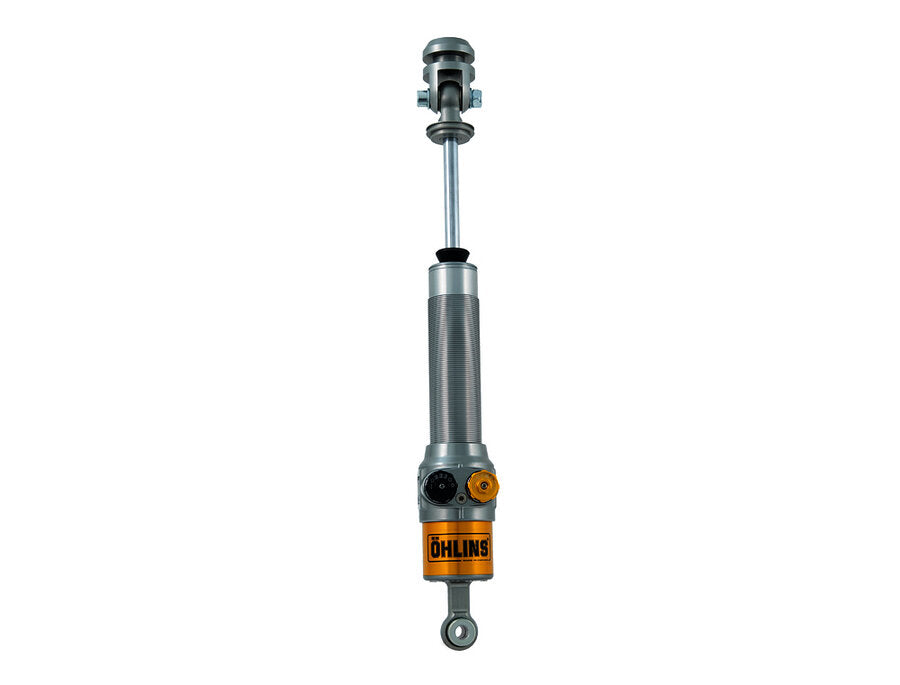

REAR FEATURES ILX36 shock absorbers with internal reservoir 36 mm solid main piston Compression and rebound damping adjustment in high and low speed Spring preload adjuster Separate length adjuster Approx. 20 mm lower with recommended setting Spring rate 200 N/mm Uniball aluminum top mounts
PURCHASED PARTS PACKAGE Coilover kit including springs and mounting parts C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set
ADDITIONAL NOTES For alternative spring options, please contact us.
