ALV GY10
FITMENT
Alpine A110 (AEF) 2017–
Alpine A110 GT (AEF) 2017–
Alpine A110 S (AEF) 2017–
GENERAL FEATURES
TTX, a true twin tube design for cavitation free damping performance
4-way fully independent rebound and compression adjustment
Aluminum high strength & light-weight parts
Rebuildable
2 year limited warranty
Height adjustable – approx. 20 mm lower than standard
FRONT FEATURES

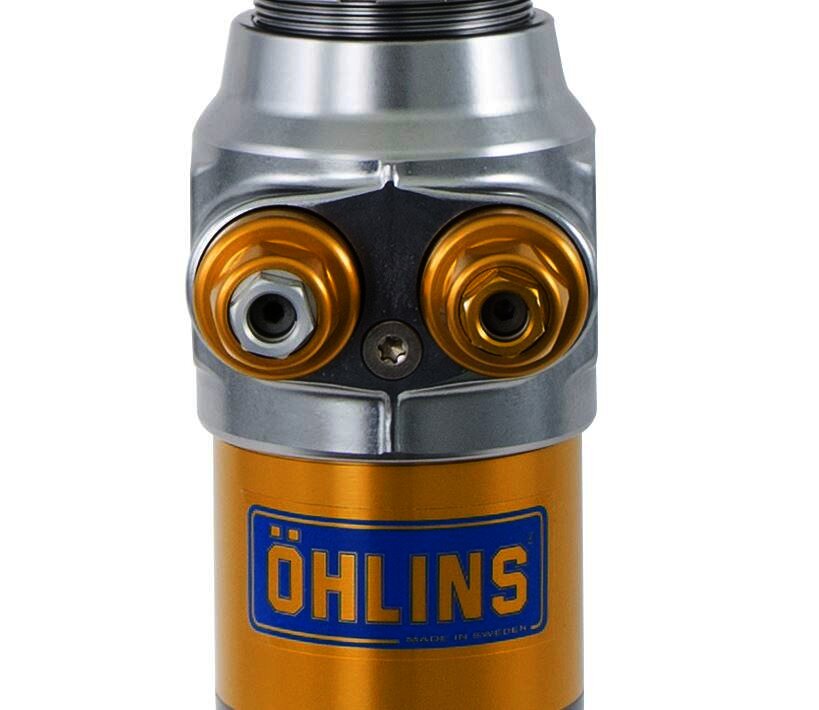

TTX36 shock absorbers with internal gas reservoir, 36 mm piston
Compression and rebound damping adjustment in high and low speed
Spring preload adjuster
Spring rate 38 N/mm
Approx. 20 mm lower with recommended setting
REAR FEATURES
ILX36 shock absorbers with internal reservoir, 36 mm piston
Compression and rebound damping adjustment in high and low speed
Spring preload adjuster
Spring rate 80 N/mm
Approx. 20 mm lower with recommended setting
PURCHASED PARTS PACKAGE
Coilover kit including springs and mounting parts
C-Spanner (for spring preload adjustment)
Owners manual and mounting instructions
Sticker set

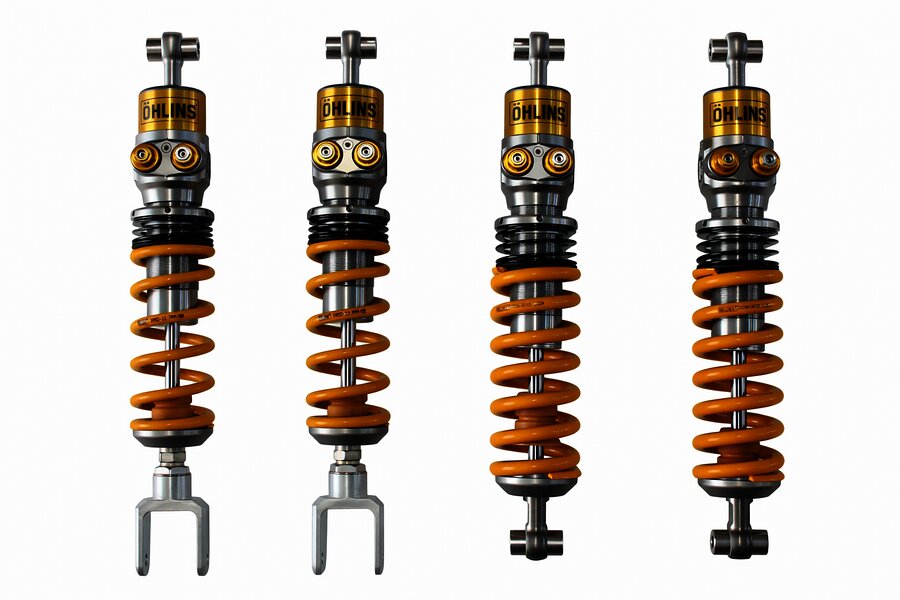

Öhlins Advanced Track Coilover Suspension Alpine A110 (AEF) ALV GY10
