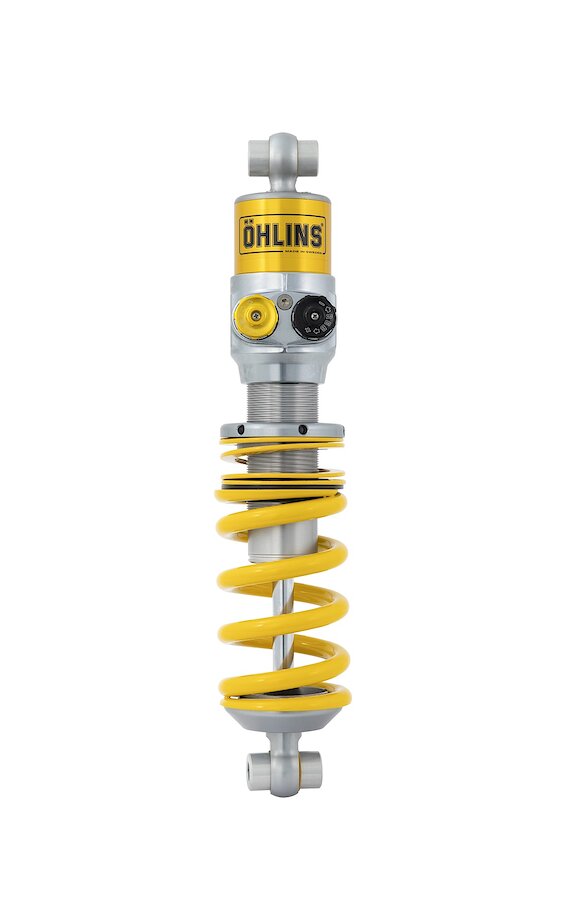

Öhlins Advanced Trackday Coilover Suspension Audi R8 (4S) AUV MT00

AUV MT00

FITMENT
Audi R8 V10 (4S) 2015–2024
Audi R8 V10 Plus (4S) 2015–2024
Audi R8 V10 Performance (4S) 2019–2024
Audi R8 V10 RWS (4S) 2017–2018
Audi R8 V10 RWD (4S) 2019–2024
Audi R8 Spyder (4S) 2016–2024
Lamborghini Huracán LP610-4 (LB724) 2014–2019
Lamborghini Huracán LP580-2 (LB724) 2016–2019
Lamborghini Huracán Performante (LB724) 2017–2019
Lamborghini Huracán EVO (LB724) 2019–2024
Lamborghini Huracán Tecnica (LB724) 2022–2024
Lamborghini Huracán STO (LB724) 2021–2024
Lamborghini Huracán Avio (LB724) 2016–2017

GENERAL FEATURES
Twin-Tube technology (TTX)
Separate adjustment for compression and rebound damping
Height adjustable
Rebuildable
Upgradeable to 3- or 4-way adjustable
Corrosion salt spray tested (ISO 9227)
2 year warranty
Springs ordered separately

FRONT FEATURES

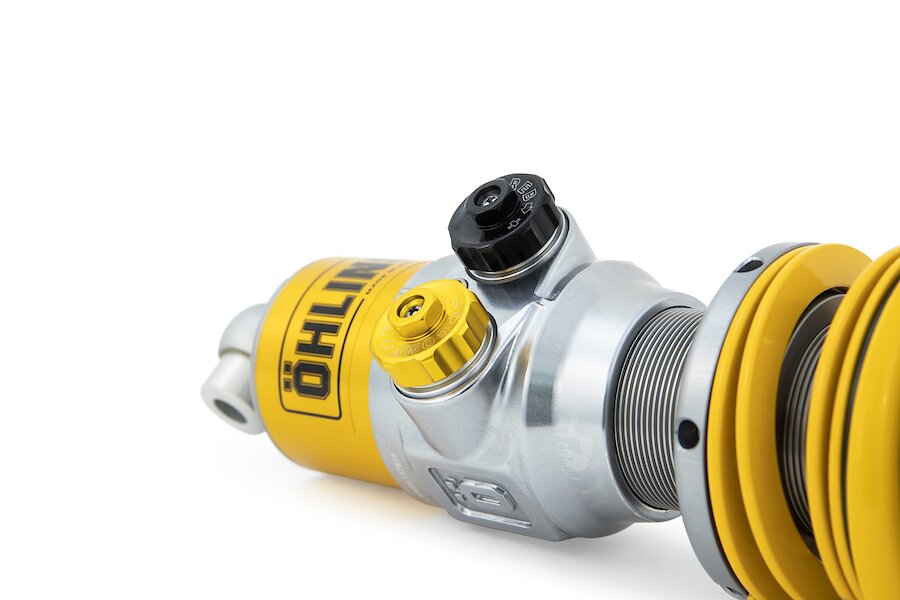

TTX36 twin-tube shock absorber
Separate compression and rebound adjustment
Spring preload adjuster
Height adjustable (approx. 0 to -10 mm lower than standard)

REAR FEATURES
TTX36 twin-tube shock absorber
Separate compression and rebound adjustment
Separate spring preload adjuster
Height adjustable (approx. 0 to -10 mm lower than standard)

PURCHASED PARTS PACKAGE
Damper set
C-Spanner (for spring preload adjustment)
Owners manual and mounting instructions
Sticker set

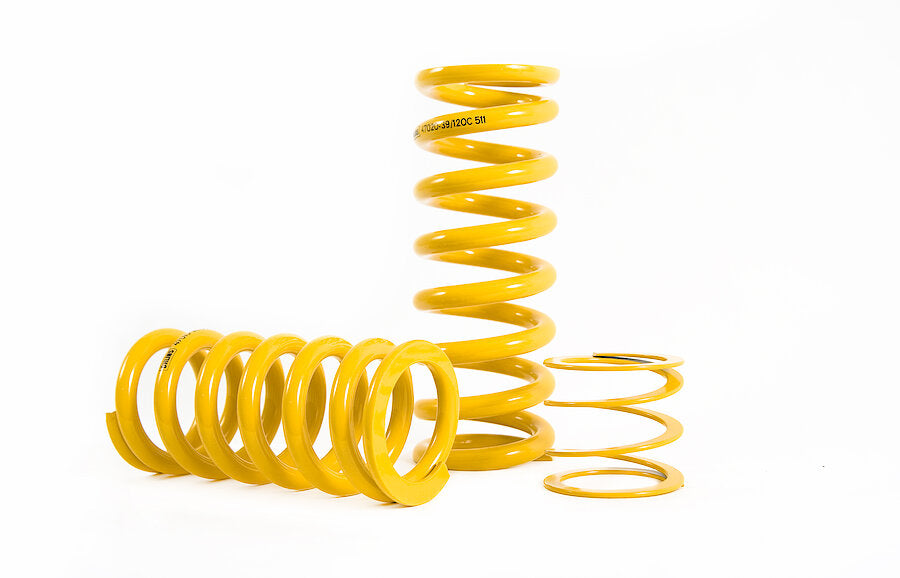

RECOMMENDED SPRINGS
Main front - 160 N/mm - 48140-29
Helper front - 7,5 N/mm - 05173-12
Main rear - 160 N/mm - 48140-29
Helper rear - 7,5 N/mm - 05173-12

ADDITIONAL NOTES

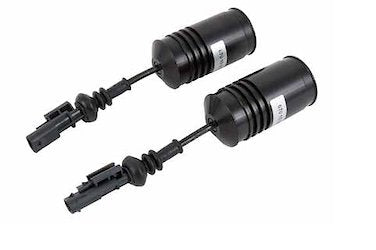

To remove DTCs from Audi R8 (4S), equipped with Audi Magnetic Ride, option code 1N8/2MN, Öhlins is offering EDC Cancellation kit, part nr 35020-28 (not included).
Vehicles equipped with OE lift system is not supported and needs to be deactivated.
For alternative spring options, please contact us.
