Part no. 2L-LP-PL-120

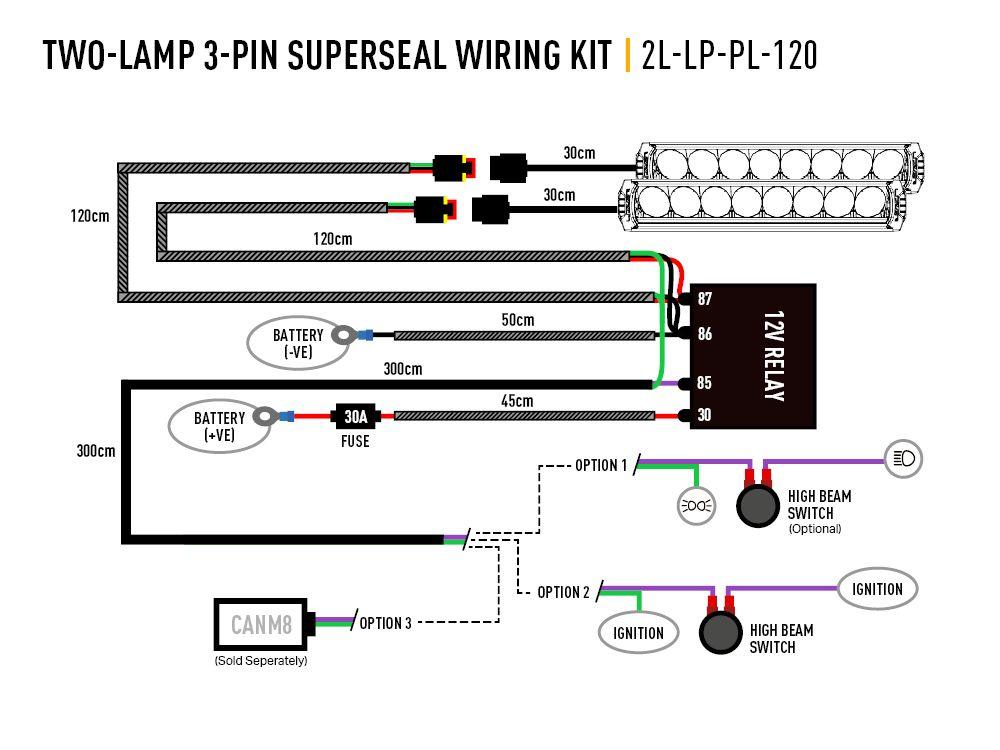

Two-Lamp wiring kit for Lazer Lamps High Performance LED lights. The setup is quick, easy, and reliable with 3-pin Superseal connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 1.2m of flex on the lamp cable, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle.
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.
Compatible with:
Not suitable for: 2x Triple-R 1250 (with Position Light), 2x Linear-18 Elite (with Position Light) and 2x Sentinel 9'' Elite (with Position Light). To power two of these lights, please use the 'Mid Power' Two Lamp Wiring Kit (2L-MP-PL-120).
Specifications:
Two-Lamp Wiring Kit for Lazer High Performance LED Lights (see product text for compatibility)
1.2m cable lengths
Includes 12V relay and 30 amp fuse
Relay holder approved to IP53 when mounted in a vertical (upright) orientation
Superseal connections
Includes optional on/off switch for independent operation of high beam
Braided cable sections for added protection in engine bay
