Lazer Two-Lamp Harness Kit with ITT Connector (4-Pin, Deutsch DT, 12V) for Carbon-6

Part no. 2L-CS-200

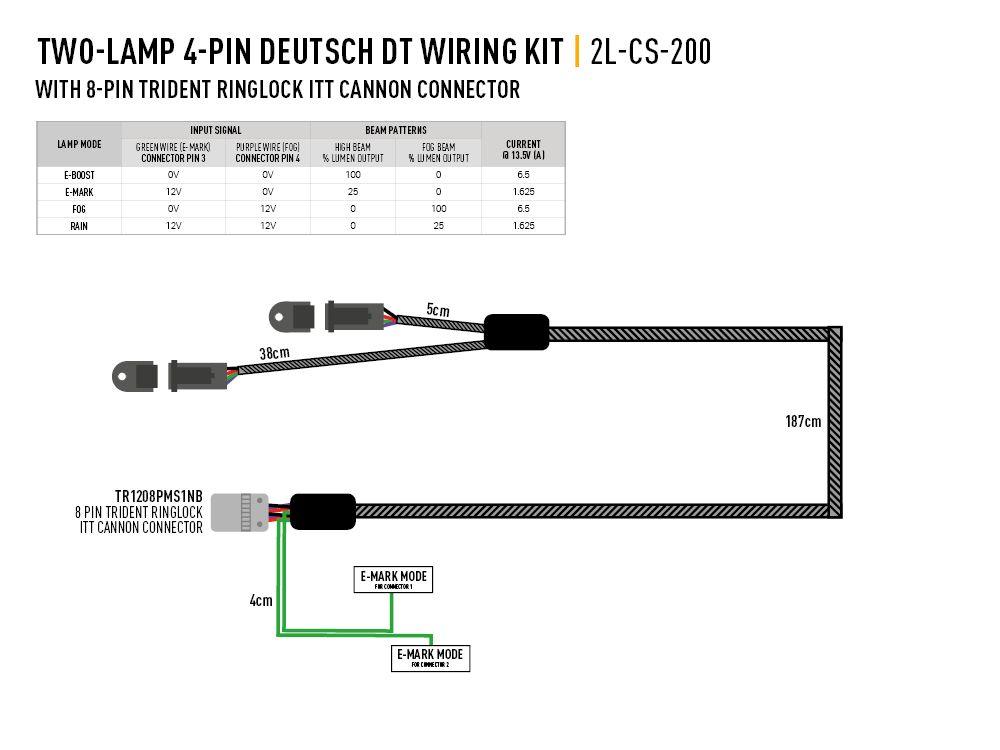

The ideal solution for wiring 2x Lazer Carbon-6 (Gen3) High Performance LED Driving Lights, where the vehicle side connection is compatible with an ITT Cannon Connector. The resulting setup is quick, easy, and reliable with Deutsch DT06-4S lamp connectors and no configuration procedures. The kit features 1.85m of flex on the lamp cable(s) to the 8-pin Trident Ringlock ITT Cannon Connector (compatible with Skoda R5 rally cars as an example)

Additional signal wires from the ITT Connector are included for operation of lamps’ in ‘E-mark’ mode (green wires).

All Carbon-6 (Gen3) LED Driving Lights feature a corresponding built-in DT04-4P Deutsch Connector (with gold plated solid DT contacts).

Compatiable with:- Carbon-6 DRIVE (Gen3)- Carbon-6 SPOT (Gen3)

Specifications

• Two-Lamp Wiring Kit for Carbon-6 (Gen3) LED spotlights
• 2m cable length
• ITT Connector connections
• Additional extension cables for E-Mark mode
• Braided cable sections for added protection in engine bay
