Part no. GK-VWA-G2-01K/GK-VWA-ELITE-G2-01K
For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

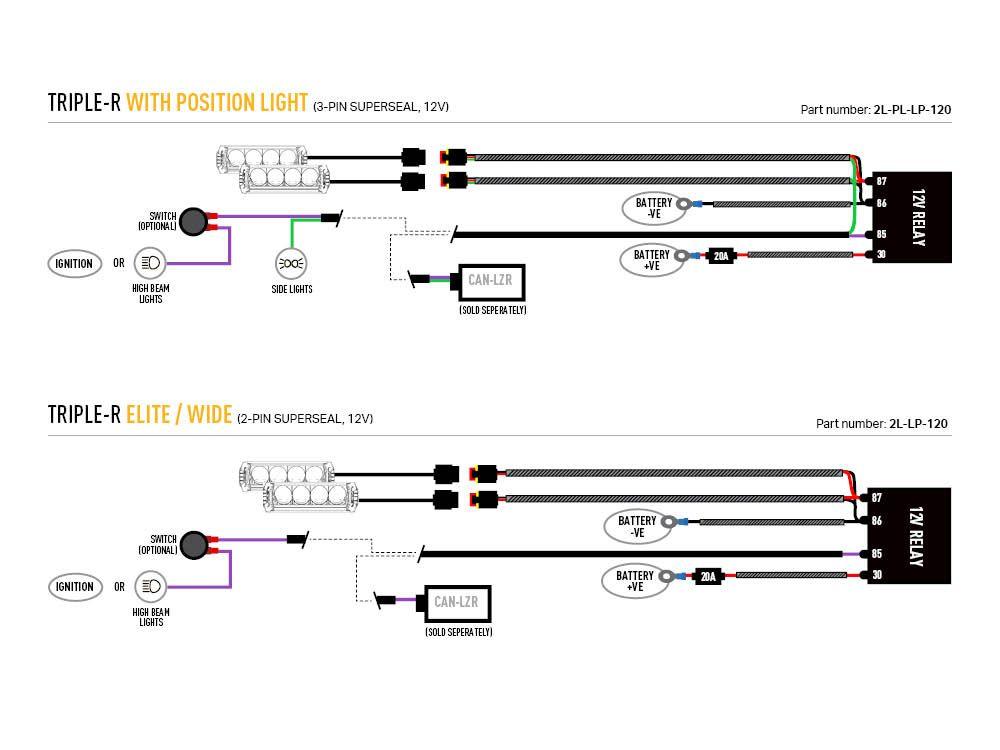

The VW Amarok kit, designed for MY16 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.

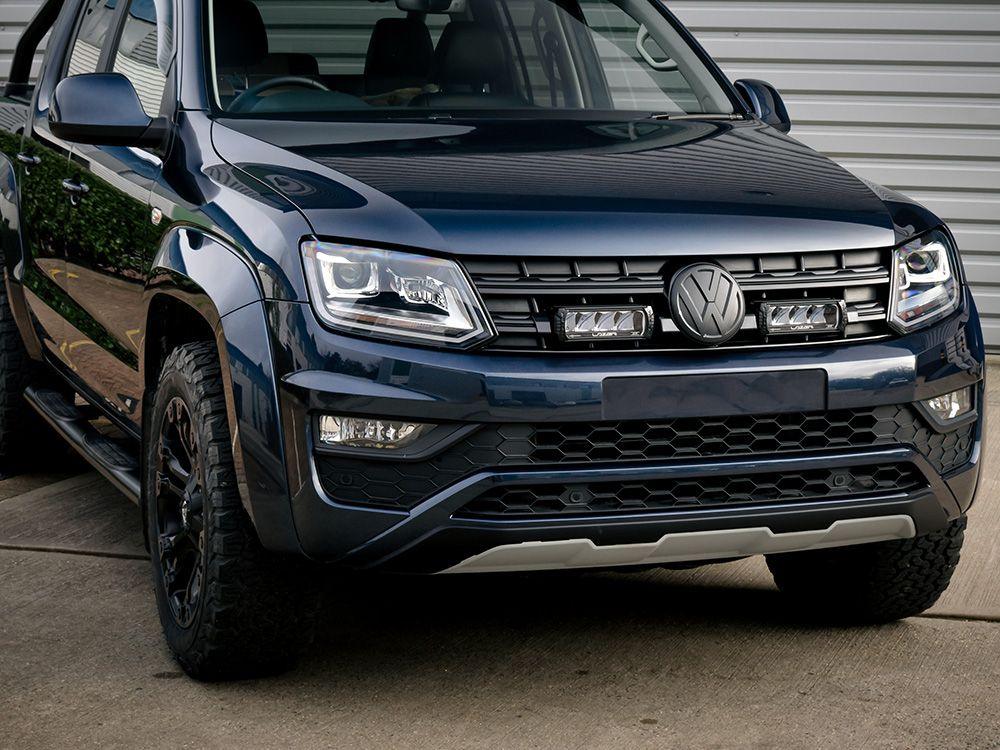

The VW Amarok (2016-2022) Grille Integration Kits are optimised for use with Triple-R 750 High Performance LED lights.
Specifications:
|
2x |
2x Triple-R 750 Elite (E-Boost Mode) |
|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 2 kg | 2 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 9240 Lm |
10136 Lm |
| Total Driver 'FOV' Flux † | 5572 Lm | 6680 Lm |
| Colour Temperature | 5000K | 5000K |
| Number of High Output LEDs | 2 x 4 | 2 x 4 |
| Power Consumption | 88 Watts | 104 Watts |
| Current Draw (at 14.4V) | 6.2 Amps | 7.2 Amps |
| CERTIFICATION | ||
| High Beam | ECE R112 | ECE R112 |
| ECE Reference | 35 x2 |
N/A |
| Position Light (White only) | ECE R7 | N/A |
| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 19° | 42° |
| 0.25 lx Line | 1225m | 1358m |
| 0.5 lx Line | 866m | 960m |
| 1 lx Line | 612m | 679m |
| 3 lx Line | 354m | 392m |
Approved for road use: Yes |
