Not in stock, available to order
Part no. GK-LC70-01K
For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits are custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.
The Toyota Land Cruiser 70 Series (2007-2023) integration kit includes a pair of ST4 Evolution High Performance LED driving lights, perfectly suited for all types of on and off-road driving. The kit includes wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by supplied anti-theft self-tapping screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
SPECIFICATIONS
| x2 ST4 Evolution | |
|---|---|
| Voltage Range | 10-32V |
| LED life | 50,000 hours |
| Weight | 1.34 kg |
| High beam function | |
| Total luminous flux | 8272 lm |
| Total driver 'FOV' flux † | 4980 lm |
| Colour temperature | 5000K |
| Number of high-output LEDs | 2 x 4 |
| Power consumption | 94 W |
| Current draw (at 14.4V) | 6.6 A |
| Certification | |
| High beam | ECE R112 |
| E-mark ref | 10 x2 |
| Photometric data | |
| Horizontal beam angle | 40° |
| 0.25 lx line | 786m |
| 0.5 lx line | 555m |
| 1 lx line | 393m |
| 3 lx line | 227m |
WHAT'S INCLUDED
1 × Grille Mounting Kit (Includes cutting guides)
2 × ST4 Evolution LED Lamps

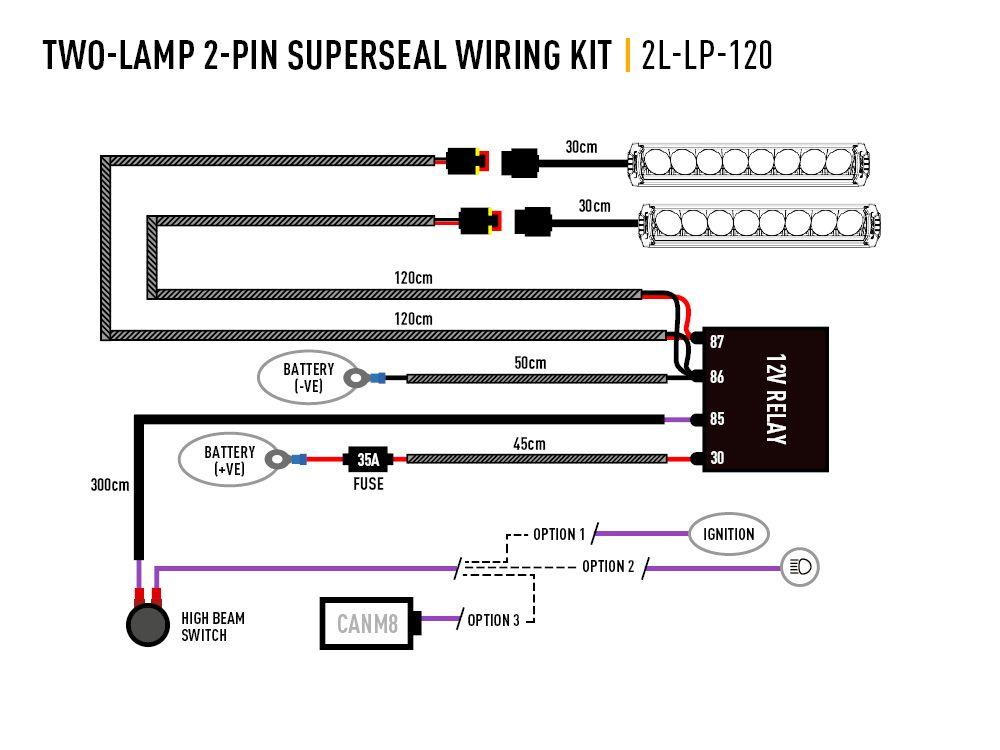

1 × Two-Lamp Wiring Kit
Installation instructions
Road approval: Yes

Lazer ST4 Evolution Grille Kit for Toyota Land Cruiser 70 Series (2007-2023)
