Part no. GK-R1500-01K/GK-R1500-ELITE-01K
For an OE quality, auxiliary high beam driving light installation, the Lazer Grille Integration Kits include custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED driving lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting road-legal lighting setup remains fully robust and secure, while delivering night-time visibility that leaves little to the imagination.

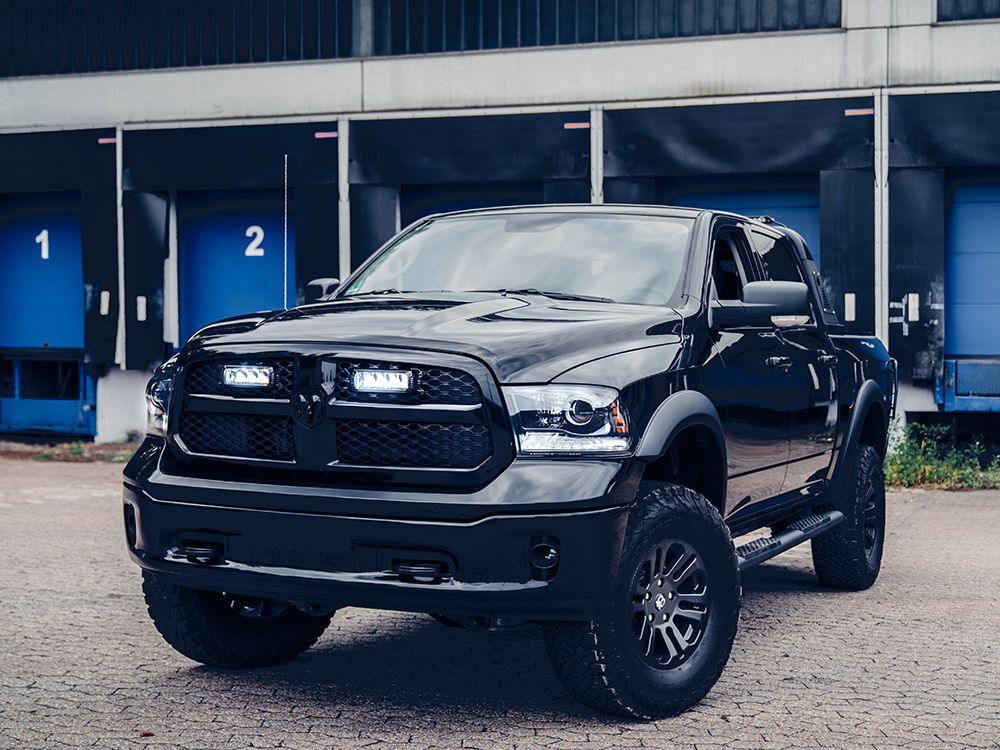

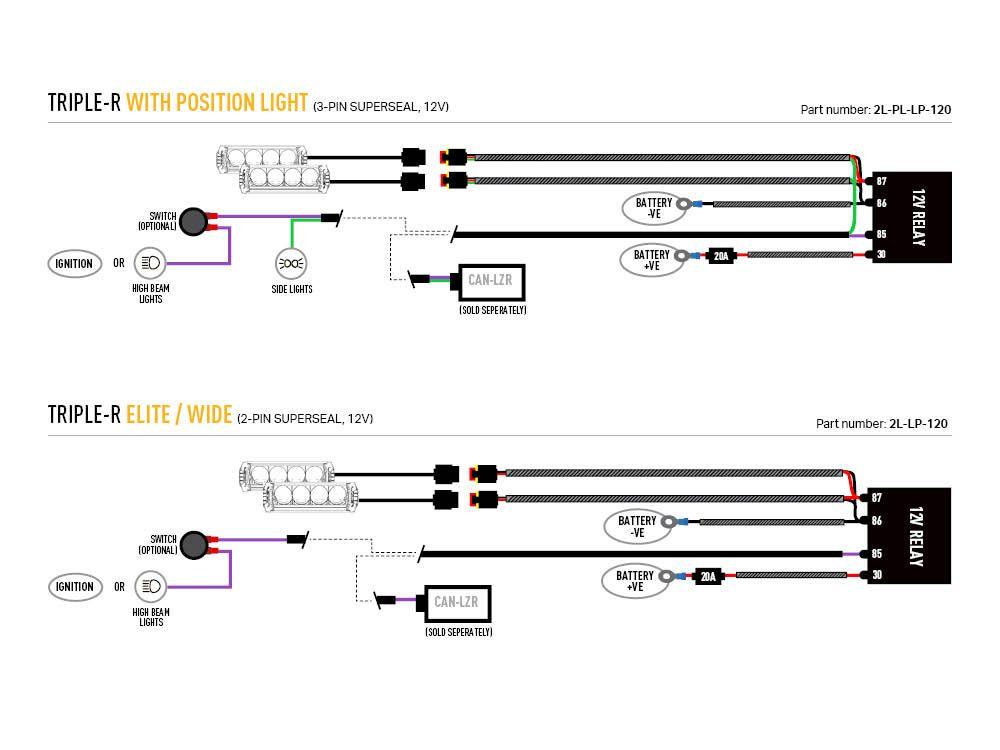

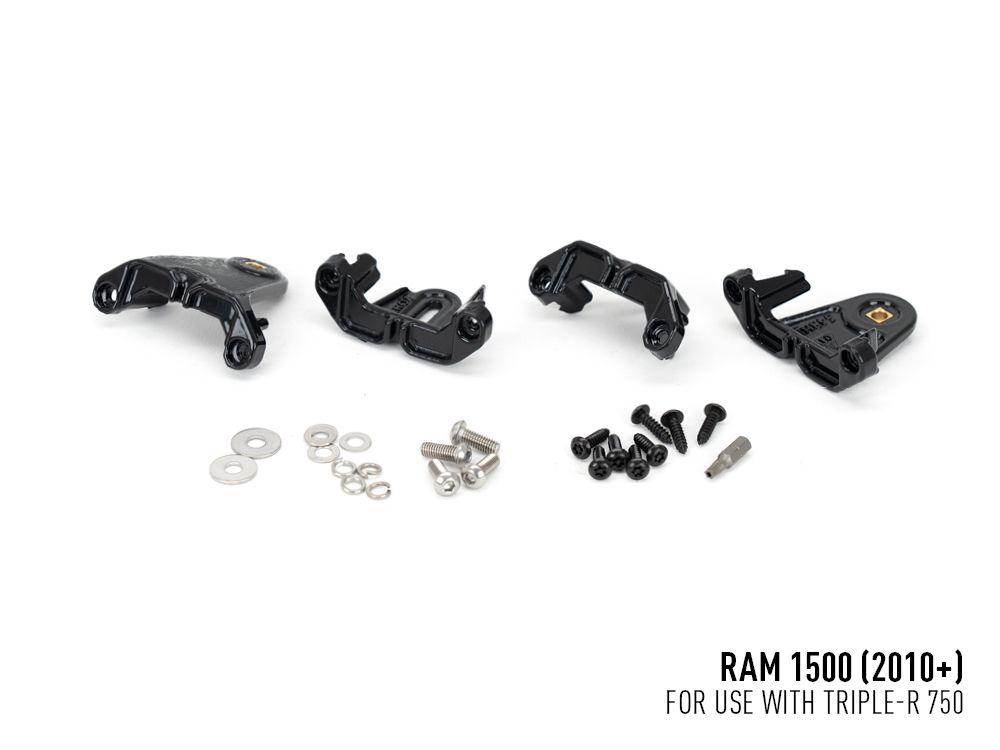

The RAM 1500 DS Series with Classic Trim kit, designed and engineered for model year 2013+ vehicles, features a pair of Triple-R 750 (Standard or Elite) High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Specifications:
2x |
2x Triple-R 750 Elite (E-Boost Mode) |
|
Voltage Range (DC) | 10-32V | 10-32V |
LED Life | 50,000 hrs | 50,000 hrs |
Weight | 2 kg | 2 kg |
HIGH BEAM FUNCTION | ||
Total Luminous Flux | 9240 Lm |
10136 Lm |
Total Driver 'FOV' Flux † | 5572 Lm | 6680 Lm |
Colour Temperature | 5000K | 5000K |
Number of High Output LEDs | 2 x 4 | 2 x 4 |
Power Consumption | 88 Watts | 104 Watts |
Current Draw (at 14.4V) | 6.2 Amps | 7.2 Amps |
CERTIFICATION | ||
High Beam | ECE R112 | ECE R112 |
ECE Reference | 35 x2 |
N/A |
Position Light (White only) | ECE R7 | N/A |
PHOTOMETRIC DATA | ||
Horizontal Beam Angle | 19° | 42° |
0.25 lx Line | 1225m | 1358m |
0.5 lx Line | 866m | 960m |
1 lx Line | 612m | 679m |
3 lx Line | 354m | 392m |
Approved for road use: Yes |
