Part no. GK-Y62-G2-01K/GK-Y62-ELITE-G2-01K
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits are bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.

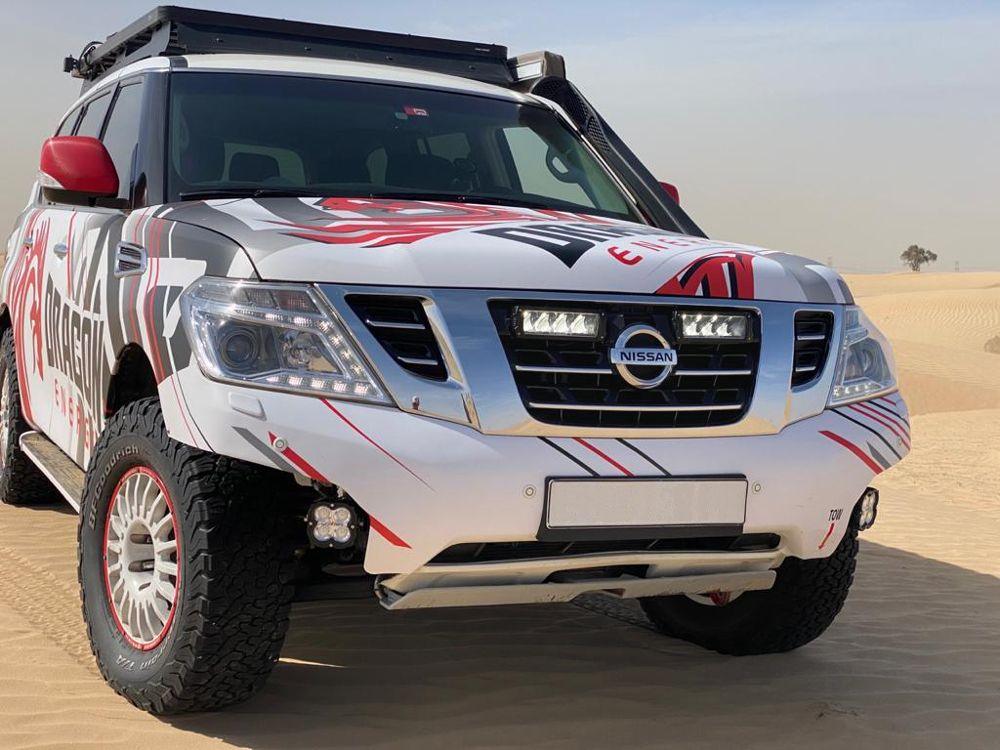

The Nissan Patrol Y62 kit, designed for series 4 (2018-2019) vehicles, features 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Specially manufactured from a carbon-fibre and nylon composite material (CF-PA12), material specially selected for the Y62 to withstand extremes of temperature, the brackets provide excellent strength and UV stability, to ensure your installation is fully weather and chemical resistant staying in great condition year after year.
Specifications:
|
2x |
2x Triple-R 750 Elite (E-Boost Mode) |
|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 2 kg | 2 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 9240 Lm |
10136 Lm |
| Total Driver 'FOV' Flux † | 5572 Lm | 6680 Lm |
| Colour Temperature | 5000K | 5000K |
| Number of High Output LEDs | 2 x 4 | 2 x 4 |
| Power Consumption | 88 Watts | 104 Watts |
| Current Draw (at 14.4V) | 6.2 Amps | 7.2 Amps |
| CERTIFICATION | ||
| High Beam | ECE R112 | ECE R112 |
| ECE Reference | 35 x2 |
N/A |
| Position Light (White only) | ECE R7 | N/A |
| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 19° | 42° |
| 0.25 lx Line | 1225m | 1358m |
| 0.5 lx Line | 866m | 960m |
| 1 lx Line | 612m | 679m |
| 3 lx Line | 354m | 392m |
Approved for road use: Yes |
