Part no. 00R4-G2-EL-B
The latest generation of the Triple-R range, delivers exceptional, long-range auxiliary LED automotive lighting. Initially developed for the uncompromising requirements of professional track and rally motorsport, the range has evolved to become a firm favourite across the passenger car, 4x4, light commercial, and heavy truck market, both on and off-road. Recent additions to the Triple-R range boast innovative features and functionality, including patent-pending technology never seen before in an auxiliary LED light bar.
Incorporating an arrangement of high efficiency, premium ‘bin’ LEDs at a carefully selected 5000K colour temperature, with 80CRI for high levels of sharpness and clarity, the Triple-R Elite products represent our most powerful driving lights. The electronics and optic design work in combination to deliver incredible distance illumination, yet still with enviable left/right spread. The comparatively low up/down spread of light emitted from the Elite lights ensures their suitability when roof mounting, avoiding reflective glare off the vehicle bonnet.
Standard level products feature integrated (optional) white and/or amber position light function for added styling and safety benefits. Alongside the premium design of the lights themselves, you can be sure your Triple-R product will impress even before the sun goes down! High efficiency 11W LEDs deliver impressive distance illumination albeit with not quite the same left/right visibility that you otherwise find with the equivalent Elite level products. A slightly taller up/down spread does however ensure suitability when mounting high on a vehicle such as a truck cab or roof of a van or other light commercial vehicle.
Specifications:

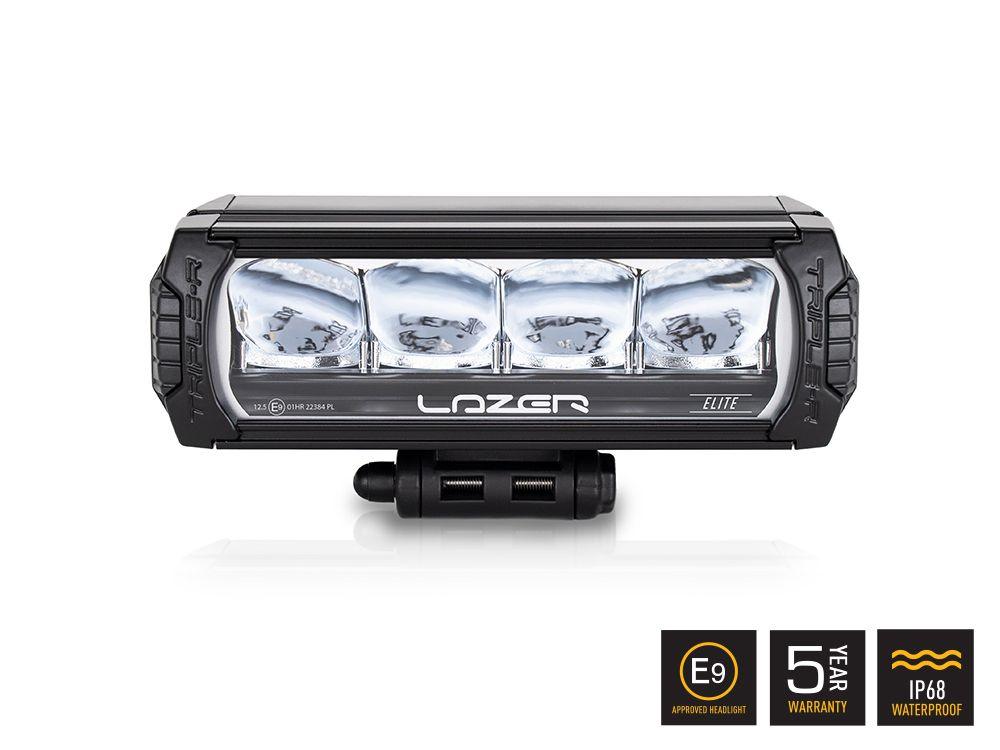

Based on: 1x Triple-R 750 Elite.
|
Boost Mode |
Low Output Mode | |
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 1 kg | 1 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux |
5068 Lm |
1267 Lm |
| Total Driver 'FOV' Flux † | 3340 Lm | 835 Lm |
| Colour Temperature | 5000k | 5000k |
| Number of High Output LEDs | 4 | 4 |
| Power Consumption | 45 Watts | 11.5 Watts |
| Current Draw (at 14.4V) | 3.1 Amps | 0.8 Amps |
| CERTIFICATION | ||
| High Beam | N/A | ECE R112 |
| E-Mark Ref | N/A | 12.5 |
| PHOTOMETRIC DATA | ||
| Horiz Beam Angle | 42 Deg | 42 Deg |
| 0.25 lx Line | 1033 metres | 462 metres |
| 0.5 lx Line | 731 metres | 327 metres |
| 1 lx Line | 517 metres | 231 metres |
| 3 lx Line | 298 metres | 133 metres |
Approved for road use: *Yes (12,5) |
| *Lamp uses E-BOOST technology. It is approved for road use (E-mark on the lens), but includes an off-road 'dual-output' function which increases intensity of light for when the vehicle is off-road. |
