Part no. 00R4-G2-B
The latest generation of the Triple-R range, delivers exceptional, long-range auxiliary LED automotive lighting. Initially developed for the uncompromising requirements of professional track and rally motorsport, the range has evolved to become a firm favourite across the passenger car, 4x4, light commercial, and heavy truck market, both on and off-road. Recent additions to the Triple-R range boast innovative features and functionality, including patent-pending technology never seen before in an auxiliary LED light bar.
Incorporating an arrangement of high efficiency, premium ‘bin’ LEDs at a carefully selected 5000K colour temperature, with 80CRI for high levels of sharpness and clarity, the Triple-R Elite products represent our most powerful driving lights. The electronics and optic design work in combination to deliver incredible distance illumination, yet still with enviable left/right spread. The comparatively low up/down spread of light emitted from the Elite lights ensures their suitability when roof mounting, avoiding reflective glare off the vehicle bonnet.
Standard level products feature integrated (optional) white and/or amber position light function for added styling and safety benefits. Alongside the premium design of the lights themselves, you can be sure your Triple-R product will impress even before the sun goes down! High efficiency 11W LEDs deliver impressive distance illumination albeit with not quite the same left/right visibility that you otherwise find with the equivalent Elite level products. A slightly taller up/down spread does however ensure suitability when mounting high on a vehicle such as a truck cab or roof of a van or other light commercial vehicle.

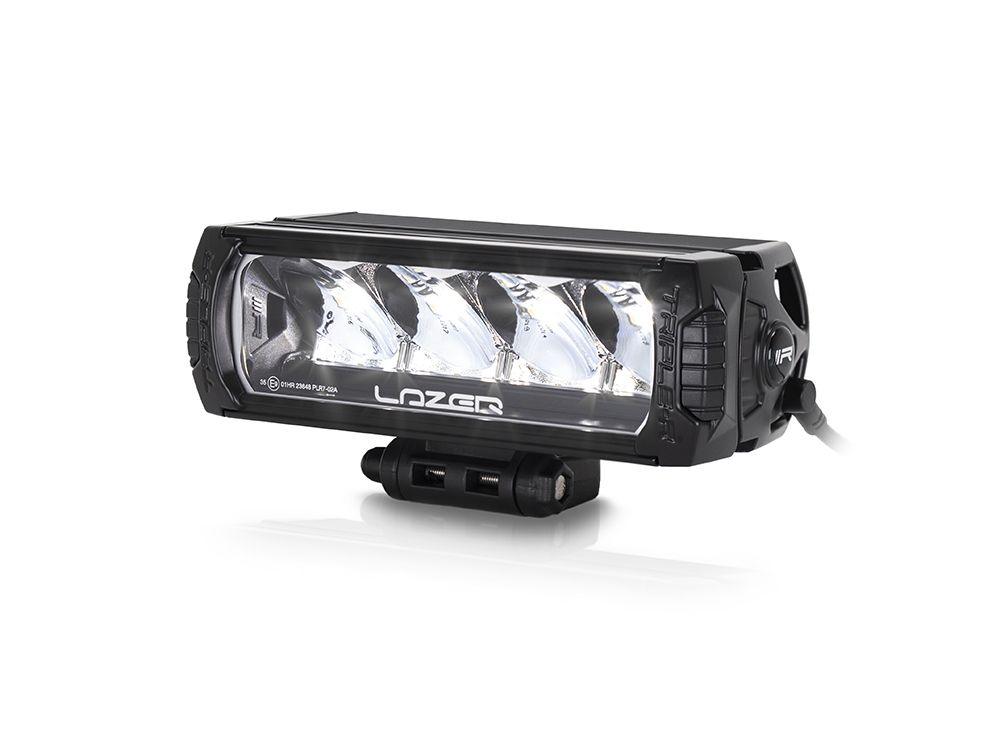

Based on: 1 × Triple-R 750.
| Voltage range (DC) | 10-32V |
|---|---|
| LED life | 50,000 hours |
| Weight | 1 kg |
| High beam function | |
| Total luminous flux | 4620 lm |
| Total driver 'FOV' flux † | 2786 lm |
| Colour temperature | 5000K |
| Number of high-output LEDs | 4 |
| Power consumption | 45 W |
| Current draw (at 14.4V) | 3.1 A |
| Certification | |
| High beam | ECE R112 |
| E-mark ref | 35 |
| Position light (white) | ECE R7 |
| Photometric data | |
| Horizontal beam angle | 19 ° |
| 0.25 lx line | 866 m |
| 0.5 lx line | 612 m |
| 1 lx line | 433 m |
| 3 lx line | 250 m |
Road approval: Yes (35)
