The latest generation of the Triple-R range, delivers exceptional, long-range auxiliary LED automotive lighting. Initially developed for the uncompromising requirements of professional track and rally motorsport, the range has evolved to become a firm favourite across the passenger car, 4x4, light commercial, and heavy truck market, both on and off-road. Recent additions to the Triple-R range boast innovative features and functionality, including patent-pending technology never seen before in an auxiliary LED light bar.
Incorporating an arrangement of high efficiency, premium ‘bin’ LEDs at a carefully selected 5000K colour temperature, with 80CRI for high levels of sharpness and clarity, the Triple-R Elite products represent our most powerful driving lights. The electronics and optic design work in combination to deliver incredible distance illumination, yet still with enviable left/right spread. The comparatively low up/down spread of light emitted from the Elite lights ensures their suitability when roof mounting, avoiding reflective glare off the vehicle bonnet.
SPECIFICATIONS Based on: 1 × Triple-R 28 Elite LED lightbar.
Voltage range (DC)
10-32V
LED life
50,000 hours
Weight
5.1 kg
High beam function
Total luminous flux
28560 lm
Total driver 'FOV' flux †
18821 lm
Colour temperature
5000K
Number of high-output LEDs
28
Power consumption
326 W
Current draw (at 14.4V)
22.6 A
Certification
High beam
N/A
E-mark ref
N/A
Photometric data
Horizontal beam angle
30 °
0.25 lx line
2506 m
0.5 lx line
1772 m
1 lx line
1253 m
3 lx line
724 m
WHAT'S INCLUDED
1 × Triple-R 28 Elite LED Lamp
3 × Centre Mount (1114K)
1 × Side Mount Kit (1118K)

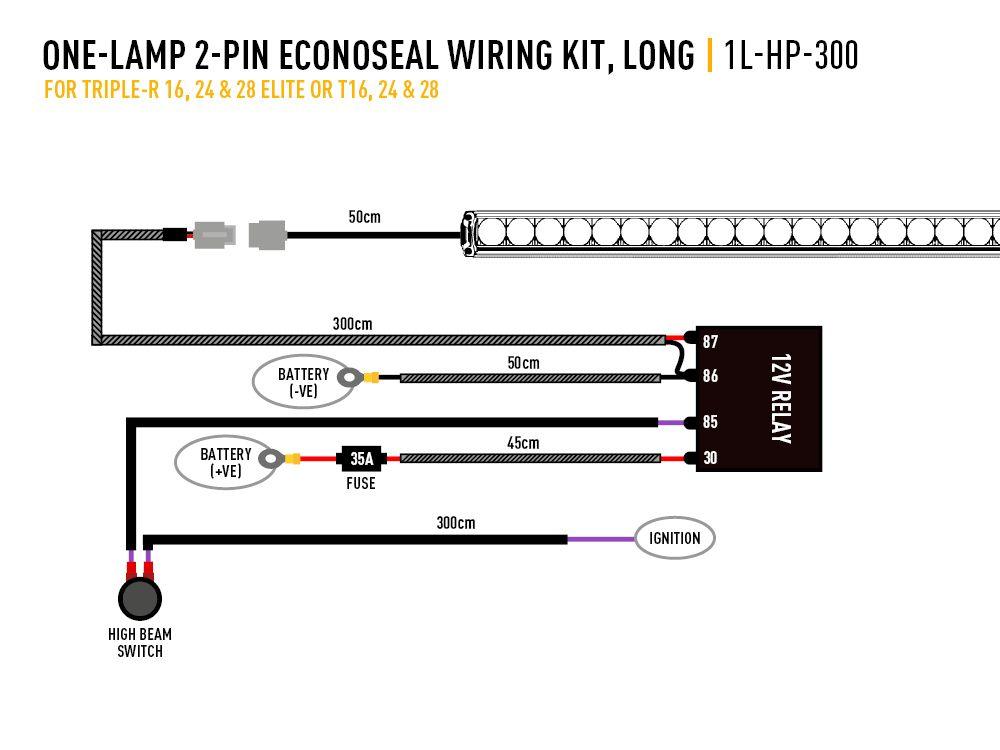

1 × Single-Lamp Wiring Kit with Switch (1L-HP-300)
Installation instructions
