Part no. 00R24-G2-EL-B
The latest generation of the Triple-R range, delivers exceptional, long-range auxiliary LED automotive lighting. Initially developed for the uncompromising requirements of professional track and rally motorsport, the range has evolved to become a firm favourite across the passenger car, 4x4, light commercial, and heavy truck market, both on and off-road. Recent additions to the Triple-R range boast innovative features and functionality, including patent-pending technology never seen before in an auxiliary LED light bar.
Incorporating an arrangement of high efficiency, premium ‘bin’ LEDs at a carefully selected 5000K colour temperature, with 80CRI for high levels of sharpness and clarity, the Triple-R Elite products represent our most powerful driving lights. The electronics and optic design work in combination to deliver incredible distance illumination, yet still with enviable left/right spread. The comparatively low up/down spread of light emitted from the Elite lights ensures their suitability when roof mounting, avoiding reflective glare off the vehicle bonnet.
Specifications:
Based on: 1x Triple-R 24 Elite LED lightbar.
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hrs |
| Weight | 4.5 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux |
27060 Lm |
| Total Driver 'FOV' Flux † | 17833 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 24 |
| Power Consumption | 312 Watts |
| Current Draw (at 14.4V) | 21.7 Amps |
| CERTIFICATION | |
| High Beam | N/A |
| E-Mark Ref | N/A |
| PHOTOMETRIC DATA | |
| Horiz Beam Angle | 30 Deg |
| 0.25 lx Line | 2352 metres |
| 0.5 lx Line | 1663 metres |
| 1 lx Line | 1176 metres |
| 3 lx Line | 679 metres |
Approved for road use: No |

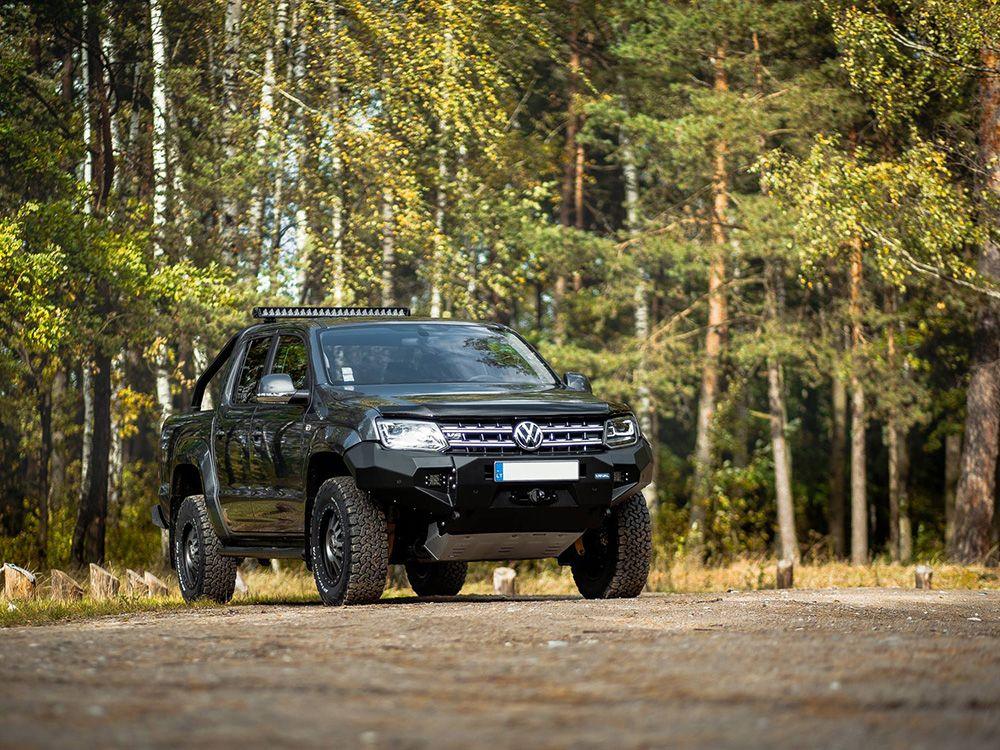

LAZER Triple-R 24 Elite
