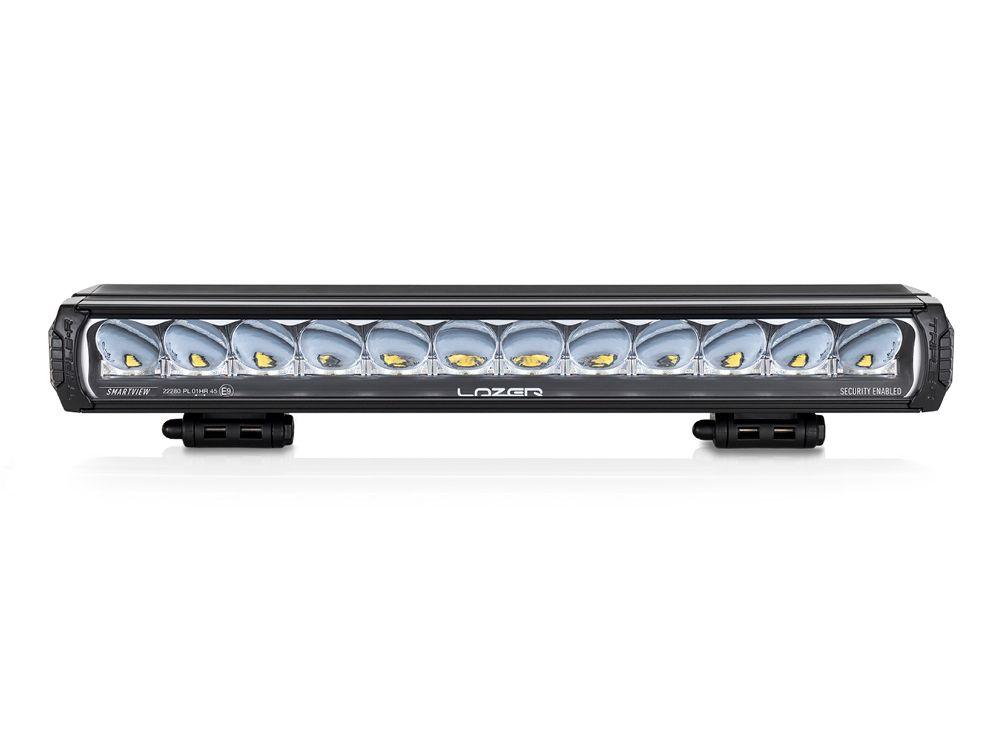

The Triple-R 1250 Smartview represents our most advanced auxiliary LED spotlight, capable of operating in five different lighting modes, activated by a touchscreen Dashboard Controller. Each lamp comes supplied with an Anti-Theft Unit, pre-programmed to prohibit use of the lamp if removed from your vehicle, and which facilitates the ‘plug & play’ wiring of each component of the Smartview package into your vehicle’s electrical system.
At it’s heart the Triple-R 1250 Smartview measures 590mm in length and is capable of delivering 12,170 lumen. While the Smartview shares many product characteristics carried over from the Triple-R Elite range of products, including CAE optimised housing with exceptional thermal dynamics and E-coat pre-treatment on all metal parts providing superior corrosion resistance, the Smartview stands apart in its electrical design, which permits operation of the multiple different beam patterns and functions, aligned to the everyday needs of both road and off-road users.
Low Output Mode - UNECE Compliant – enables the customer to operate the lamp in compliance with EU road-legal requirements (it is the customers responsibility to always observe regulations specific to individual countries).
Boost Mode – increases the intensity of light for maximum visibility. Off-Road use only.
Speed Adapt Mode – beam pattern adjusts depending on the speed of the vehicle between 30mph/50kph – 50mph/80kph. Requires CanM8 Duo Interface.
Near-View Mode – provides superior levels of short-range illumination, ideal in more extreme weather conditions such as fog and snow. Can be operated independently of standard high beam driving lights.
Dynamic Dip – delivers a smoother transition between high and low beam (after an immediate switch to Near-View mode), allowing time for the driver’s eyes to adjust to lower light levels.
SPECIFICATIONS Based on: 1 × Triple-R 1250 Smartview (Boost mode).
Voltage range (DC)
10-32V
LED life
50,000 hours
Weight
1.94 kg
High beam function
Total luminous flux
12170 lm
Total driver 'FOV' flux †
7339 lm
Number of high-output LEDs
12
Power consumption
105 W
Current draw (at 14.4V)
7.3 A
Certification
High beam
ECE R112
ECE reference
45
Dimensions
Width
590 mm
Depth
103 mm
Height
73 mm
Photometric data
0.25 lx line
1463 m
0.5 lx line
1035 m
1 lx line
732 m
3 lx line
422 m
WHAT'S INCLUDED
1 × Triple-R 1250 Smartview LED Lamp
1 × Anti-Theft Unit
2 × Centre Mounts (1114K)
1 × Side Mount Kit (1118K)
Quick-start guide included
Road approval: Yes (45)
*Lamp uses E-BOOST technology. It is approved for road use (E-mark on the lens), but includes an off-road 'dual-output' function which increases intensity of light for when the vehicle is off-road.
