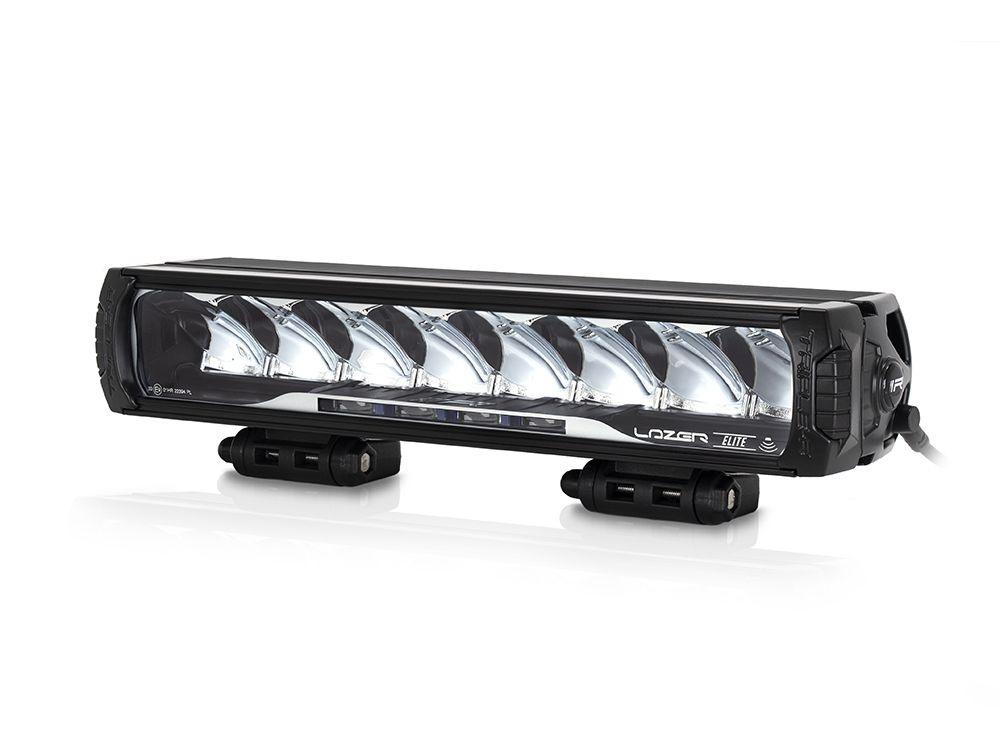

A world first, utilising patent-pending technology, the Triple-R 1000 Elite with Intelligent Low Beam Assist redefines the performance and functionality of auxiliary LED driving lights. A combination of the latest high-efficiency LEDs delivers a finely-tuned beam pattern, optimised for road use, that is simply unrivalled considering the lamps size. Additionally, through the adoption of 4 photoelectric sensors embedded within the driving light, when the high beam light is turned off, the transition from high beam driving lights is significantly enhanced as the lamp maintains higher levels of illumination in zones where there is confirmed no oncoming vehicles or obstacles.
Incorporating an arrangement of 26 LEDs, each lamp produces an incredible 11,068 raw lumen, which on the one hand deliver exceptional distance illumination with 1 lux at 681m, and on the other 44 degrees of left/right spread for our safest and most relaxing night drive experience. With the Intelligent Low Beam Assist mode activated, when transitioning from your high beam driving lights, the central optics (delivering the distance illumination) are deactivated when the standard high beams are turned off. Superior levels of visibility at the side of the road in the short/mid-range are maintained as the lamp monitors progress of oncoming traffic. At the appropriate point additional illumination at either side of the road is deactivated to avoid disturbance to oncoming vehicles. Once the vehicle has past (and after a short delay), the lamp automatically returns to Low Beam Assist mode, (assuming no additional vehicles or obstacles are subsequently detected ahead), or returns to operating as a high beam driving light if activated (either manually or if part of any vehicle’s auto-headlights function).
SPECIFICATIONS Based on: 1 × Triple-R 1000 Elite with i-LBA.
Boost mode
Low-output mode
Voltage range (DC)
10-32V
10-32V
LED life
50,000 hours
50,000 hours
Weight
1.7 kg
1.7 kg
High beam function
Total luminous flux
11068 lm
3423 lm
Total driver 'FOV' flux †
7294 lm
2256 lm
Colour temperature
5000K
5000K
Number of high-output LEDs
26
26
Power consumption
111 W
32 W
Peak Current Draw (@10V)
9.5 A
N/A
Current Draw (@14.4V)
6.6 A
2.3 A
Certification
High beam
N/A
ECE R112
E-mark ref
N/A
30
Photometric data
Horizontal beam angle
56 °
56 °
0.25 lx line
1362m
746m
0.5 lx line
963m
527m
1 lx line
681m
373m
3 lx line
393m
215m
WHAT'S INCLUDED
1 × Triple-R 1000 with i-LBA LED Lamp
2 × Centre Mount (1114K)
1 × Single-Lamp 'Low Beam Assist' Wiring Kit (1L-LP-LBA-150)
Installation instructions
Road approval: Yes (30)
*Lamp uses E-BOOST technology. It is approved for road use (E-mark on the lens), but includes an off-road 'dual-output' function which increases intensity of light for when the vehicle is off-road.
