Part no. 00R8-G2-B / 00R8-G2-W
The latest generation of the Triple-R range, delivers exceptional, long-range auxiliary LED automotive lighting. Initially developed for the uncompromising requirements of professional track and rally motorsport, the range has evolved to become a firm favourite across the passenger car, 4x4, light commercial, and heavy truck market, both on and off-road. Recent additions to the Triple-R range boast innovative features and functionality, including patent-pending technology never seen before in an auxiliary LED light bar.
Incorporating an arrangement of high efficiency, premium ‘bin’ LEDs at a carefully selected 5000K colour temperature, with 80CRI for high levels of sharpness and clarity, the Triple-R Elite products represent our most powerful driving lights. The electronics and optic design work in combination to deliver incredible distance illumination, yet still with enviable left/right spread. The comparatively low up/down spread of light emitted from the Elite lights ensures their suitability when roof mounting, avoiding reflective glare off the vehicle bonnet.
Specifications:
Based on: 1x Triple-R 1000.
|
Boost Mode |
Low Output Mode | |
| Voltage Range (DC) | 10-32V | 9-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 1.7 kg | 1.7 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux |
9240 Lm |
1848 Lm |
| Total Driver 'FOV' Flux † | 5572 Lm | 1114 Lm |
| Colour Temperature | 5000k | 5000k |
| Number of High Output LEDs | 8 | 8 |
| Power Consumption | 88 Watts | 17.6 Watts |
| Current Draw (at 14.4V) | 6.1 Amps | 1.2 Amps |
| CERTIFICATION | ||
| High Beam | N/A | ECE R112 |
| E-Mark Ref | N/A | 12.5 |
| Position Light (White) | ECE R7 | ECE R7 |
| PHOTOMETRIC DATA | ||
| Horiz Beam Angle | 19 Deg | 19 Deg |
| 0.25 lx Line | 1225 metres | 548 metres |
| 0.5 lx Line | 866 metres | 387 metres |
| 1 lx Line | 612 metres | 274 metres |
| 3 lx Line | 354 metres | 158 metres |
Approved for road use: *Yes (12,5) |
| *Lamp uses E-BOOST technology. It is approved for road use (E-mark on the lens), but includes an off-road 'dual-output' function which increases intensity of light for when the vehicle is off-road. |

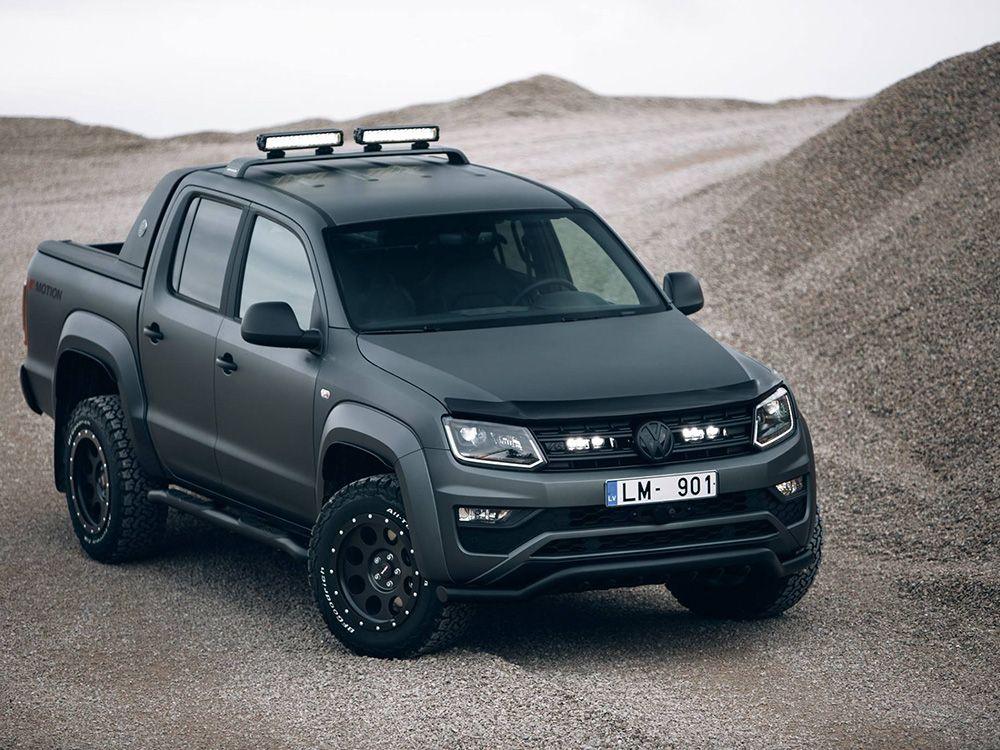

LAZER Triple-R 1000
Black
