Part no. GK-DISCO5-01K
For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

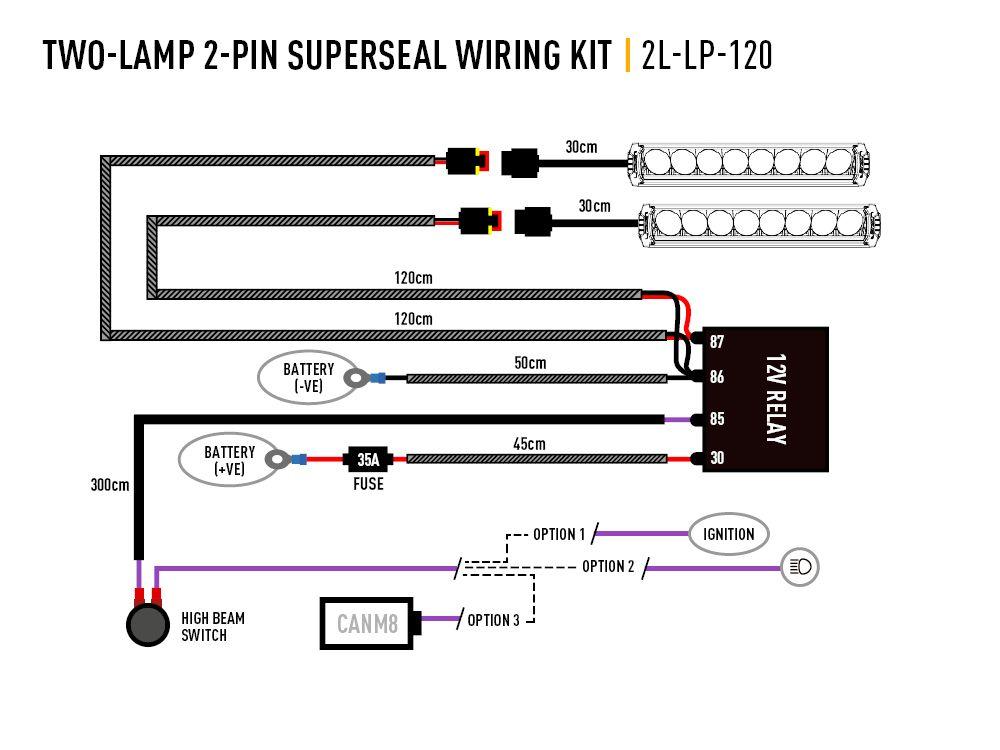

The Land Rover Discovery 5 (2017-2020) kit includes a pair of ST4 Evolution, High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Specifications:
| x2 ST4 Evolution |
|
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 1340g |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 8272 Lm |
| Total Driver 'FOV' Flux † | 4980 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 2 x 4 |
| Power Consumption | 94 Watts |
| Current Draw (at 14.4V) | 6.6 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 10 x2 |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 40° |
| 0.25 lx Line | 786m |
| 0.5 lx Line | 555m |
| 1 lx Line | 393m |
| 3 lx Line | 227m |
Approved for road use: Yes |
