Part no. 1L-DT4-200

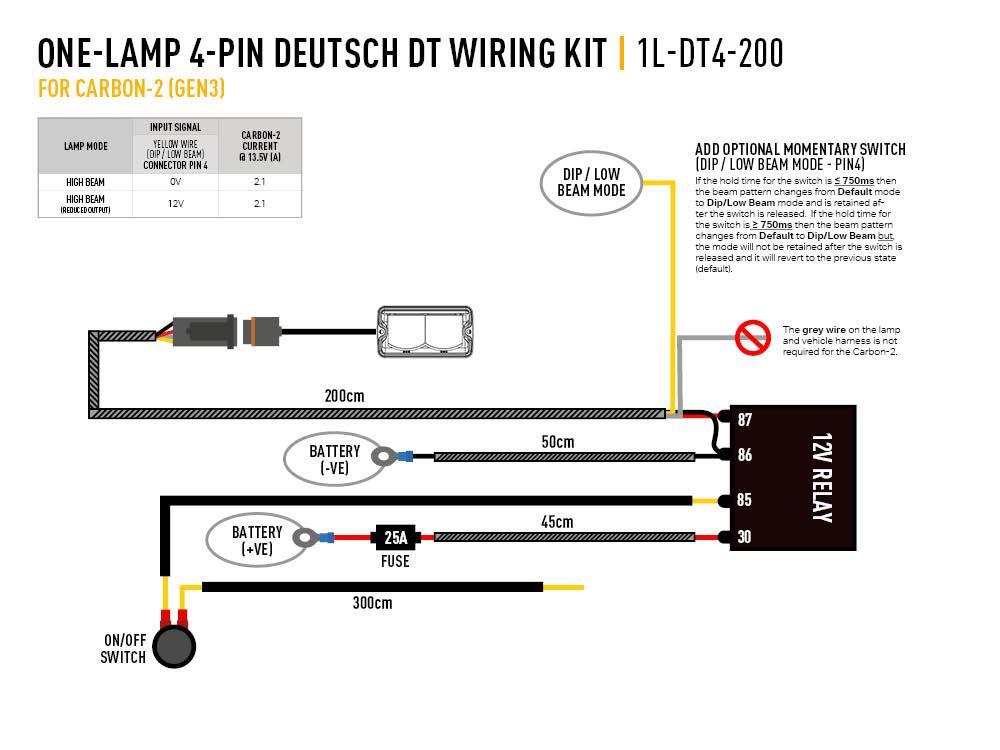

One-Lamp wiring kit for Lazer Lamps High Performance LED lights. The setup is quick, easy, and reliable with 4-pin Deutsch connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 2m of flex on the lamp cable, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle.
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.
Compatible with:
Please note that Lazer’s corresponding one-lamp and two-lamp wiring kits for the Utility-80 HD Variable, requires customers to provide their own switching method for adjusting brightness up/down.
Specifications:
Single-Lamp Wiring Kit for Lazer Lamps High performance LED spotlights (see product text for compatibility)
2m cable lengths
Includes 12V relay and 25 amp fuse
Relay holder approved to IP53 when mounted in a vertical (upright) orientation
Deutsch DT06-4S connections
Includes on/off switch for independent operation of lights
Braided cable sections for added protection in engine bay
