Part no. 0S9-ELITE-SM / 0S9-ELITE-WHT

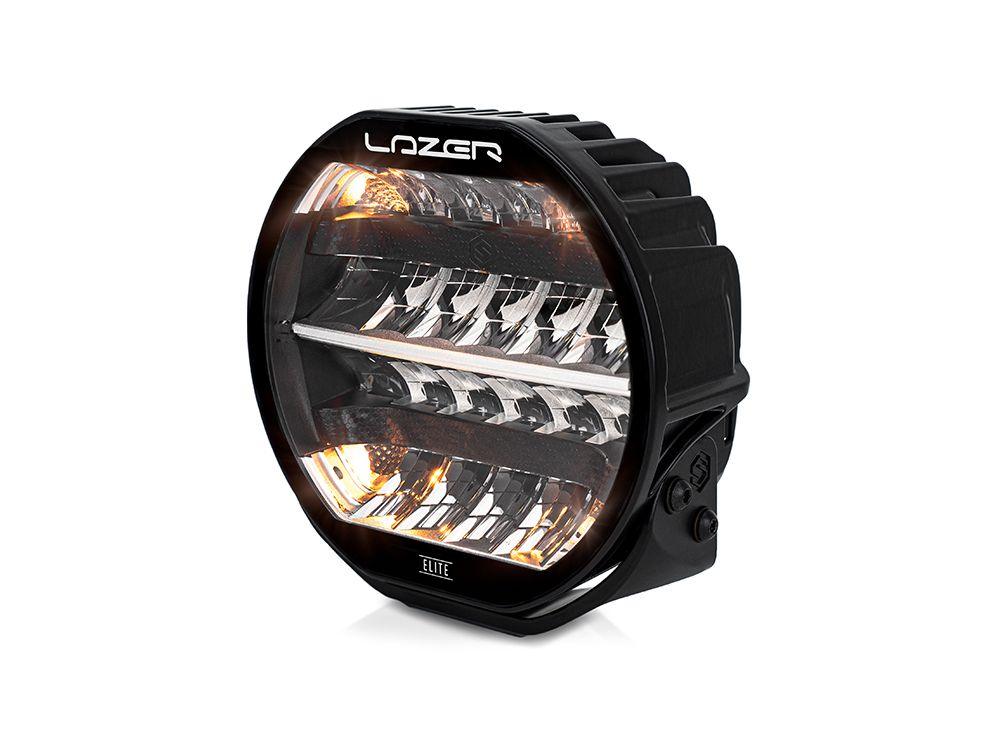

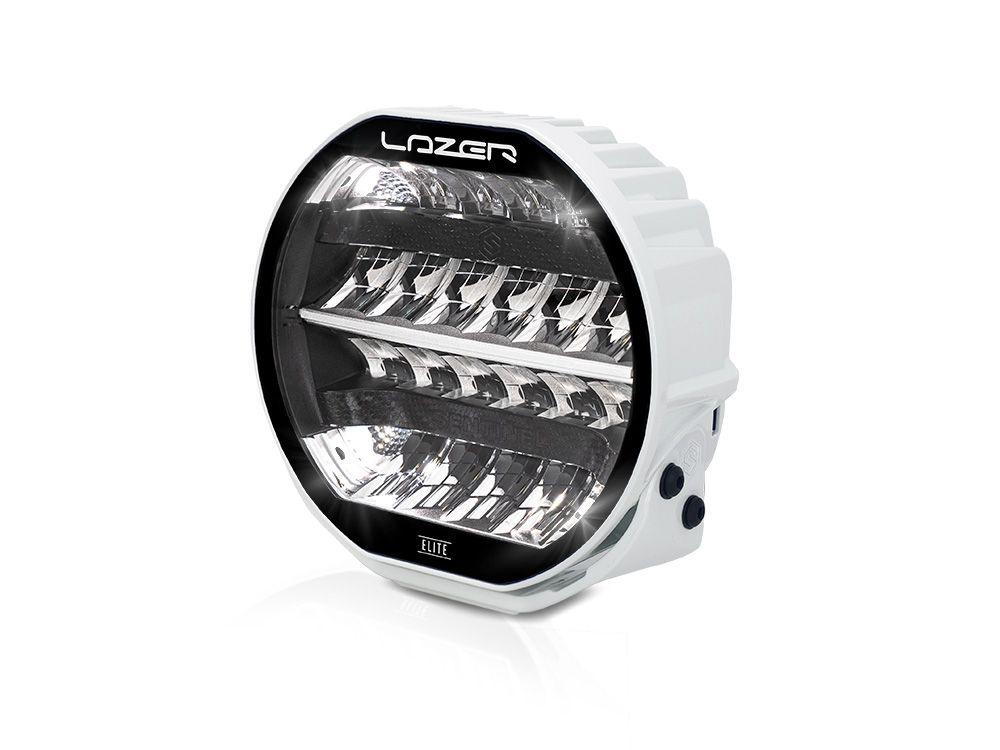

The Sentinel range are 9” round lamps that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Lazer Lamps name. The Sentinel Elite product comes available with a sleek black internal appearance (Also available with integrated white/amber Position Light function), and a combination of 32 high power LEDs, representing the very best lighting performance as expected from a product bearing the ‘Elite’ tag. Lighting performance aside, meticulous product styling ensures this is a product that stands out for all the right reasons.
Emitting 15,232 raw lumens, the lamps deliver 1 lux to 742m, but it is in the 52 degree horizontal spread of light, and visibility at the sides of the road or track in the mid to long-range that the Sentinel Elite really comes into its own. For a demonstration of the lighting performance, please click the videos section below. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead. The lamp is UNECE approved to Regulation 112 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; operating at 100% the light output is beyond the permissible limit of the ECE regulations, so removing the supplied Boost Cap from the back of the lamp reduces the light output to be within the allowable limit.
Specifications:
Based on: 1x Sentinel 9'' Elite LED Lamp.
| Boost Mode | Low Output Mode | |
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 2.5 kg | 2.5 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux |
15232 Lm |
3046 Lm |
| Total Driver 'FOV' Flux † | 9048 Lm | 1809 Lm |
| Colour Temperature | 5000k | 5000k |
| Number of High Output LEDs | 32 | 32 |
| Power Consumption | 145 Watts | 29 Watts |
| Current Draw (at 14.4V) | 10.1 Amps | 2 Amps |
| CERTIFICATION | ||
| High Beam | N/A | ECE R112 |
| E-Mark Ref | N/A | 20 |
| PHOTOMETRIC DATA | ||
| Horiz Beam Angle | 52 Deg | 52 Deg |
| 0.25 lx Line | 1483 metres | 663 metres |
| 0.5 lx Line | 1049 metres | 469 metres |
| 1 lx Line | 742 metres | 332 metres |
| 3 lx Line | 428 metres | 191 metres |
Approved for road use: Yes *(20) |
| *Lamp uses dual-output E-BOOST technology. It is approved for road use (UNECE Reg112/149), but includes an off-road function which increases intensity of light for when the vehicle is off-road. |
