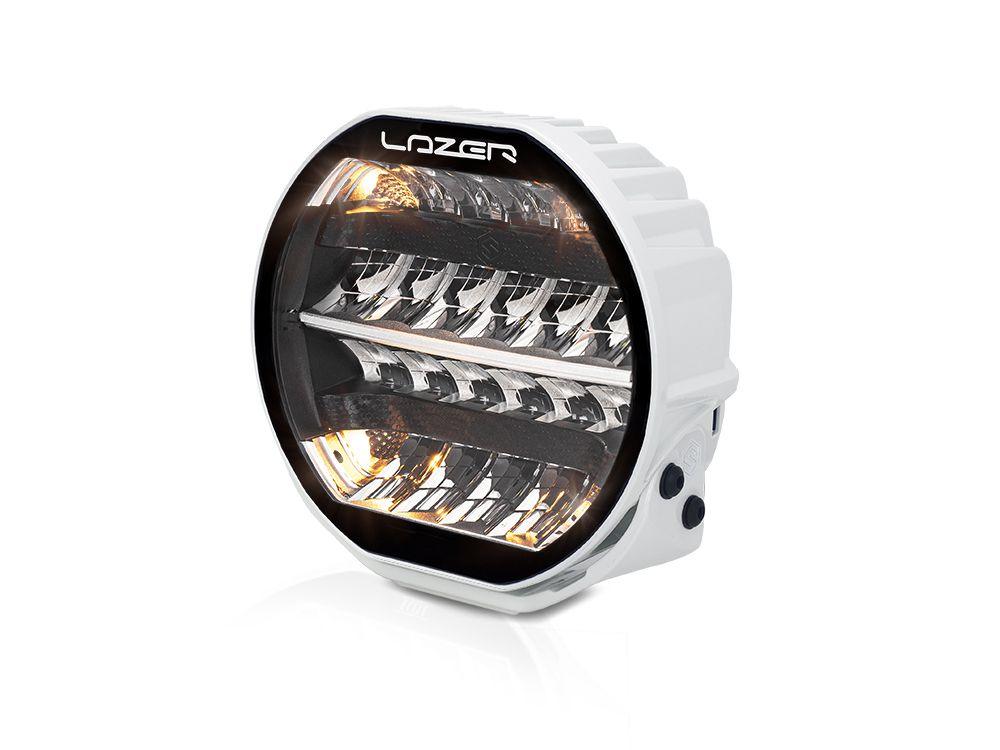

The Sentinel range are 9” round lamps that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Lazer Lamps name. Available in Standard or Elite grades, the former incorporates 20 high power LEDs and comes available with either a black or chrome finish inside the lamp. The Elite product by comparison is only available with the black internal appearance, but with a combination of 32 high power LEDs, represents the very best lighting performance as expected from a product bearing the ‘Elite’ tag.

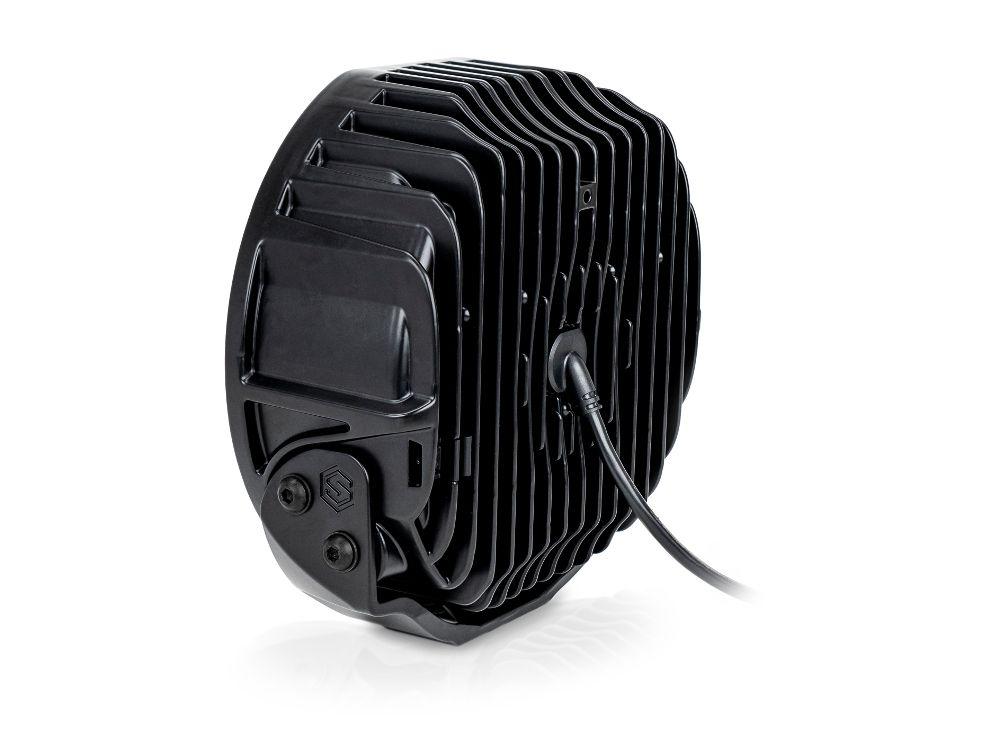

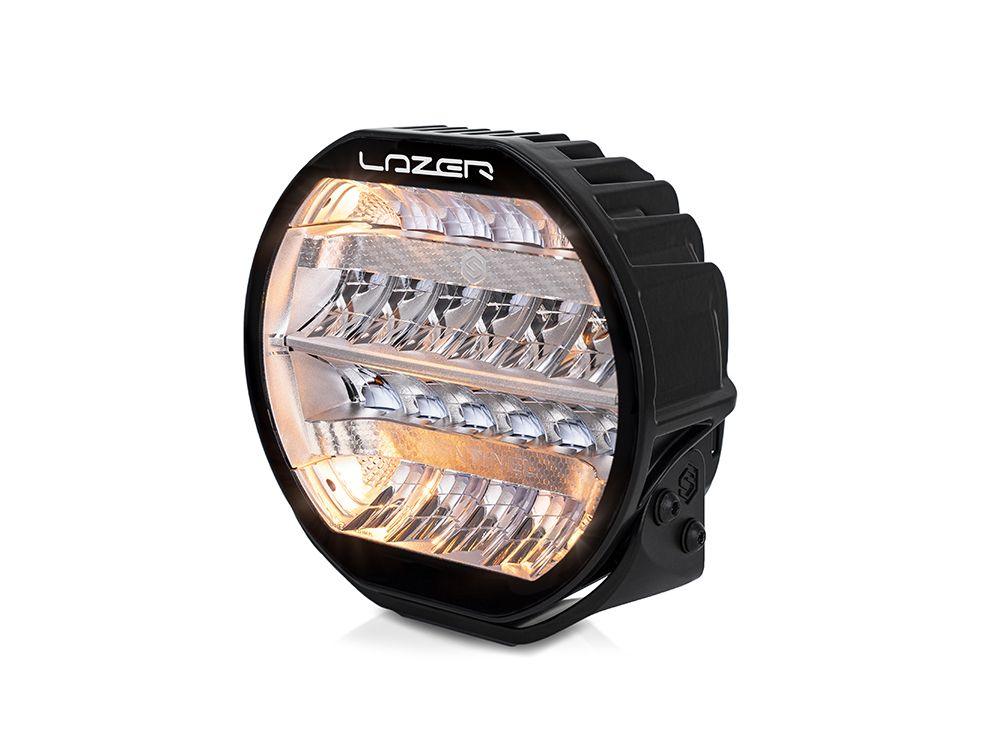

Both Sentinel Black and Chrome lamps, in the ‘Standard’ range, produce the same lighting performance. Emitting 9,529 raw lumens, the lamps deliver 1 lux reaching to over 700m; impressive in itself, but considering the 52 degrees horizontal beam angle, this is a product that has been designed to deliver maximum visibility for all manner of road and off-road use. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead. The lamp is UNECE approved to Regulation 112 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; operating at 100% the light output is beyond the permissible limit of the ECE regulations, so removing the supplied Boost Cap from the back of the lamp reduces the light output to be within the allowable limit.
SPECIFICATIONS Based on: 1 × Sentinel 9'' LED Lamp.
Boost mode
Low-output mode
Voltage range (DC)
10-32V
10-32V
LED life
50,000 hours
50,000 hours
Weight
2.5 kg
2.4 kg
High beam function
Total luminous flux
9520 lm
1904 lm
Total driver 'FOV' flux †
5588 lm
1118 lm
Colour temperature
5000K
5000K
Number of high-output LEDs
20
20
Power consumption
87 W
17 W
Current draw (at 14.4V)
6 A
1.2 A
Certification
High beam
N/A
ECE R112
E-mark ref
N/A
20
Position light (white)
ECE R7
ECE R7
Photometric data
Horizontal beam angle
52 °
52 °
0.25 lx line
1414 m
632 m
0.5 lx line
1000 m
447 m
1 lx line
707 m
316 m
3 lx line
408 m
183 m
WHAT'S INCLUDED
1 × Sentinel 9'' LED Lamp
1 × 'Slim' Mount Kit (1141K)
Installation instructions
Road approval: Yes *(20)
*Lamp uses dual-output E-BOOST technology. It is approved for road use (UNECE Reg112/149), but includes an off-road function which increases intensity of light for when the vehicle is off-road.
