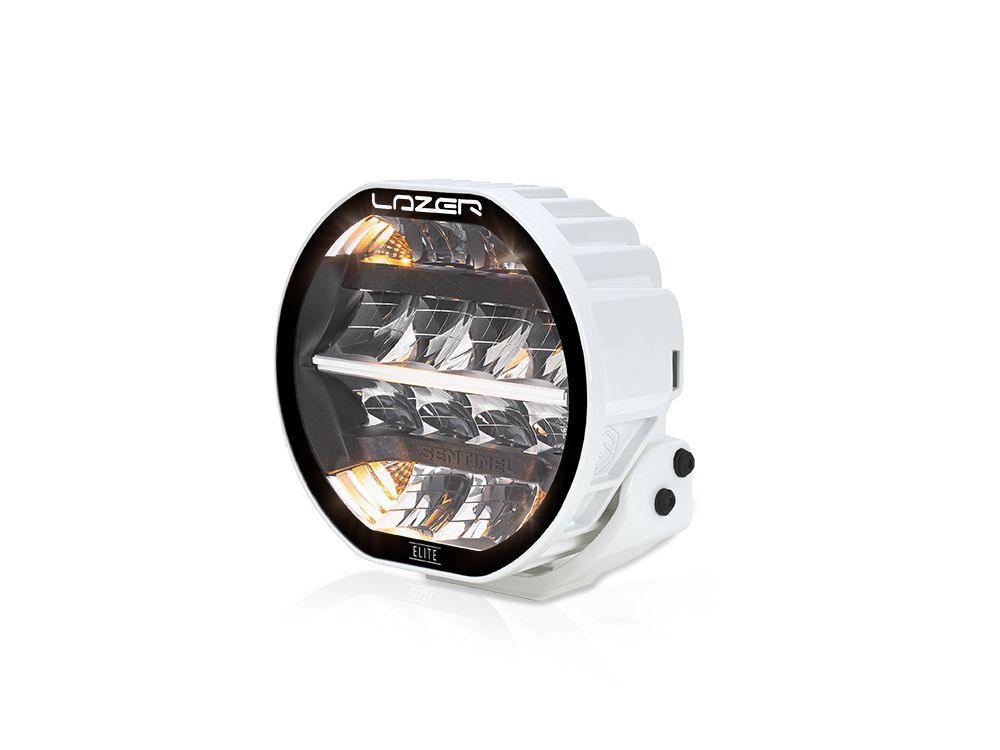

The Sentinel range of round LED driving lights now comprises 7-inch versions available in Standard and Elite grades. The lights deliver remarkable high beam lighting performance, and product styling that exudes quality. At the Standard level, a combination of 12 high power LEDs emit 5,208 raw lumens, while at the Elite level 10,248 raw lumens are served up by 24 high power LEDs, with each product having the light output on the road or track ahead maximised through the adoption of class-leading electronics and optical design, alongside the product’s CAE-optimised lamp housing.
Boasting a true ‘combo’ beam pattern, the central rows of LEDs and optics deliver the long-range illumination, while the upper and lower sections have been meticulously designed and engineered to produce an enviable 65 degrees wide spread of light (Elite grade). The result, a perfectly balanced distribution of light, at a carefully selected 5000 kelvin colour temperature, to make night driving a safer and more enjoyable experience. Considering the lamps size and power rating (60W - Standard / 116W – Elite), these lamps outperform on every level, even against significantly larger, more powerful products.
Specifications
Based on: 1 × Sentinel 7'' Elite LED Lamp.
Boost mode
Low-output mode
Voltage range (DC)
10-32V
10-32V
LED life
50,000 hours
50,000 hours
Weight
1.5 kg
1.5 kg
High beam function
Total luminous flux
10248 lm
2049 lm
Total driver 'FOV' flux †
6380 lm
1276 lm
Colour temperature
5000K
5000K
Number of high-output LEDs
24
24
Power consumption
110 W
22 W
Current draw (at 14.4V)
7.6 A
1.5 A
Certification
High beam
N/A
ECE R149
E-mark ref
N/A
12.5
Photometric data
Horizontal beam angle
65 °
65 °
0.25 lx line
1233 m
551 m
0.5 lx line
872 m
390 m
1 lx line
616 m
276 m
3 lx line
356 m
159 m
What's included
1 × Sentinel 7'' Elite LED Lamp
1 × 'Slim' Mount Kit (1141-0S7-K)
1 × Black Lens Cover (LC-0S7-BLK)
Installation instructions
Road approval: Yes *(12.5)
*Lamp uses dual-output E-BOOST technology. It is approved for road use (UNECE Reg112/149), but includes an off-road function which increases intensity of light for when the vehicle is off-road.
