Part no. 00RP-SPOT

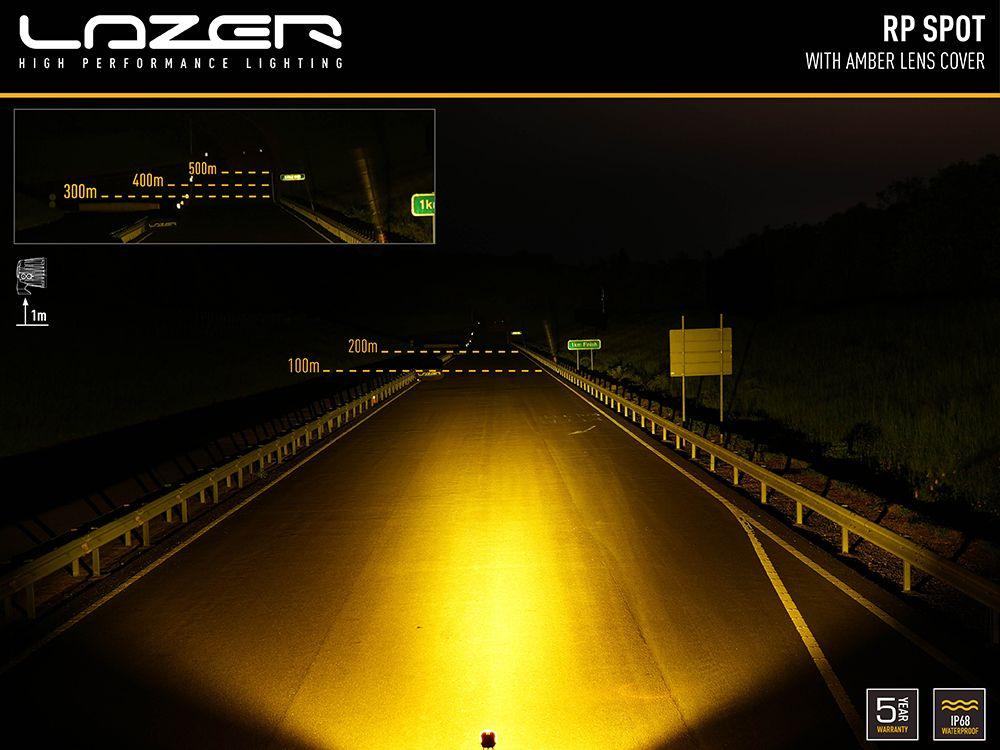

The RP Spot is an ‘off-road’ LED light built for performance and durability. Boasting 4x premium-bin 20W LEDs, the lamp produces 8,940 raw lumens which combine with the ultra-reflective, vacuum-metallised ‘boost’ optics specially designed and engineered to deliver light over an impressive distance (1 lux @ 392m), but still with 20 degrees left/right spread of light.
To compliment and enhance the impressive light output a comprehensive range of clip-on lens covers are available, including yellow and diffuser lenses. A black ‘Lazer’ branded lens cover is included with each light.
Based on: 1 × RP Spot.
| Voltage range (DC) | 10-32V |
|---|---|
| LED life | 50,000 hours |
| Weight | 1.1 kg |
| High beam function | |
| Total luminous flux | 8940 lm |
| Total driver 'FOV' flux † | 6079 lm |
| Colour temperature | 5000K |
| Number of high-output LEDs | 4 |
| Power consumption | 80 W |
| Current draw (at 14.4V) | 5.6 A |
| DIMENTIONS | |
| Width | 107mm |
| Depth | 108mm |
| Height | 107mm |
| Photometric data | |
| Horizontal beam angle | 20° |
| 0.25 lx line | 785m |
| 0.5 lx line | 555m |
| 1 lx line | 392m |
| 3 lx line | 227m |
Road approval: No
