Part no. GK-SUBO-01K/GK-SUBO-ELITE-01K

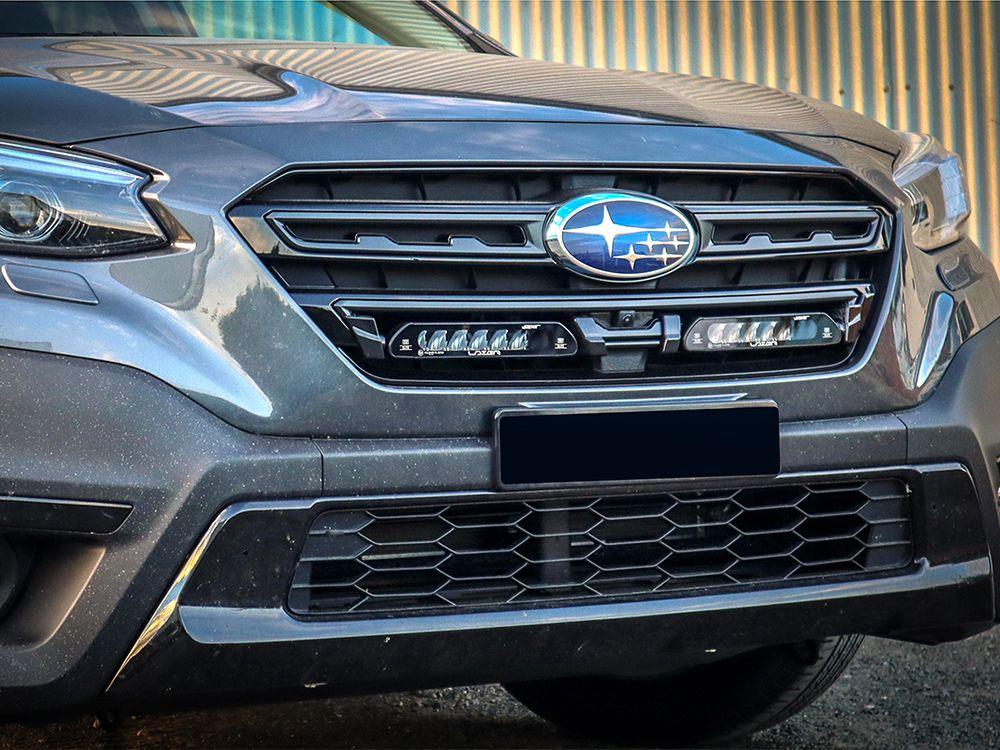

For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

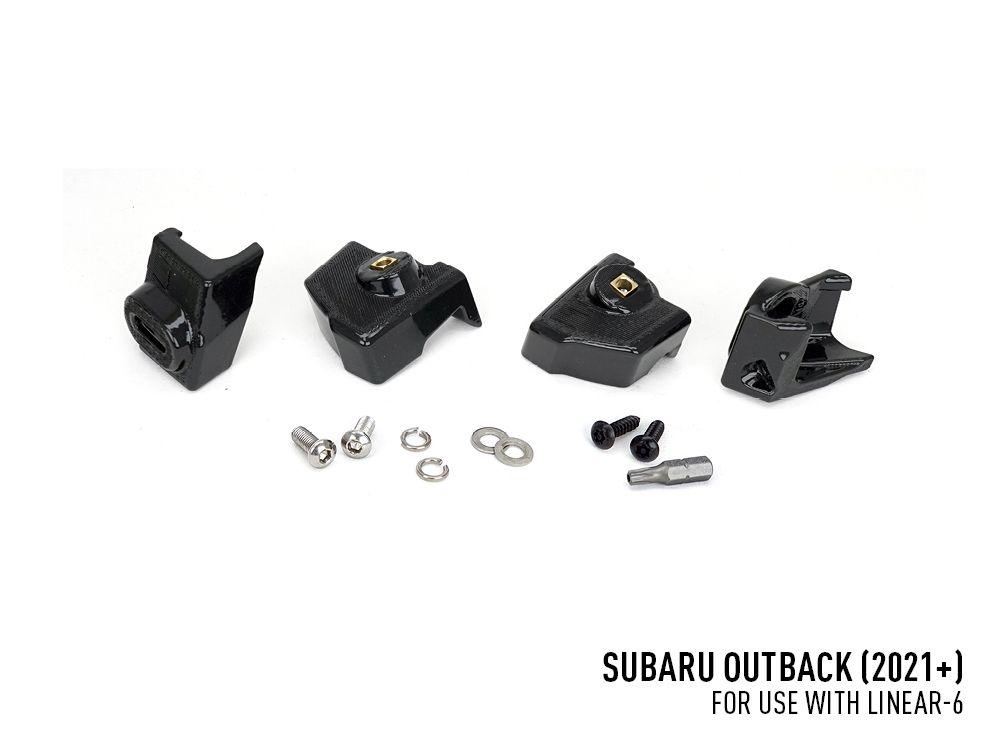

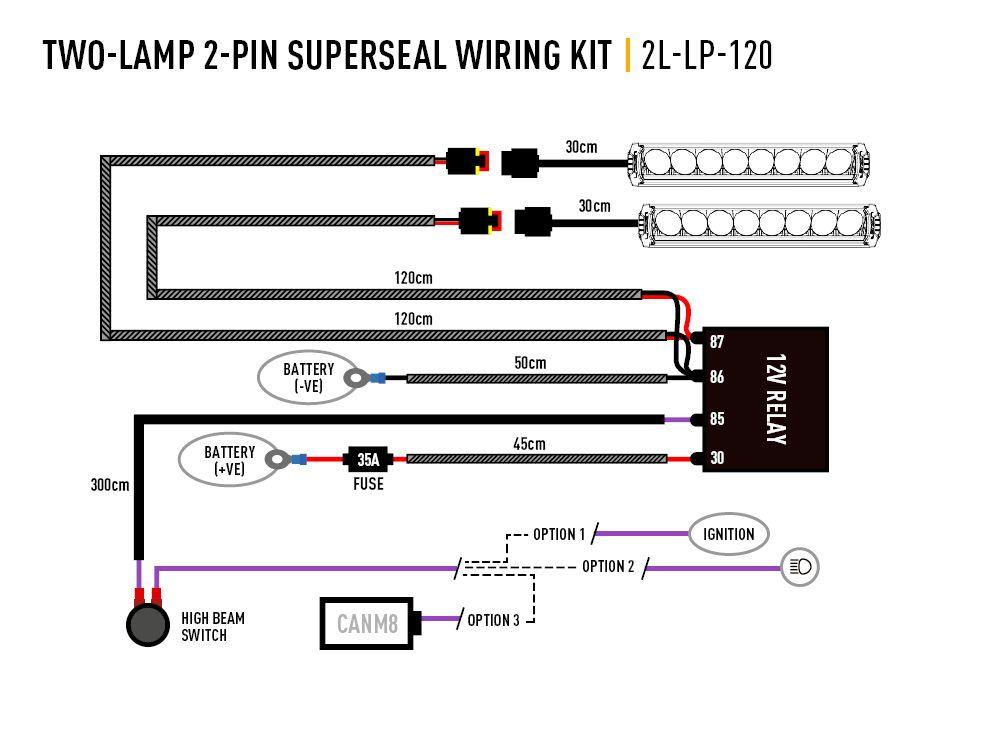

The Subaru Outback kit, designed for 2020-2022 vehicles, includes a pair of Linear-6 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Specifications:
| 2x Linear-6 |
2x Linear-6 |
|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours |
| Weight | 800 gr | 800 gr |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 4500 Lm | 8100 Lm |
| Total Driver 'FOV' Flux † | 3204 Lm | 5767 Lm |
| Colour Temperature | 5000K | 5000K |
| Number of High Output LEDs |
2 x 6 | 2 x 12 |
| Power Consumption | 42 W | 84 W |
| Current Draw (at 14.4V) | 2.92 A | 5.8 A |
| CERTIFICATION | ||
| High Beam | ECE R112 | ECE R112 |
| ECE Reference | 2x 12.5 | 2 x 17.5 |
| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 56° | 64° |
| 0.25 lx Line | 698m | 796m |
| 0.5 lx Line | 494m | 563m |
| 1 lx Line | 349m | 398m |
| 3 lx Line | 202m | 230m |
Approved for road use: Yes |
