Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.
The Linear range is available in a variety of sizes from the 232mm (9”) Linear-6 to the 1282mm (51”) Linear-48. With the exception of the range topping Linear-48, all Linear products are fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use). Elite level products are also available across Linear-6/12/18 product lines with these products boasting twice the light output compared to the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lights are also available with the option for integrated position light function providing added safety and styling benefits.

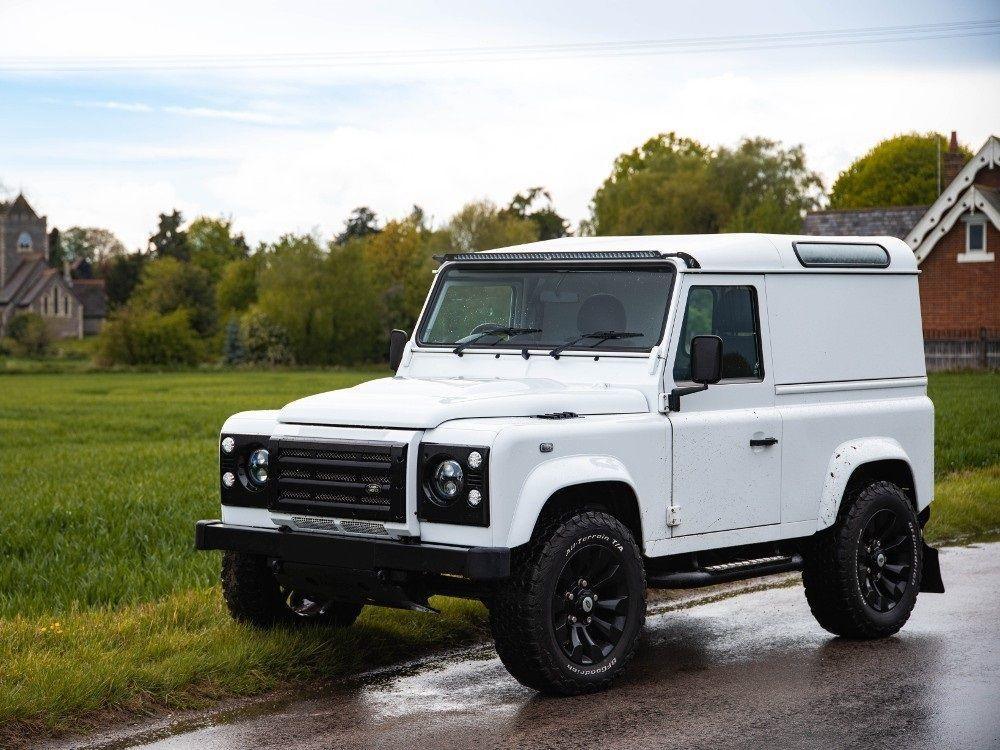

Based on: 1 × Linear-48 LED Lightbar.
SPECIFICATIONS
Voltage range (DC)
10-32V
LED life
50,000 hours
Weight
4 kg
High beam function
Total luminous flux
18000 lm
Total driver 'FOV' flux †
12816 lm
Colour temperature
5000K
Number of high-output LEDs
48
Power consumption
168 W
Current draw (at 14.4V)
11.7 A
Certification
High beam
N/A
ECE reference
N/A
Dimensions
Width
1282 mm
Depth
62 mm
Height
40 mm
Photometric data
Horizontal beam angle
50°
0.25 lx line
1101 m
0.5 lx line
779 m
1 lx line
550 m
3 lx line
318 m
WHAT'S INCLUDED
1 × Linear-48 LED Lamp
1 × Anti-Theft Side Mount (1127K)
Installation instructions
