Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.
The Linear range is available in a variety of sizes from the 232mm (9”) Linear-6 to the 1282mm (51”) Linear-48. All Linear Standard grade products are fully UNECE certified to Regulation 112 as Class B Driving lights for on-road use (with the exception of: Linear-48, Linear-36 Elite, Linear-42 Elite and Linear-48 Elite). Elite level products are also available, with these products boasting at least twice the light output compared to the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lights are also available with the option for integrated position light function providing added safety and styling benefits.
Based on: 1 × Linear-36 Elite .
SPECIFICATIONS
Voltage range (DC)
10-32V
LED life
50,000 hours
Weight
2.7 kg
High beam function
Total luminous flux
29700 lm
Total driver 'FOV' flux †
21325 lm
Colour temperature
5000K
Number of high-output LEDs
72
Power consumption
308 W
Current draw (at 14.4V)
21.4 A
Certification
High beam
N/A
ECE reference
N/A
Dimensions
Width
982 mm
Depth
62 mm
Height
40 mm
Photometric data
Horizontal beam angle
60°
0.25 lx line
1423m
0.5 lx line
1006m
1 lx line
712m
3 lx line
411m
WHAT'S INCLUDED
1 × Linear-36 Elite LED Lamp
1 × Anti-Theft Side Mount (1127K)

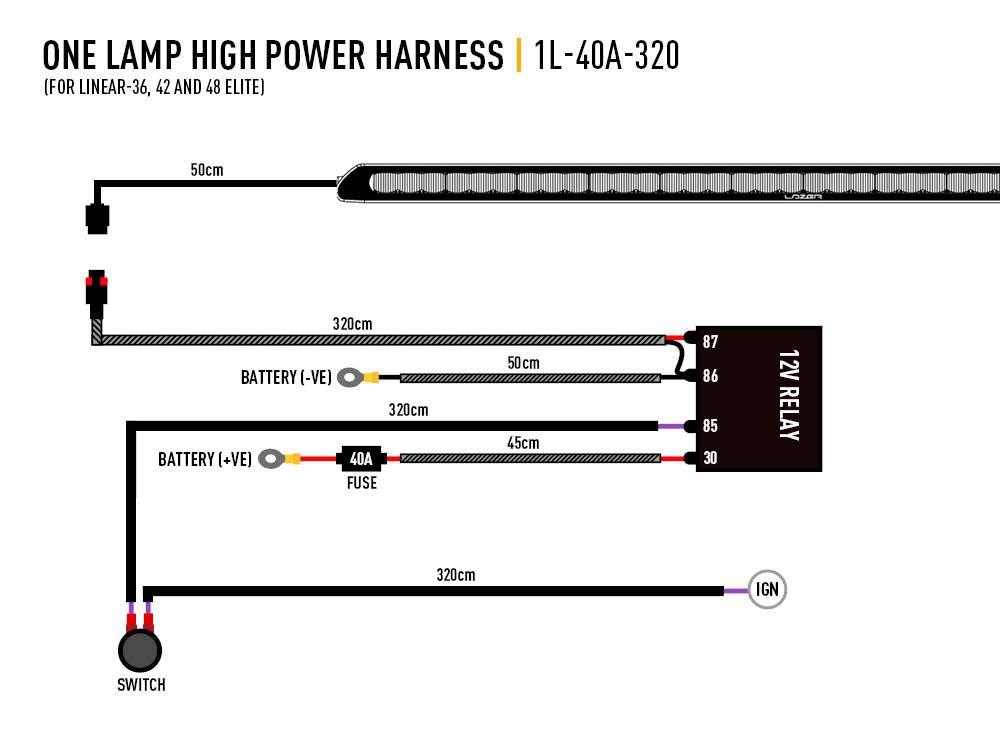

1 × Single-Lamp Wiring Harness (1L-40A-320)
Installation instructions
