Part no. GK-RAP-ELITE-01K
For an OE quality, auxiliary lightbar installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lightbars within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

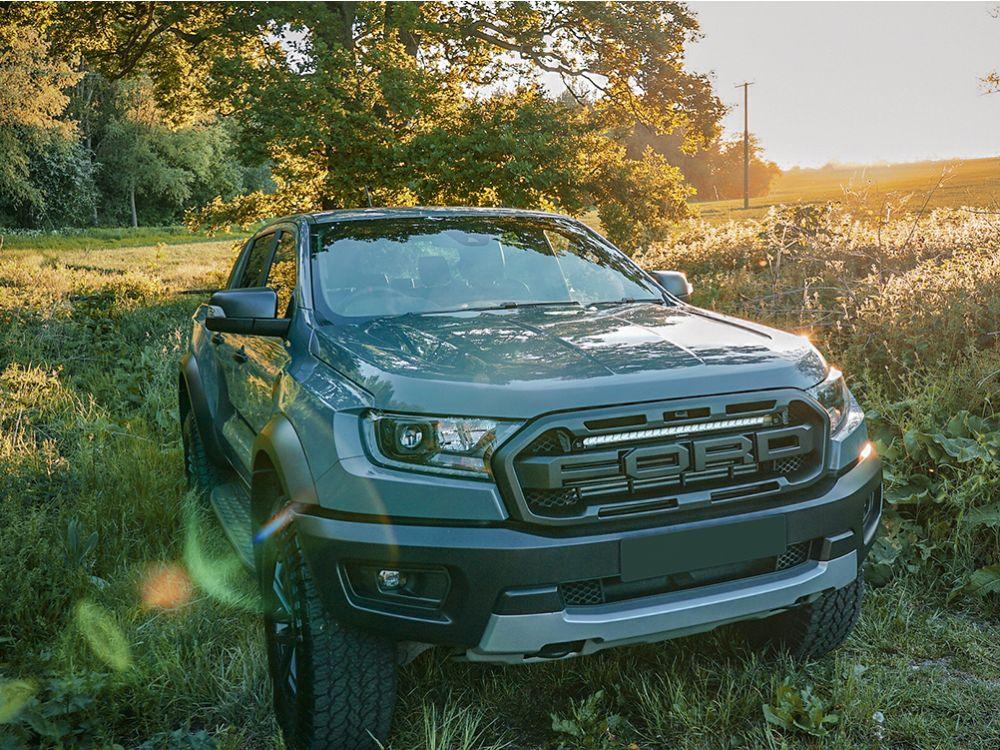

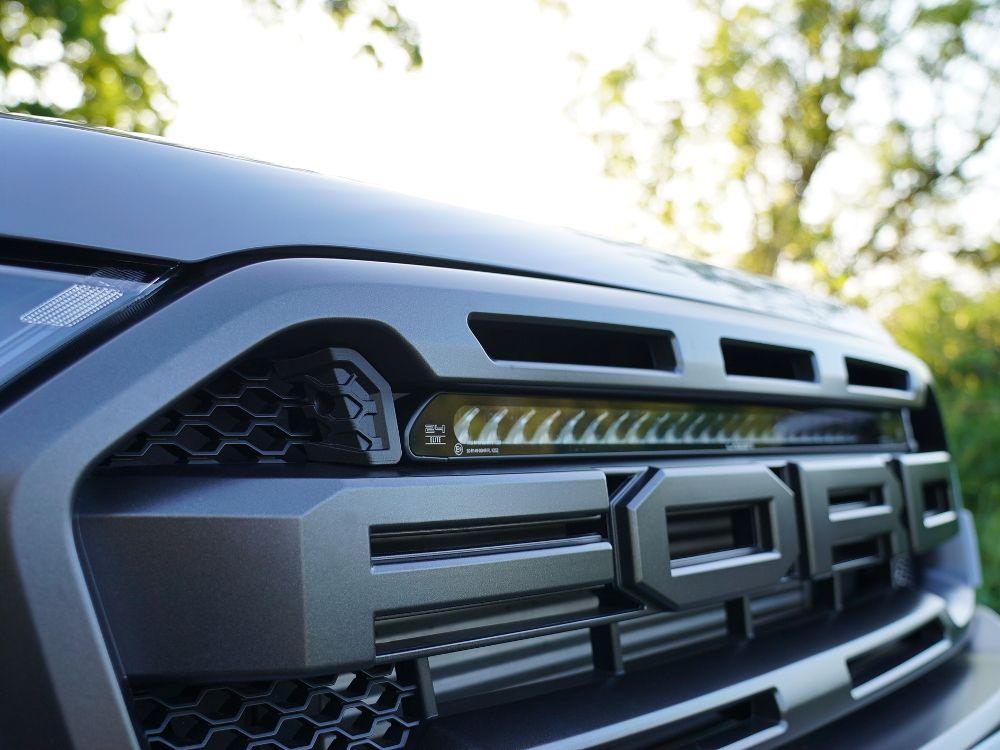

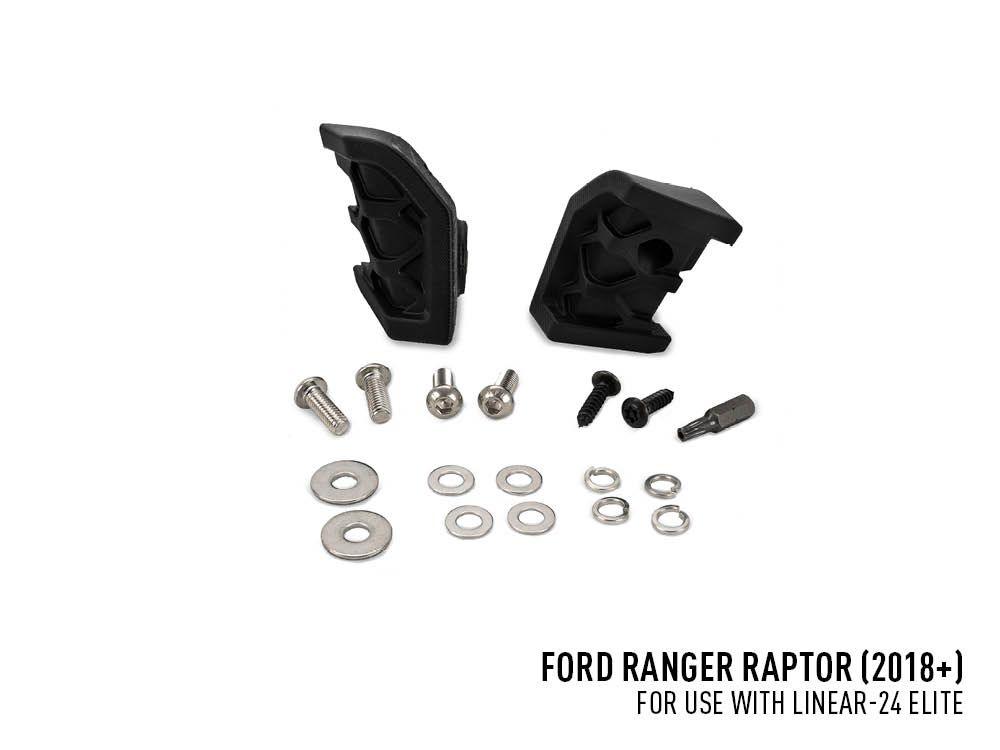

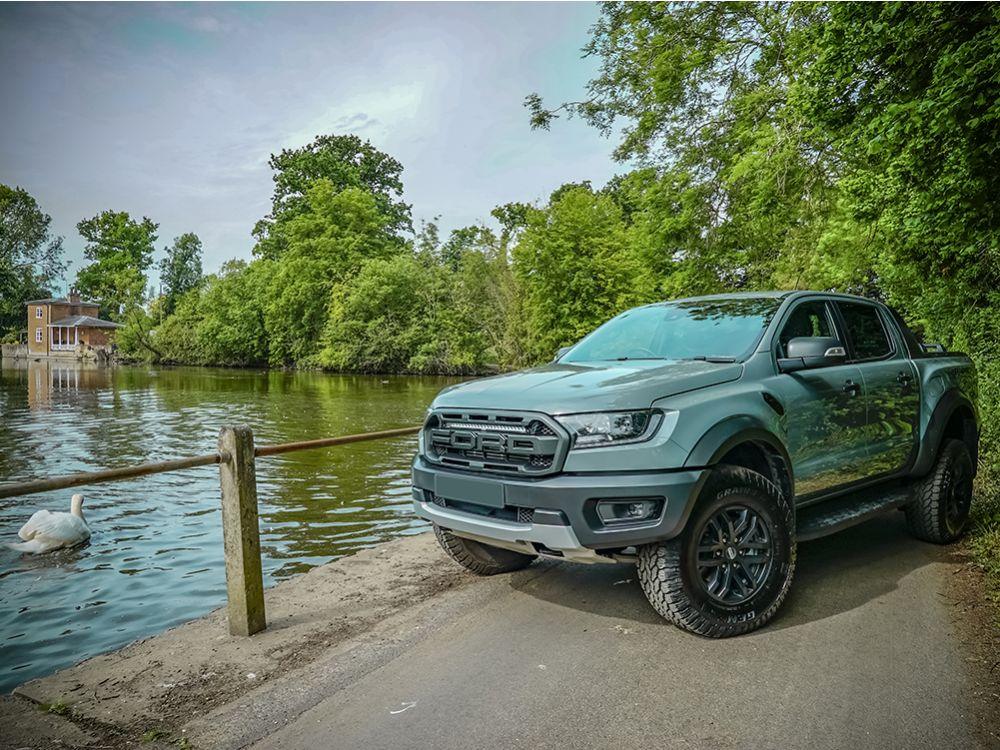

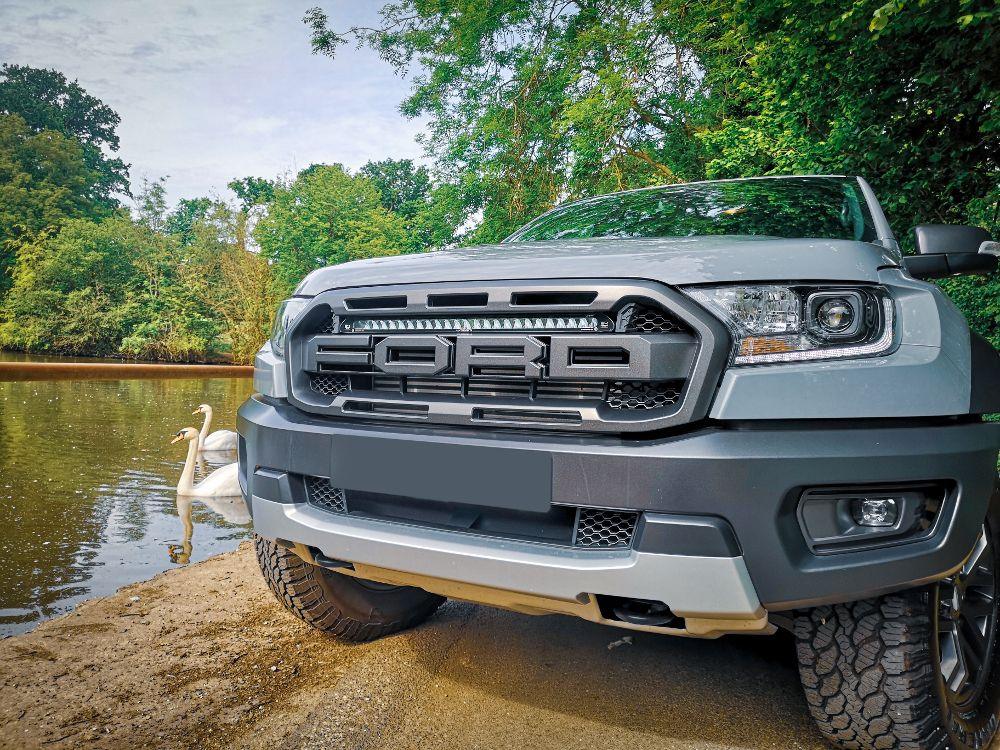

The Ford Ranger Raptor 2018-2022 Grille kit, includes a Linear-24 Elite High Performance LED lightbar, plus wiring kit, alongside a pair of brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from high strength composite material, known for being exceptionally robust and UV stable. The brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Specifications:
| 1x Linear-24 Elite | |
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 2000 gr |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 18000 Lm |
| Total Driver 'FOV' Flux † | 12815 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 24 |
| Power Consumption | 188 Watts |
| Current Draw (at 14.4V) | 14.4 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 2x30 (2x 10 - With E-Mark Cap) |
| DIMENSIONS | |
| Width | 682mm |
| Depth | 62 mm |
| Height | 40 mm |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 64 degrees |
| 0.25 lx Line | 1126 metres |
| 0.5 lx Line | 796 metres |
| 1 lx Line | 563 metres |
| 3 lx Line | 325 metres |
Approved for road use: Yes |
