Part no. 0L24-DBL-EL-LNR
Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.
The Linear range is available in a variety of sizes from the 232mm (9”) Linear-6 to the 1282mm (51”) Linear-48. With the exception of the range topping Linear-48, all Linear products are fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use). Elite level products are also available across Linear-6/12/18/24 product lines with these products boasting twice the light output compared to the equivalent Standard version.

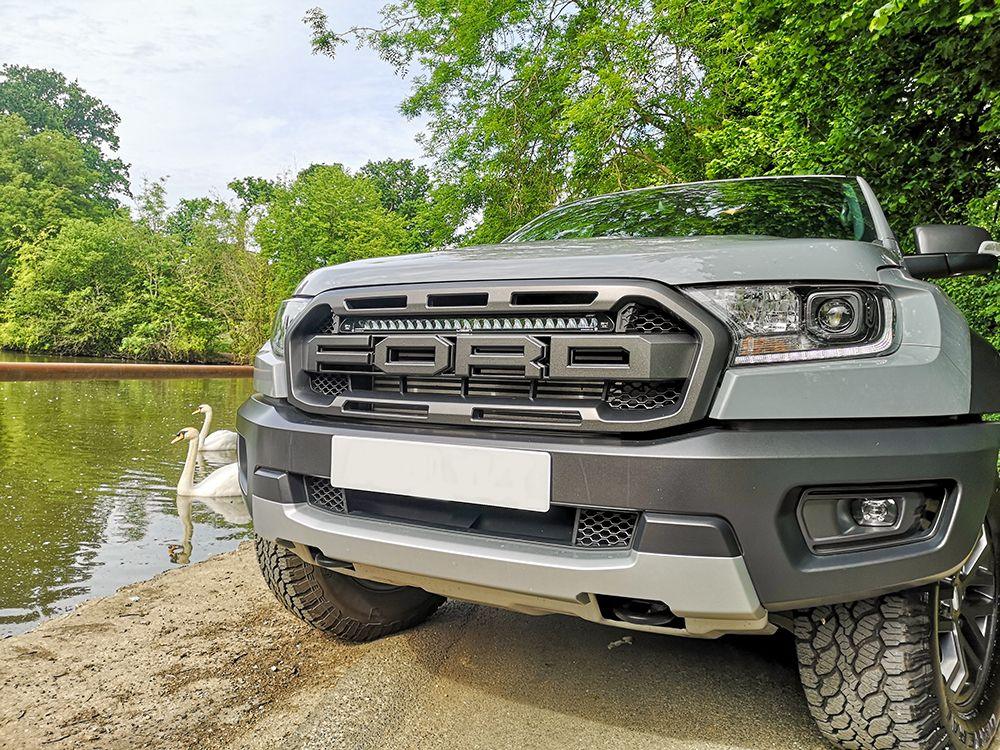

Based on: 1 × Linear-24 Elite LED lightbar.
| Voltage range (DC) | 10-32V |
|---|---|
| LED life | 50,000 hours |
| Weight | 2 kg |
| High beam function | |
| Total luminous flux | 18000 lm |
| Total driver 'FOV' flux † | 12815 lm |
| Colour temperature | 5000K |
| Number of high-output LEDs | 48 |
| Power consumption | 188 W |
| Current draw (at 14.4V) | 14.4 A |
| Certification | |
| High beam | ECE R112 |
| ECE reference | 2x30 (2 × 17.5 - With E-Mark Cap) |
| Dimensions | |
| Width | 682mm |
| Depth | 62 mm |
| Height | 40 mm |
| Photometric data | |
| Horizontal beam angle | 64 degrees |
| 0.25 lx line | 1126 m |
| 0.5 lx line | 796 m |
| 1 lx line | 563 m |
| 3 lx line | 325 m |
Road approval: Yes† (Ref 2x30 / 2x17.5)
† - Double E-Mark Approved (UN ECE Reg112/149)
