Part no. GK-RAV4-02K/GK-RAV4-ELITE-02K/GK-RAV4-ILBA-02K
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

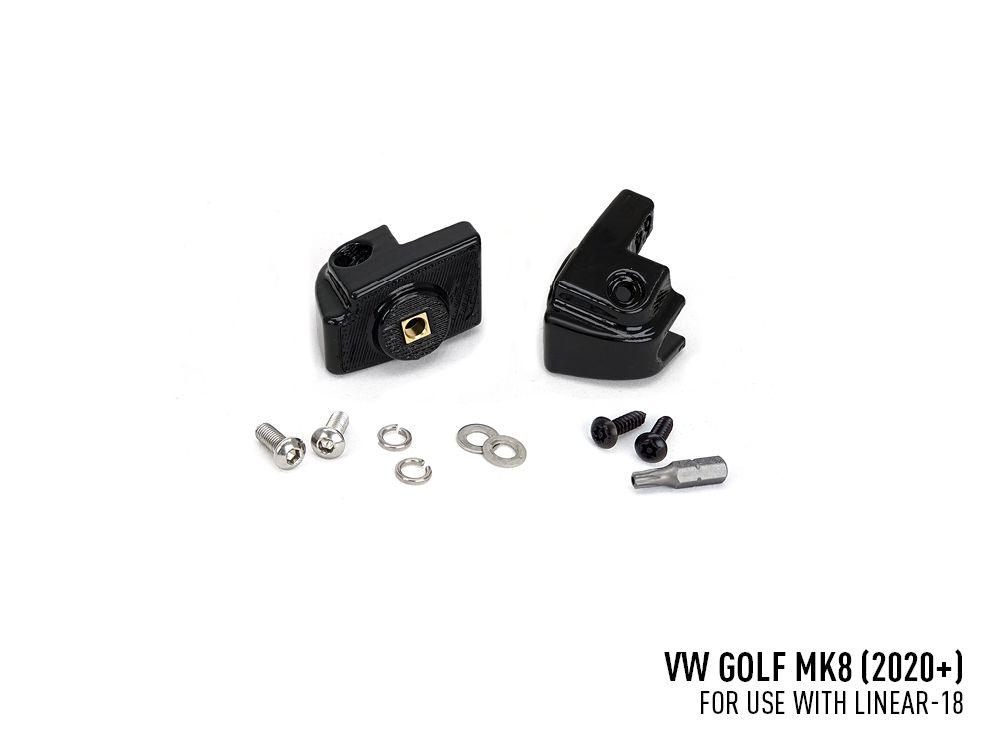

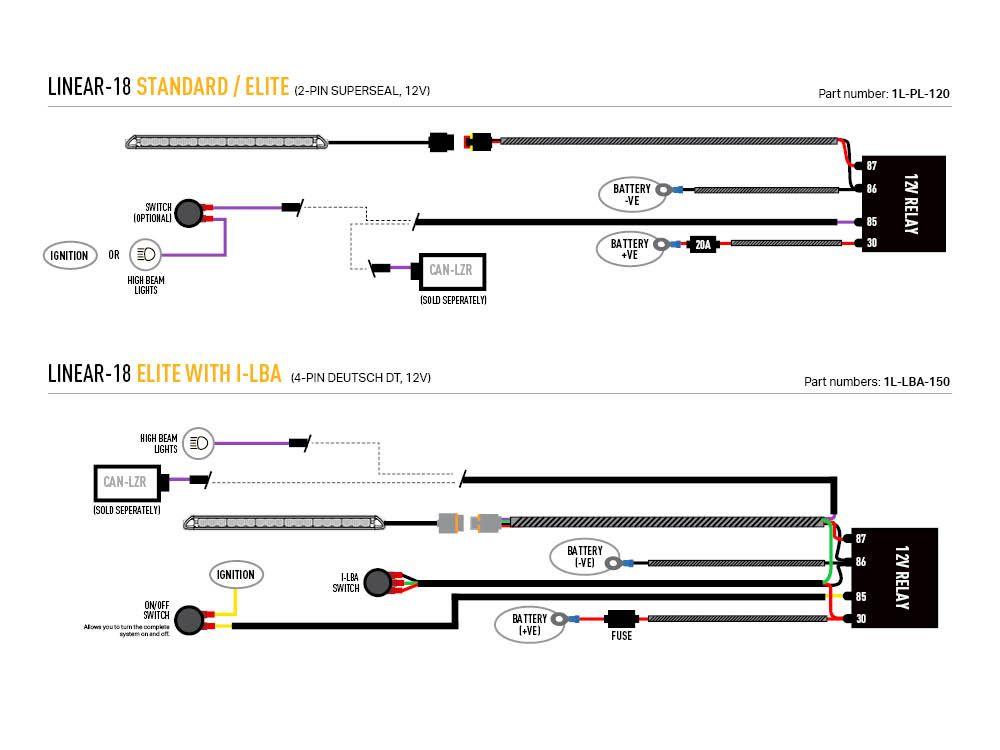

The VW Golf MK8 kit, for vehicles produced since 2020, includes a Linear-18 (Standard, Elite or Elite with i-LBA grade) High Performance LED driving light, plus wiring kit, alongside a pair of brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Specifications:
1x Linear-18 |
1x Linear-18 Elite |
1x Linear-18 Elite i-LBA (E-Boost Mode) |
|
Voltage Range (DC) | 10-32V | 10-32V | 10-32V |
LED Life | 50,000 hours | 50,000 hours | 50,000 hours |
Weight | 1090 gr | 1090 gr | 1090 gr |
HIGH BEAM FUNCTION | |||
Total Luminous Flux | 6,750 Lm | 13,500 Lm | 18,000 Lm |
Total Driver 'FOV' Flux † | 4,806 Lm | 9,612 Lm | 12,816 Lm |
Colour Temperature | 5000K | 5000K | 5000K |
Number of High Output LEDs | 18 | 36 | 48 |
Power Consumption | 63 Watts | 130 Watts | 135 Watts |
Current Draw (at 14.4V) | 4.4 Amps | 9 Amps | 15 Amps |
CERTIFICATION | |||
High Beam | ECE R112 | ECE R112 | ECE R112 |
ECE Reference | 30 | 2x25 (2x 10 - With E-Mark Cap) |
N/A (17.5 - E-Mark Mode) |
PHOTOMETRIC DATA | |||
Horizontal Beam Angle | 56° | 64° | 60° |
0.25 lx Line | 855m | 1023m | 1043m |
0.5 lx Line | 605m | 723m | 738m |
1 lx Line | 428m | 511m | 522m |
3 lx Line | 247m | 295m | 301m |
Approved for road use: Yes |
