Part no. GK-RAV4-02K/GK-RAV4-ELITE-02K/GK-RAV4-ILBA-02K

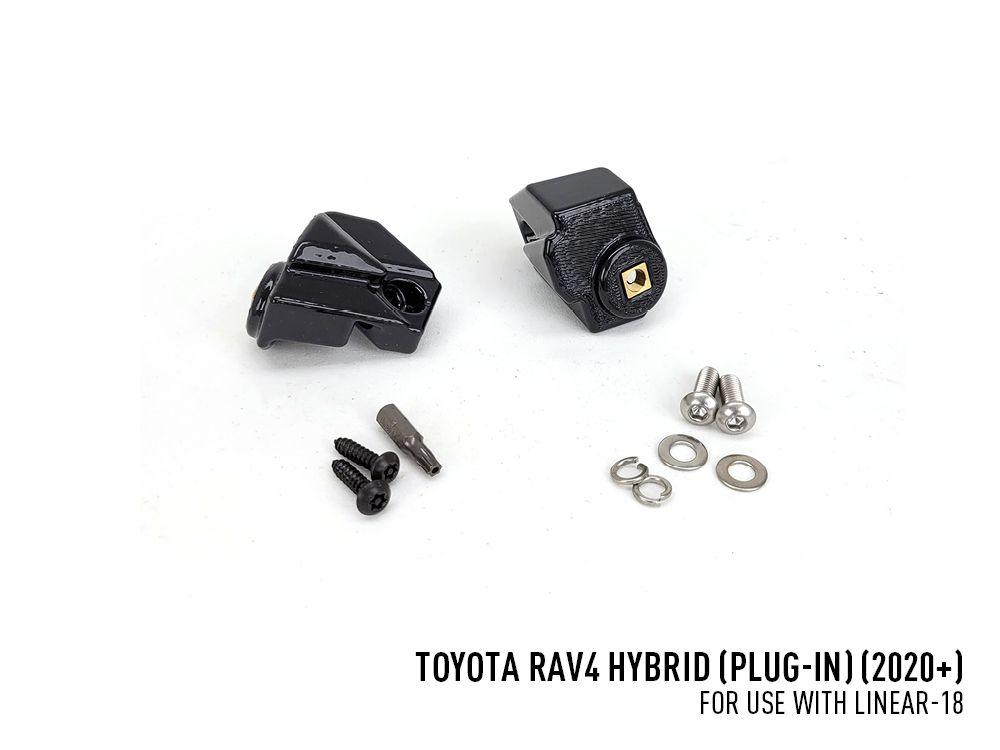

For an OE quality, auxiliary lightbar installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lightbars within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

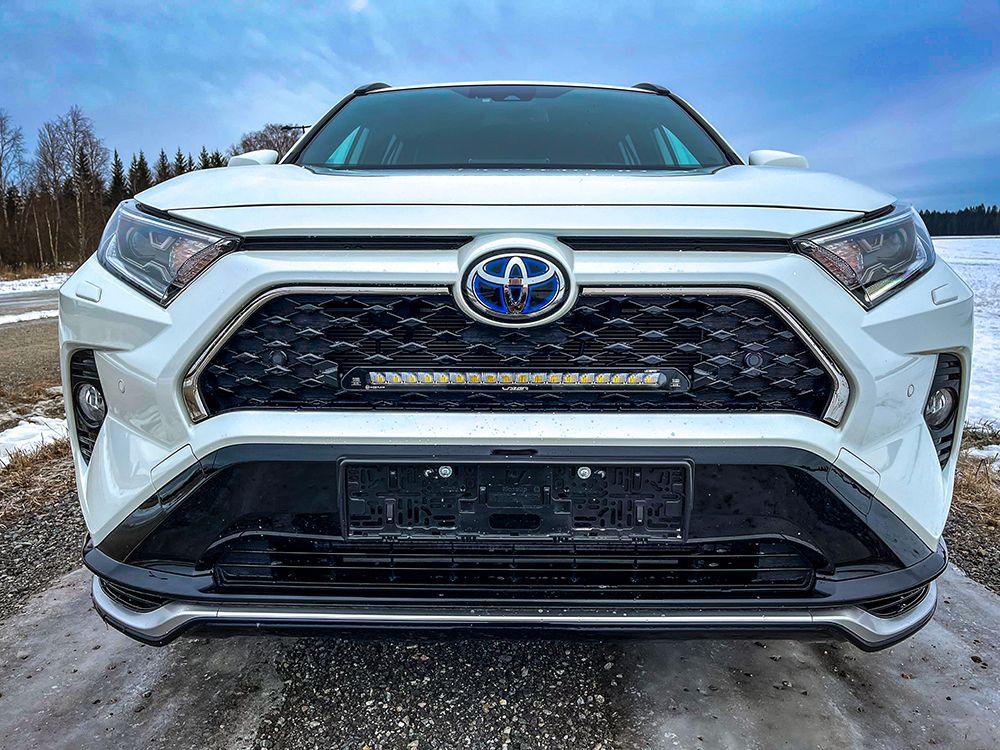

The Toyota RAV4 Plug-In Hybrid, for vehicles produced since 2020+, includes a Linear-18 (Standard, Elite, Elite+ or Elite with i-LBA grade) High Performance LED driving light, plus wiring kit, alongside a pair of brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.
The Toyota RAV4 Plug-In Hybrid (2020+) Grille Integration Kit is carefully engineered and optimised for use with our Linear-18 High Performance LED light.
Specifications:
| 1x Linear-18 |
1x Linear-18 Elite |
1x Linear-18 Elite i-LBA (E-Boost Mode) |
|
| Voltage Range (DC) | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours | 50,000 hours |
| Weight | 1090 gr | 1090 gr | 1090 gr |
| HIGH BEAM FUNCTION | |||
| Total Luminous Flux | 6,750 Lm | 13,500 Lm | 18,000 Lm |
| Total Driver 'FOV' Flux † | 4,806 Lm | 9,612 Lm | 12,816 Lm |
| Colour Temperature | 5000K | 5000K | 5000K |
| Number of High Output LEDs | 18 | 36 | 48 |
| Power Consumption | 63 Watts | 130 Watts | 135 Watts |
| Current Draw (at 14.4V) | 4.4 Amps | 9 Amps | 15 Amps |
| CERTIFICATION | |||
| High Beam | ECE R112 | ECE R112 | ECE R112 |
| ECE Reference | 30 | 2x25 (2x 10 - With E-Mark Cap) |
N/A (17.5 - E-Mark Mode) |
| PHOTOMETRIC DATA | |||
| Horizontal Beam Angle | 56° | 64° | 60° |
| 0.25 lx Line | 855m | 1023m | 1043m |
| 0.5 lx Line | 605m | 723m | 738m |
| 1 lx Line | 428m | 511m | 522m |
| 3 lx Line | 247m | 295m | 301m |
Approved for road use: Yes |
