Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.
The Linear range is available in a variety of sizes from the 232mm (9”) Linear-6 to the 1282mm (51”) Linear-48. With the exception of the range topping Linear-48, all Linear products are fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use). Elite level products are also available across Linear-6/12/18 product lines with these products boasting twice the light output compared to the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lights are also available with the option for integrated position light function providing added safety and styling benefits.

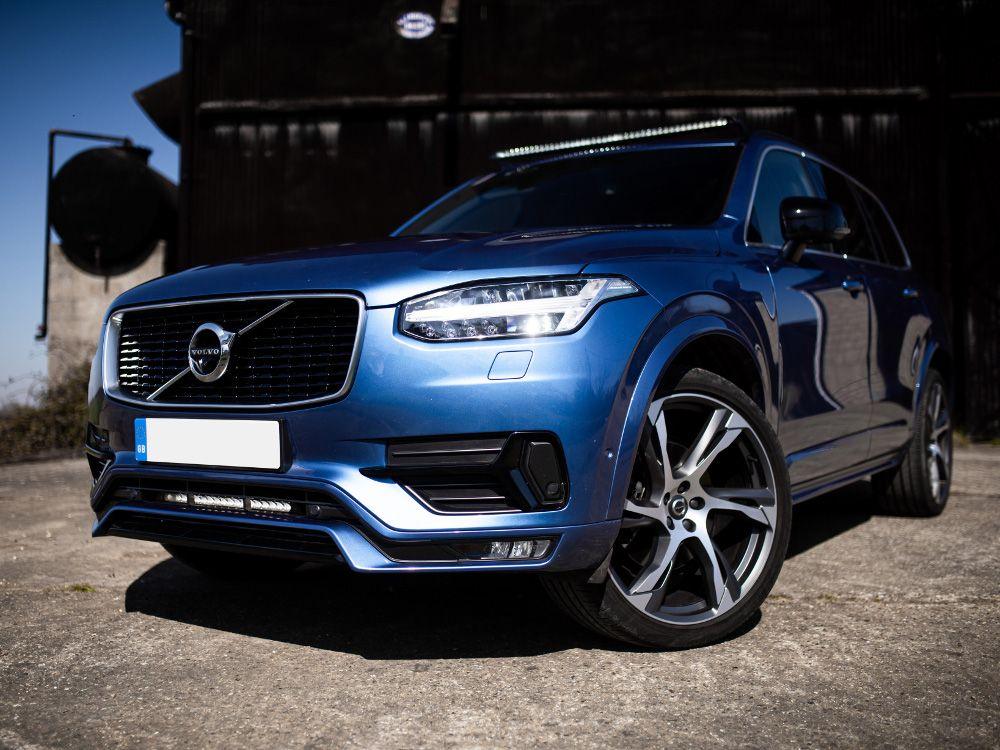

Based on: 1 × Linear-18 Elite with Position Light.
Specifications
Voltage range (DC)
10-32V
LED life
50,000 hours
Weight
1.09 kg
High beam function
Total luminous flux
12150 lm
Total driver 'FOV' flux †
8651 lm
Colour temperature
5000K
Number of high-output LEDs
36
Power consumption
126 W
Current draw (at 14.4V)
8.8 A
Certification
High beam
ECE R112
ECE reference
45
Position light
ECE R7
Dimensions
Width
532 mm
Depth
62 mm
Height
40 mm
Photometric data
Horizontal beam angle
64°
0.25 lx line
975 m
0.5 lx line
690 m
1 lx line
488 m
3 lx line
282 m
What's included
1 × Linear-18 Elite (with Position Light) LED Lamp
