Part no. 0L18-LBA-B
A world first, utilising patent-pending technology, the Linear-18 Elite with Intelligent Low Beam Assist redefines the performance and functionality of auxiliary LED driving lights. A combination of the latest high-efficiency LEDs delivers a finely-tuned beam pattern, optimised for road use, that is simply unrivalled considering the lamps slimline proportions. Additionally, through the adoption of 2 photoelectric sensors embedded within the driving light, when the high beam light is turned off, the transition from high beam driving lights is significantly enhanced as the lamp maintains higher levels of illumination in zones where there is confirmed no oncoming vehicles or obstacles.
Incorporating an arrangement of 48 LEDs, each lamp produces an incredible 18,000 raw lumen, nearly 50% more than the market-leading Linear-18 Elite. The superior light output on the one hand delivers exceptional distance illumination with 1 lux at 522m, and on the other an incredible 60 degrees of left/right spread for our safest and most relaxing night drive experience.
The lamp is ECE certified to Regulation 112 as a high beam driving light, and through dual-output E-Boost technology the light output can be increased above ECE Reg112 limits when off-road, or where specific country-law allows. The Intelligent Low Beam Assist function is not an approved low beam driving light, but is patent-pending technology designed to smooth the transition from your high beam driving lights.
Based on: 1x Linear-18 Elite with i-LBA.
| E-Boost | E-Mark Mode | |
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 1.1 kg | 1.1 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux |
18000 Lm |
5538 Lm |
| Total Driver 'FOV' Flux † | 12816 Lm | 3943 Lm |
| Colour Temperature | 5000k | 5000k |
| Number of High Output LEDs | 48 | 48 |
| Power Consumption | 135 Watts | 43 Watts |
| Current Draw (at 14.4V) | 10.4 Amps | 3.2 Amps |
| CERTIFICATION | ||
| High Beam | N/A | ECE R112 |
| E-Mark Ref | N/A | 17.5 |
| PHOTOMETRIC DATA | ||
| Horiz Beam Angle | 60° | 60° |
| 0.25 lx Line | 1043m | 571m |
| 0.5 lx Line | 738m | 404m |
| 1 lx Line | 522m | 286m |
| 3 lx Line | 301m | 165m |

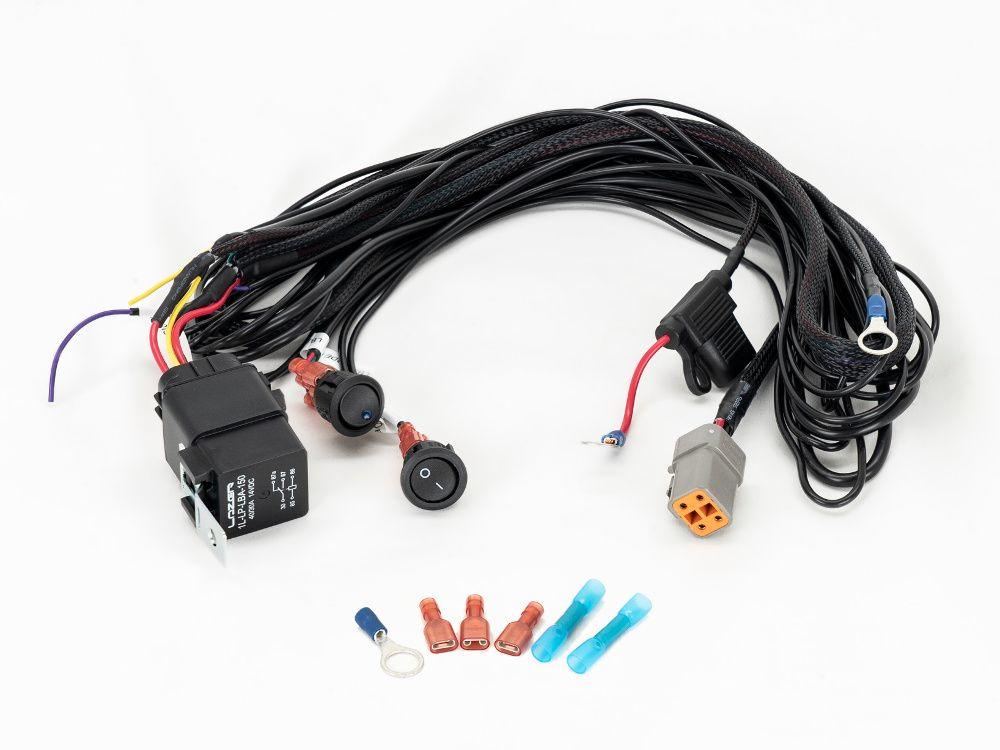

What's included
Approved for road use: Yes *(Ref 17.5) |
| * - Lamp uses dual-output technology. For road use (UNECE Reg112/149), the lamp can operate at a lower output to either achieve the regulation, or a lower reference number, but requires an 'E-Mark Cap' sold separately (Part No - EMARK-LNR). |
