Representing an evolution in our highest performance LED lighting solutions, the Elite+ range comprises products with enhanced performance, light distribution, and functionality. Improvements are in part made through the placement of supplemental yellow LEDs in each of the lights, which can either combine with the already superior white light high beam function for awe-inspiring night-time visibility at a slightly softer, more relaxing colour temperature. Or the option to operate the yellow LEDs on their own, with that light angled slightly down and to the sides of the road or track making this function ideal in snow, fog, or dust conditions.
The lights are intended to cycle through the different lighting modes via a momentary switch. The lighting modes are: Boost (white only), Combo (white + yellow), Snow/Fog/Dust Mode (yellow only), and E-mark (white only; road-legal at reduced output compliant with UNECE Reg 149). A memory function within the lamp means the previous mode selected will be in effect when your vehicle is restarted for example. Additionally, pressing and holding the momentary switch for 2 seconds will result in the light instantly jumping to the E-mark mode.
Based on: 1 × Linear-18 Elite+ LED Lamp.
SPECIFICATIONS
White LED's (E-Boost / E-Mark Mode)
Yellow LED's (Fog / Dust / Snow Mode)
White & Yellow LED's (Combo Mode)
Voltage range (DC)
10-32V
10-32V
10-32V
LED life
50,000 hours
50,000 hours
50,000 hours
Weight
1.09 kg
1.09 kg
1.09 kg
High beam function
Total luminous flux
14850 / 4455 lm
6150 lm
21000 lm
Total driver 'FOV' flux †
10573 / 3172 lm
3737 lm
14284 lm
Colour temperature
5000K
PC Yellow
N/A
Number of high-output LEDs
36
18
36 White / 18 Yellow
Power consumption
134 W / 39 W
56 W
190 W
Current Draw
9.9 A / 2.7 A
4.1 A
14.1 A
Peak current draw
13.3 A / 3.8 A
6.1 A
19 A
Certification
High beam
ECE R149
N/A
ECE reference
27.5
Dimensions
Width
532 mm
532 mm
532 mm
Depth
62 mm
62 mm
62 mm
Height
40 mm
40 mm
40 mm
Photometric data
Horizontal beam angle
84 o
84 o
84 o
0.25 lx line
1152m / 694m
472m
1217m
0.5 lx line
815m / 491m
334m
860m
1 lx line
576m / 347m
236m
608m
3 lx line
333m / 200m
136m
351m
WHAT'S INCLUDED
Linear-18 Elite+ LED Lamp
Anti-Theft Side Mount (1127K)

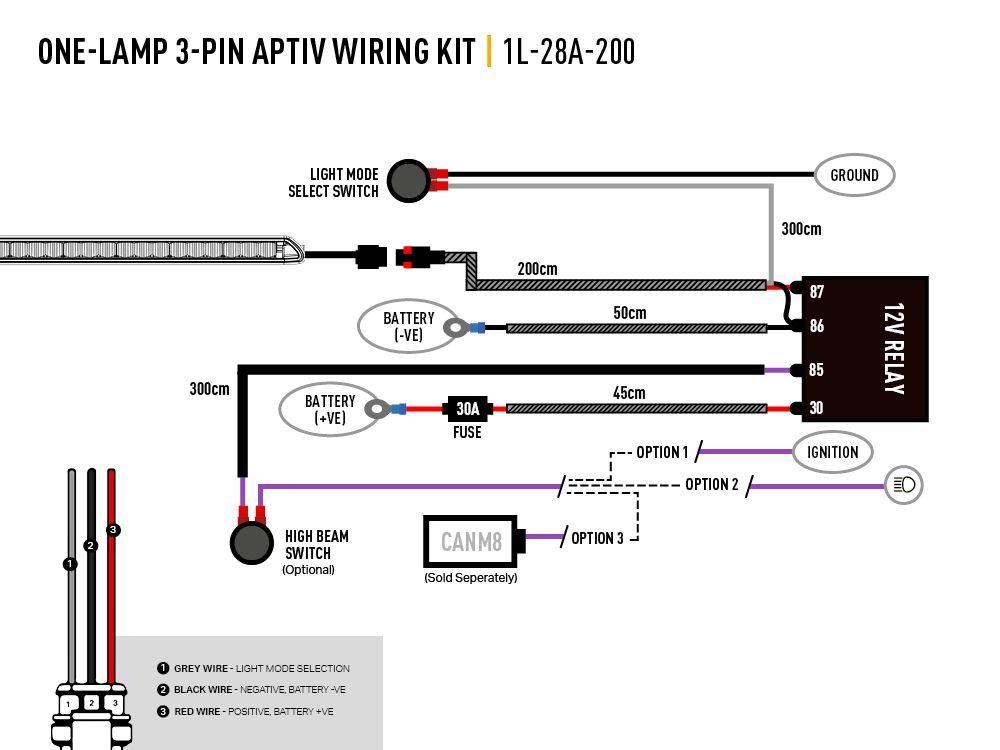

Single-Lamp Wiring Kit (1L-28A-200)
Installation instructions
Road approval: Yes *(Ref TBC)
* - Lamp uses dual-output technology. For road use (UNECE Reg112/149), the lamp can operate at a lower output to either achieve the regulation, or a lower reference number, but requires an 'E-Mark Cap' sold separately (Part No - EMARK-LNR).
