Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.
The Linear range is available in a variety of sizes from the 232mm (9”) Linear-6 to the 1282mm (51”) Linear-48. With the exception of the range topping Linear-48, all Linear products are fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use). Elite level products are also available across Linear-6/12/18/24 product lines with these products boasting twice the light output compared to the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lights are also available with the option for integrated position light function providing added safety and styling benefits.
Linear-18 Elite and Linear-24 Elite lights support dual-output functionality, where in certain countries the requirement is for a lower UNECE E-mark reference. The lower output mode is enabled through application of the ‘Linear E-mark Cap’ – sold separately.
SPECIFICATIONS
Voltage range (DC)
10-32V
LED life
50,000 hours
Weight
1.09 kg
High beam function
Total luminous flux
13,500 lm
Total driver 'FOV' flux †
9,612 lm
Colour temperature
5000K
Number of high-output LEDs
36
Power consumption
130 W
Current draw (at 14.4V)
9 A
Certification
High beam
ECE R112
ECE reference
2x25 (2 × 10 - With E-Mark Cap)
Dimensions
Width
532 mm
Depth
62 mm
Height
40 mm
Photometric data
Horizontal beam angle
64°
0.25 lx line
1023m
0.5 lx line
723m
1 lx line
511m
3 lx line
295m
WHAT'S INCLUDED

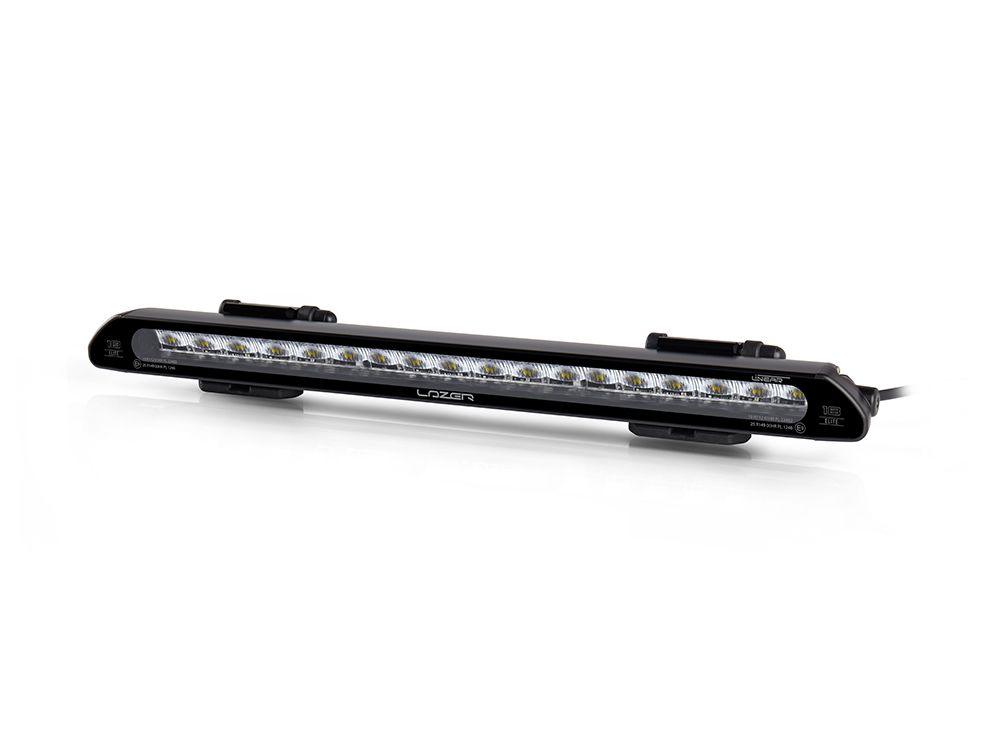

Linear-18 Elite (Double E-Mark) LED Lamp
Anti-Theft Side Mount (1127K)
Installation instructions
Road approval: Yes † *(Ref 2x25 / 2x10)
* - Lamp uses dual-output technology. For road use (UNECE Reg112/149), the lamp can operate at a lower output to either achieve the regulation, or a lower reference number, but requires an 'E-Mark Cap' sold separately (Part No - EMARK-LNR).
