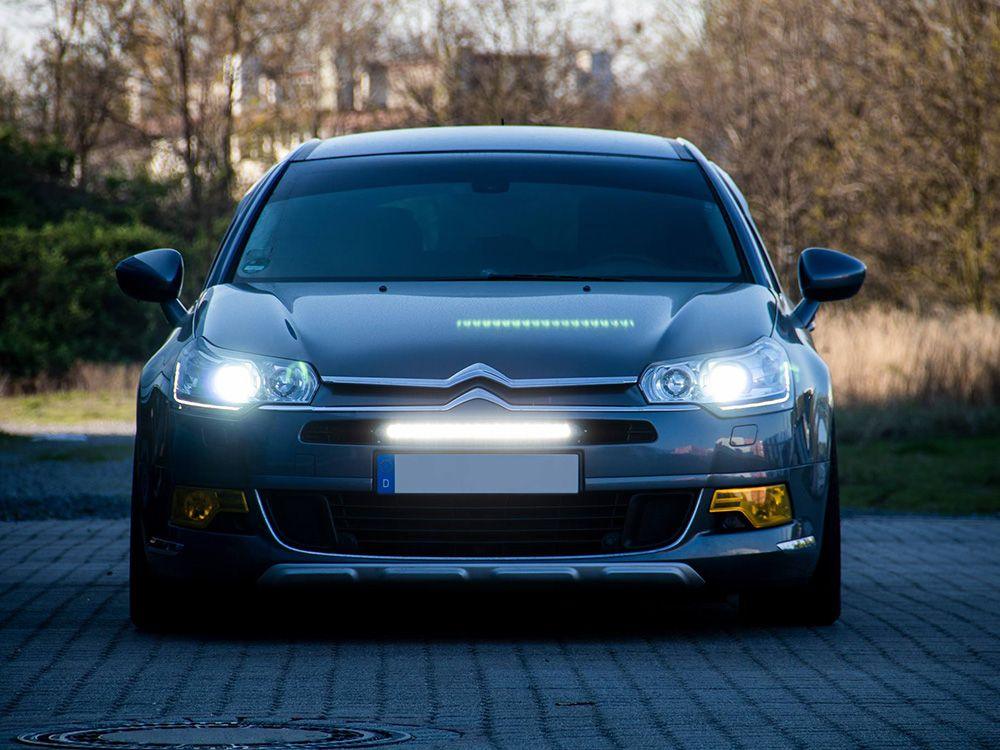

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.
The Linear range is available in a variety of sizes from the 232mm (9”) Linear-6 to the 1282mm (51”) Linear-48. With the exception of the range topping Linear-48, all Linear products are fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use).
Based on: 1 × Linear-18 LED Lamp.
SPECIFICATIONS
Voltage range (DC)
10-32V
LED life
50,000 hours
Weight
1.09 kg
High beam function
Total luminous flux
6750 lm
Total driver 'FOV' flux †
4806 lm
Colour temperature
5000K
Number of high-output LEDs
18
Power consumption
63 W
Current draw (at 14.4V)
4.4 A
Certification
High beam
ECE R112
ECE reference
30
Dimensions
Width
532 mm
Depth
62 mm
Height
40 mm
Photometric data
Horizontal beam angle
56°
0.25 lx line
855 m
0.5 lx line
605 m
1 lx line
428 m
3 lx line
247 m
WHAT'S INCLUDED
1 × Linear-18 LED Lamp
1 × Side Mount (1126K)
Installation instructions
