Part no. 0L12-PL-LNR
Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.
The Linear range is available in a variety of sizes from the 232mm (9”) Linear-6 to the 1282mm (51”) Linear-48. With the exception of the range topping Linear-48, all Linear products are fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use). Elite level products are also available across Linear-6/12/18 product lines with these products boasting twice the light output compared to the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lights are also available with the option for integrated position light function providing added safety and styling benefits.

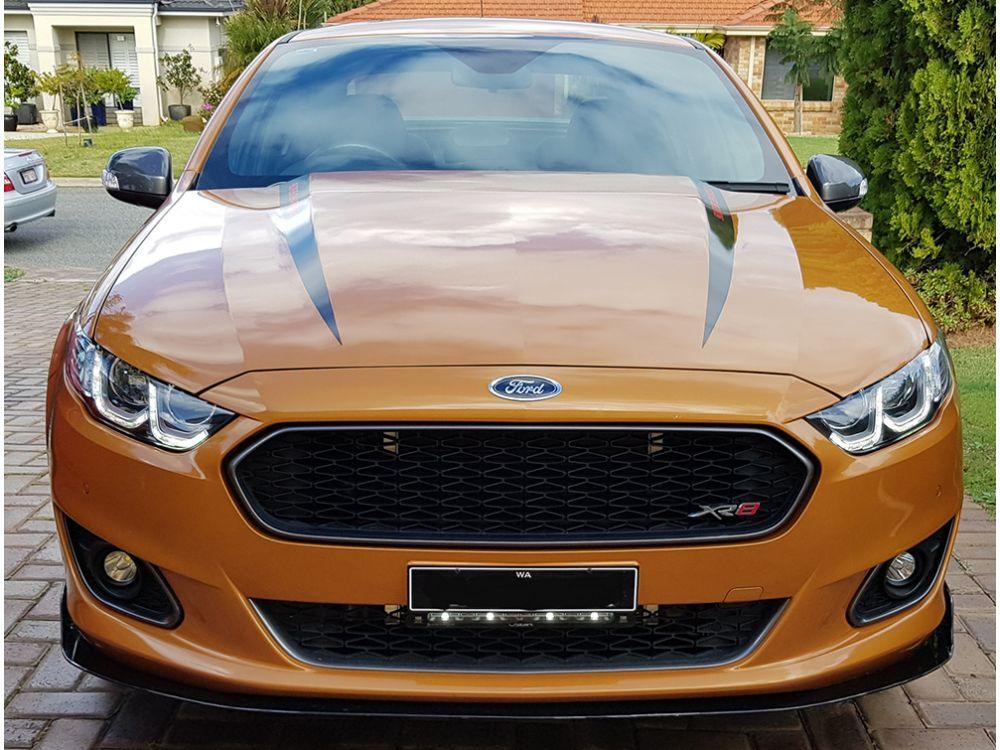

Based on: 1x Linear-12 Elite with Position Light.
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 800 gr |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 8100 Lm |
| Total Driver 'FOV' Flux † | 5767 Lm |
| Number of High Output LEDs | 24 |
| Power Consumption | 84 Watts |
| Current Draw (at 14.4V) | 5.8 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 37.5 |
| Position Light | ECE R7 |
| DIMENSIONS | |
| Width | 382 mm |
| Depth | 62 mm |
| Height | 40 mm |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 64 Degrees |
| 0.25 lx Line | 796 metres |
| 0.5 lx Line | 563 metres |
| 1 lx Line | 398 metres |
| 3 lx Line | 230 metres |
Whats included
Approved for road use: Yes |
