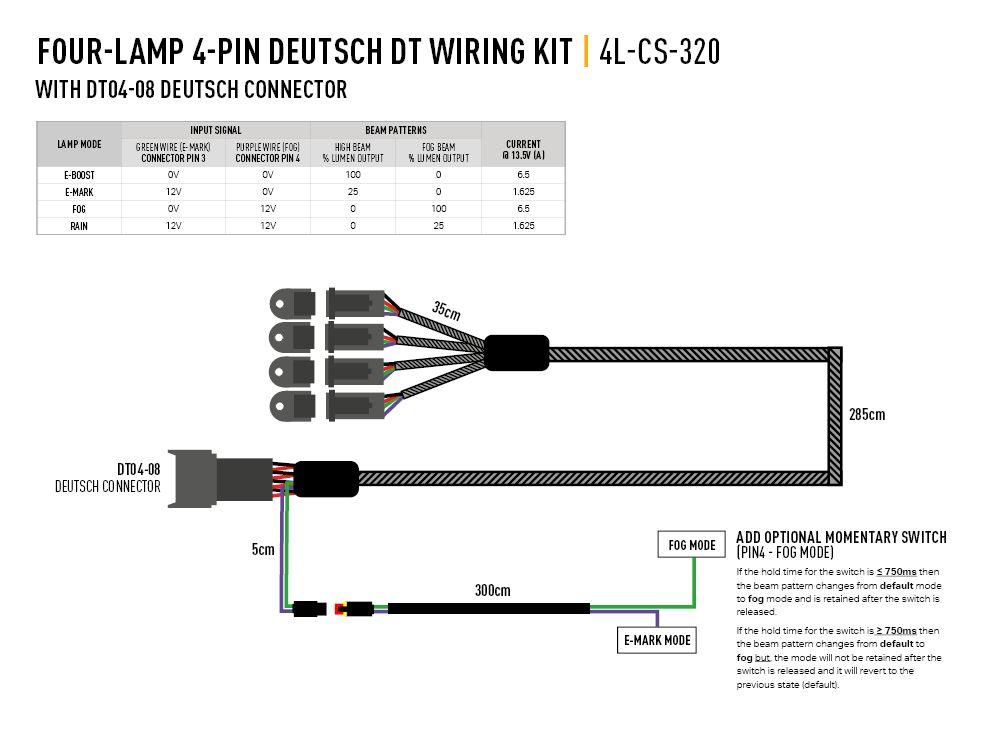

Part no. 4L-CS-320
The ideal solution for wiring 4x Lazer Carbon-6 (Gen3) High Performance LED Driving Lights, where the vehicle side connection is compatible with an DT04-08 Deutsch Connector. The resulting setup is quick, easy, and reliable with Deutsch DT06-4S lamp connectors and no configuration procedures. The kit features 3.2m of flex on the lamp cable(s) to the 8-pin DT04-08 Connector (compatible with Citroen C3 rally cars as an example).
Additional signal wires from the DT04-08 Connector are included for operation of lamps’ in either: ‘Fog’ mode (purple wire), or ‘E-mark’ mode (green wire).
All Carbon-6 (Gen3) LED Driving Lights feature a corresponding built-in DT04-4P Deutsch Connector (with gold plated solid DT contacts).
Specifications:
Four-Lamp Wiring Kit for Carbon-6 (Gen3) LED spotlights / 4-Way Rally Pod System
2m cable lengths
DT04-08 Deutsch connections
Includes on/off switch for independent operation of lights
Braided cable sections for added protection in engine bay
