Designed to fit Skoda R5 rally cars, the Lazer Lamps Corner Rally Pods utilise our Linear-6 Elite high-performance LED spotlights pre-mounted within lightweight and aerodynamic Glass & Carbon-fibre composite pods. Carefully selected for their superior light output and low-profile design, the light output from the corner pods delivers short to mid-range corner lighting which compliments perfectly the long-range illumination provided by our 4-Way Bonnet Pods.
With each pod weighing 0.85kg, this is a corner lighting solution which delivers weight saving gains over traditional systems, while simultaneously delivering lighting performance unrivalled considering the lamps’ size and low power consumption. Moreover, the products are designed, engineered, and manufactured in the UK to the most exacting standards, and benefit from input received from the very highest levels of professional rally motorsport.
SPECIFICATIONS Based on: 1 × Linear-6 Elite LED Lamp.
Voltage range (DC)
10-32V
LED life
50,000 hours
Weight
495 g
High beam function
Total luminous flux
4050 lm
Total driver 'FOV' flux †
2884 lm
Colour temperature
5000K
Number of high-output LEDs
12
Power consumption
42 W
Current draw (at 14.4V)
2.9 A
Certification
High beam
ECE R112
ECE reference
17.5
Dimensions
Width
232 mm
Depth
62 mm
Height
40 mm

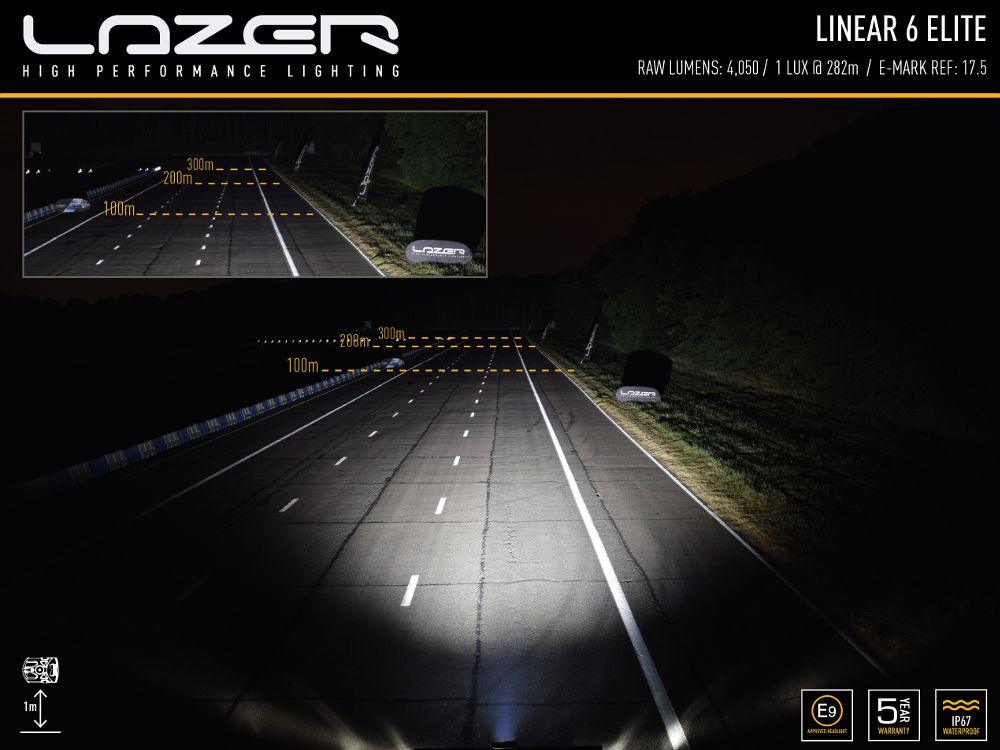

Photometric data
Horizontal beam angle
64 degrees
0.25 lx line
563 m
0.5 lx line
398 m
1 lx line
282 m
3 lx line
163 m
WHAT'S INCLUDED
1 × Left Hand Corner Pod (Linear-6 Elite pre-mounted)
1 × Right Hand Corner Pod (Linear-6 Elite pre-mounted)
