Part no. 0065-LH/0065-RH

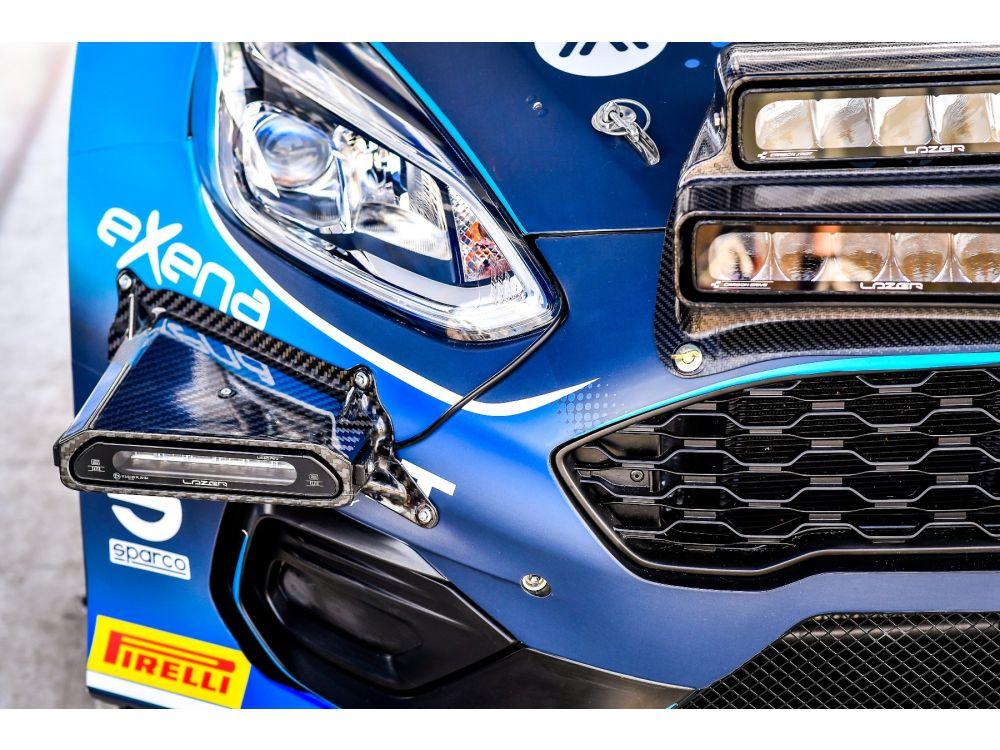

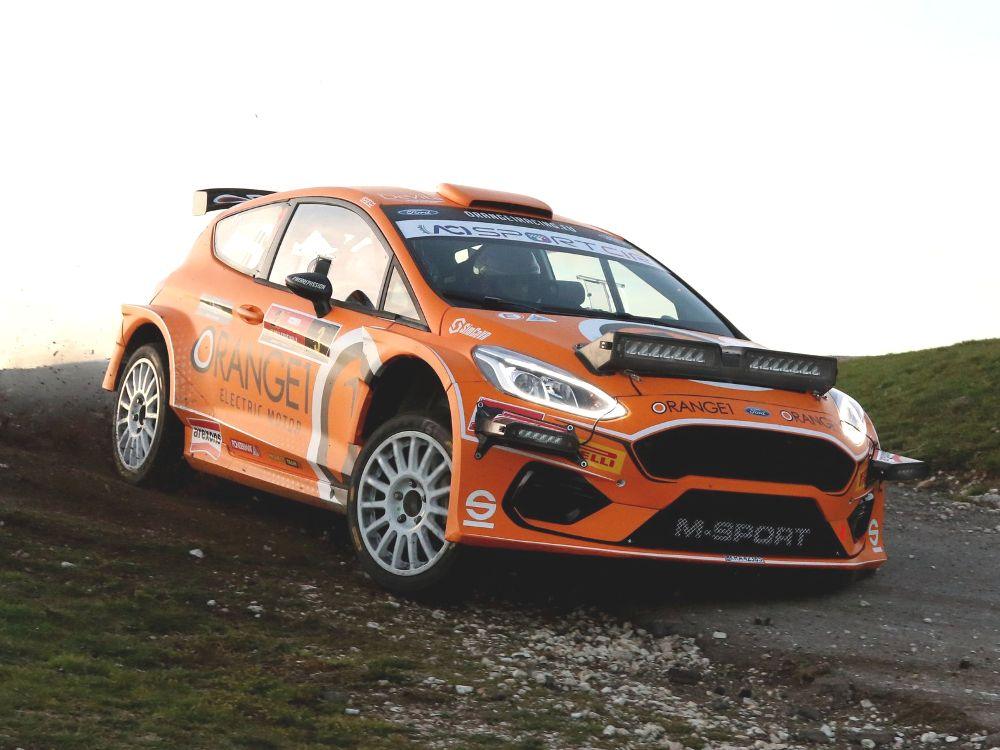

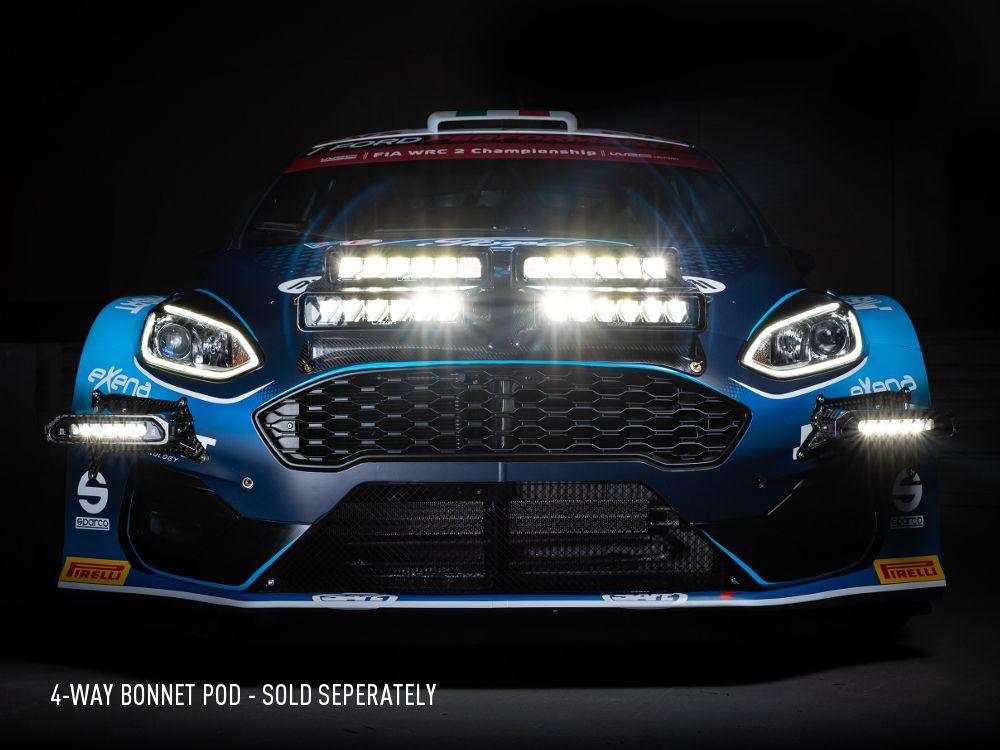

Designed to fit Fiesta R5 MKII rally cars, the Lazer Lamps Corner Rally Pods utilise our Linear-6 Elite high-performance LED spotlights pre-mounted within lightweight and aerodynamic Glass & Carbon-fibre composite pods. Carefully selected for their superior light output and low-profile design, the light output from the corner pods delivers short to mid-range corner lighting which compliments perfectly the long-range illumination provided by 4-Way Bonnet Pods.
With each pod weighing 0.85kg, this is a corner lighting solution which delivers weight saving gains over traditional systems, while simultaneously delivering lighting performance unrivalled considering the lamps’ size and low power consumption. Moreover, the products are designed, engineered, and manufactured in the UK to the most exacting standards, and benefit from input received from the very highest levels of professional rally motorsport.
Specifications:
Based on: 1x Linear-6 Elite LED Lamp.
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 495 gr |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 4050 Lm |
| Total Driver 'FOV' Flux † | 2884 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 12 |
| Power Consumption | 42 Watts |
| Current Draw (at 14.4V) | 2.9 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 17.5 |
| DIMENSIONS | |
| Width | 232 mm |
| Depth | 62 mm |
| Height | 40 mm |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 64 degrees |
| 0.25 lx Line | 563 metres |
| 0.5 lx Line | 398 metres |
| 1 lx Line | 282 metres |
| 3 lx Line | 163 metres |
Approved for road use: Yes |
