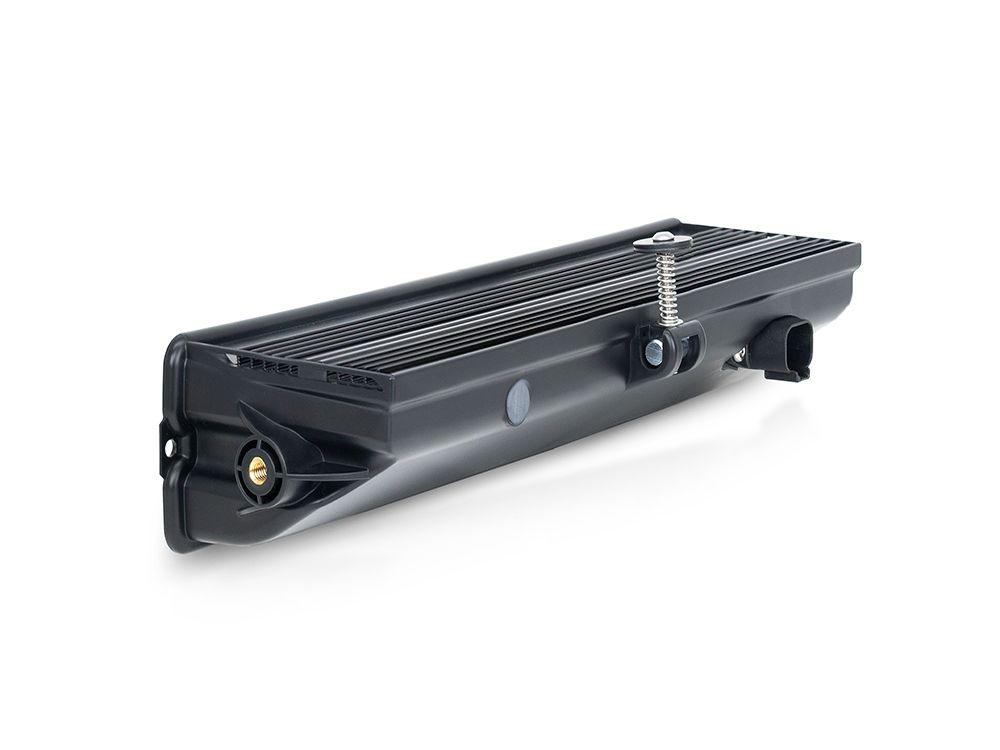

The 3rd generation of Carbon-6 LED driving lights represent years of continued development and testing at the very highest levels of professional rally and track motorsport. The re-design and re-engineering of the products delivers more light, less weight, and greater functionality, compared to previous iterations. Available as ‘SPOT’ or ‘DRIVE’ beam pattern, each light can operate in four modes:
FULL BEAM (100% output, ‘high beam’ pattern
FOG BEAM (100% output ‘fog beam’ pattern)
E-MARK MODE (25% output, ‘high beam’ pattern)
RAIN MODE (25% output, ‘fog beam’ pattern)
Additional lighting modes are also possible for race teams who want maximum flexibility, by application of a PWM signal from the vehicle.
Specifications
Voltage range: 10-32V
LED life: 50,000 h
Weight: 450 g
Total luminous flux 9360 lm
Color temperature: 5000K
Number of high output LEDs: 6
Power consumption: 85 W
Current draw (at 14.4V): 5.9 A
Start up Time: 5ms
What's included
1 × Carbon-6 Drive LED Lamp
1 × Amber Lens Cover
1 × Black Lens Cover
Installation instructions
Road approval: Yes (12.5)
Can-Bus add on:
LAZER Can-Bus Contactless Reader (to work with CAN-LZR) / 125.- (incl. tax)
Allows for reading the CAN-Hi and CAN-Lo vehicle data without any actual metal to metal connection between the interface and the vehicle CAN wiring. The reader is secured around a section of the vehicle CAN Bus wiring and data is read by an induction method, thus protecting any manufacturers warranty.
Provides an effective solution for detecting both High Beam and Side/Position Light activity, where it is not possible to detect a 12v signal at the back of the standard headlamps.
