Part no. 00C2-SPOT-G3-SFIX
Now in its 3rd generation, the Carbon Series LED driving lights represent years of continued development and testing at the very highest levels of professional rally, track, and off-road motorsport. The re-design and re-engineering of the products delivers more light, less weight, greater functionality, and ease of fitment.

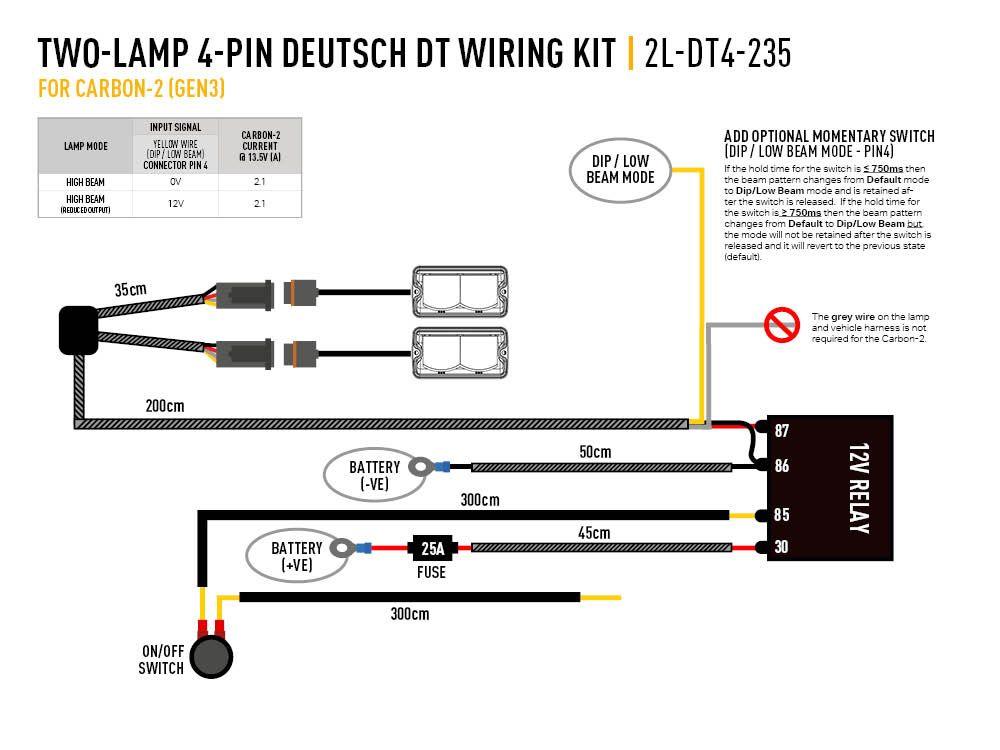

With a weight of just 240 grams, the Carbon-2 (Gen3) comes with the option for either a ‘Spot’ or ‘Drive’ beam pattern. The Spot version delivers 1 lux to 454m (per lamp) with a 32 degree left/right spread. By contrast the Drive version provides a wider left/right spread of light equivalent to 60 degrees with the compromise being that the 1 lux line reaches measures at 265m. As well as operating in ‘High Beam’ mode, the lights can also be easily switched to a ‘Dip / Low Beam’ mode during operation, a function shared with other lamps in the Carbon Series range. In the Dip / Low Beam mode, the beam pattern drops by around 4 degrees, giving the driver an option to reduce glare in case of road signs during a rally stage, or in case of dust or fog in case of difficult race/road conditions.
Technical Specifications
Based on: 1x Carbon-2 Spot.
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| IP Rating | IP68 |
| Weight | 232g |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 3120 Lm |
| Total Driver 'FOV' Flux † | 1839 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 12 |
| Power Consumption | 29 W |
| Peak Current Draw (11V) | 2.6 A |
| Current Draw (14.4V) | 2.1 A |
| DIMENSIONS | |
| Width | 116mm |
| Depth | 85mm |
| Height | 62mm |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 32° |
| 0.25 lx Line | 908m |
| 0.5 lx Line | 642m |
| 1 lx Line | 454m |
| 3 lx Line | 262m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
Approved for road use: Yes |
