HKS Silent Hi-Power rear muffler for Mazda Demio, with a SUS304 stainless-steel body, a 94 mm tailpipe and 50 mm pipe connection.
FITMENT
Mazda Demio (DEJFS) June 2011–September 2014 — P3-VPS. Compatible with the factory mud flaps.
Mazda Demio (DE5FS) July 2007–August 2014 — ZY-VE, Sport and 15C trims.
Mazda Demio (DE3FS) July 2007–September 2014 — ZJ-VE, 2WD automatic. Excludes 4WD and manual-transmission cars; 13CV trim is unverified.
HKS lists the Japanese-market Demio applications above. For an export-market Mazda2, check the exact chassis, engine and rear-body arrangement before ordering.
SPECIFICATIONS
Part number: 32016-AZ006
Series: Silent Hi-Power, HP Type-H
Material: SUS304 stainless steel
Tailpipe outside diameter: 94 mm
Pipe diameter: 50 mm
One-piece rear muffler assembly

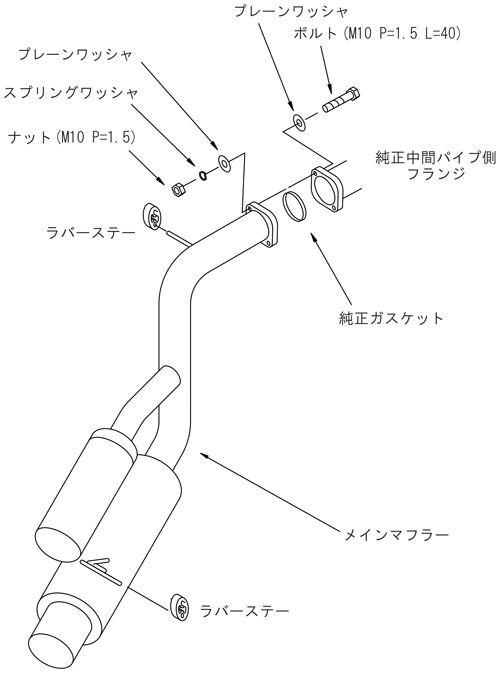

SUPPLIED PARTS Main muffler, two M10 bolts, two M10 nuts, four plain washers, two spring washers and two rubber mounting stays, as listed in the HKS instructions. Retain the factory flange gasket as shown in the installation diagram.
INSTALLATION NOTES Follow the chassis-specific instructions and check exhaust clearance after installation. The listed Japanese certification does not establish approval in other countries.
