HKS HIPERMAX S Coilovers Toyota Verossa / Mark II (JZX110 / GX110) 80300-AT008

HKS HIPERMAX S suspension kit for Toyota Verossa / Mark II, with adjustable ride height and damping. This is the original 80300-series specification.

FITMENT
Toyota Verossa (JZX110) 2001/07–2004/05 — 1JZ-GTE.
Toyota Verossa (GX110) 2001/07–2004/05 — 1G-FE.
Toyota Mark II (JZX110) 2000/10–2004/10 — 1JZ-GTE.
Toyota Mark II (JZX110) 2000/10–2004/10 — 1JZ-FSE.
Toyota Mark II (GX110) 2000/10–2004/10 — 1G-FE.

SPECIFICATIONS
Part number: 80300-AT008
Front and rear suspension kit
Spring rates, front/rear: F=137(14)/R=98(10) N/mm (kgf/mm in brackets)
Spring free lengths, front/rear: 200(Barrel)/220(Barrel) mm
Ride-height and damping adjustment; setup must follow the vehicle-specific manual

SUPPLIED PARTS

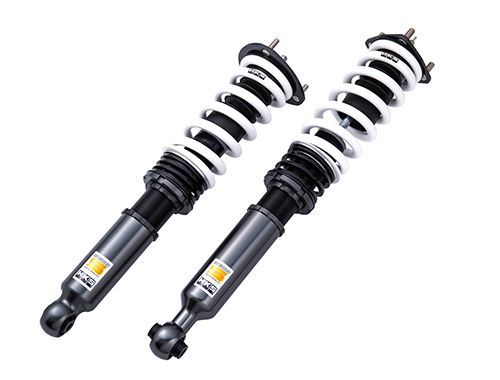

Front and rear damper and spring assemblies with the model-specific components listed in the HKS manual. The product photographs illustrate the suspension components.

INSTALLATION NOTES
Professional installation and wheel alignment are required. Set ride height and damping using the instructions for the exact chassis and engine. Confirm tyre, wheel and body clearances after installation.

HKS installation manual · HKS product details
