HKS HIPERMAX MAX IV SP Coilovers Toyota GR Supra (DB02 / DB42 / DB22 / DB82) 80250-AT003
2 721 €
/ per
Tax included.
Not in stock, available to order
Product description
HKS HIPERMAX MAX IV SP suspension kit with adjustable ride height and damping, matched to the applications below. This listing retains the original 80250-series specification.
FITMENT
Toyota GR Supra (DB02) 2020/04–onwards — B58.
Toyota GR Supra (DB42) 2019/05–onwards — B58.
Toyota GR Supra (DB22) 2019/05–onwards — B48.
Toyota GR Supra (DB82) 2019/05–onwards — B48.
DB42 and DB22 require a separate suspension error canceller. Use the manual settings for the exact chassis; DB22 and DB82 need adjustment from the DB42 setup. Changing ride height can affect the driver-assistance sensors, which must be checked after installation.
SPECIFICATIONS
Part number: 80250-AT003
Front and rear suspension kit
Damping adjustment: 30 steps, front and rear
Spring rates, front/rear: F=137(14)/R=176(18) N/mm (kgf/mm in brackets)
Spring free lengths, front/rear: 150/200 mm

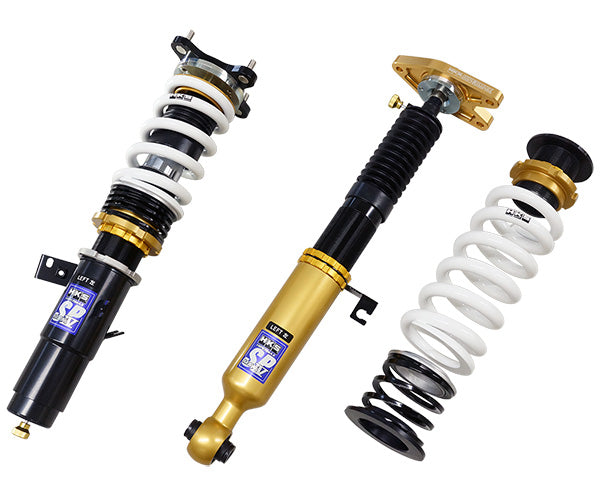

SUPPLIED PARTS Front and rear suspension components, springs and the fittings listed in the HKS instructions. Photographs illustrate the kit components and an installed vehicle.
INSTALLATION NOTES Professional installation and wheel alignment are required. Use the setup data for the exact chassis and check wheel, tyre and body clearances through the suspension travel.
