HKS HIPERMAX MAX IV SP Coilovers Toyota 86 / Subaru BRZ (ZN6 / ZC6) 80250-AT001

HKS HIPERMAX MAX IV SP suspension kit with adjustable ride height and damping, matched to the applications below. This listing retains the original 80250-series specification.

FITMENT
Toyota 86 (ZN6) 2012/04–2021/10 — FA20.
Subaru BRZ (ZC6) 2012/03–2021/07 — FA20.

Front camber-adjustable pillow-ball upper mounts are included.

SPECIFICATIONS
Part number: 80250-AT001
Front and rear suspension kit
Damping adjustment: 30 steps, front and rear
Spring rates, front/rear: F=78(8)/R=78(8) N/mm (kgf/mm in brackets)
Spring free lengths, front/rear: 170/150 mm

SUPPLIED PARTS

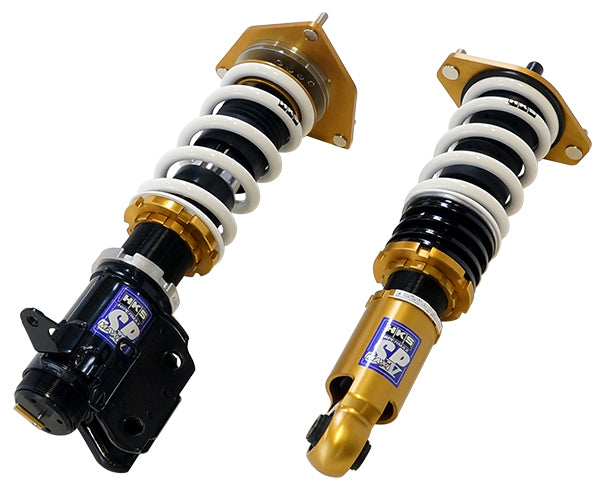

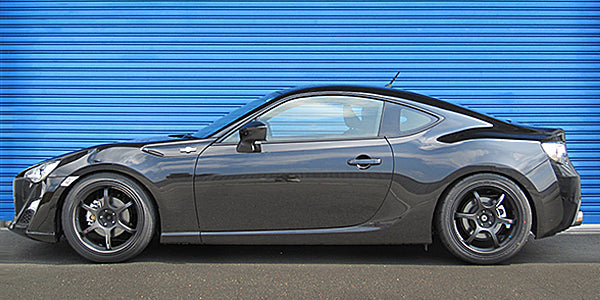

Front and rear suspension components, springs and the fittings listed in the HKS instructions. Photographs illustrate the kit components and an installed vehicle.

INSTALLATION NOTES
Professional installation and wheel alignment are required. Use the setup data for the exact chassis and check wheel, tyre and body clearances through the suspension travel.

HKS application, specifications and setup information
