Not in stock, available to order
Genuine Cusco Type RS mechanical limited-slip differential. Manufacturer part number - LSD803F. Supplied operating mode - 1 way.
FITMENT
| Vehicle | Production | Engine and drive | Position | Specification | Requirements |
|---|---|---|---|---|---|
| Toyota Land Cruiser Prado GRJ120W | 2002-10～ 2009-09 | 1GR-FE / 4000 / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Land Cruiser Prado GRJ121W | 2002-10～ 2009-09 | 1GR-FE / 4000 / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Hilux Surf GRN215W | 2002-11～ 2009-07 | 1GR-FE / 4000 / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Land Cruiser Prado KDJ120W | 2002-10～ 2009-09 | 1KD-FTV / 3000T / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Land Cruiser Prado KDJ121W | 2002-10～ 2009-09 | 1KD-FTV / 3000T / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Land Cruiser Prado KDJ125W | 2002-10～ 2009-09 | 1KD-FTV / 3000T / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Hilux Surf KDN185G | 1995-12～ 2002-11 | 1KD-FTV / 3000T / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Hilux Surf KDN185W | 1995-12～ 2002-11 | 1KD-FTV / 3000T / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Hilux Surf KDN215W | 2002-11～ 2009-07 | 1KD-FTV / 3000T / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Land Cruiser Prado KZJ90W | 1996-05～ 2002-10 | 1KZ-TE / 3000T / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Land Cruiser Prado KZJ95W | 1996-05～ 2002-10 | 1KZ-TE / 3000T / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Hilux Surf KZN130G | 1989-05～ 1995-12 | 1KZ-TE / 3000T / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Hilux Surf KZN130W | 1989-05～ 1995-12 | 1KZ-TE / 3000T / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Hilux Surf KZN185G | 1995-12～ 2002-11 | 1KZ-TE / 3000T / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Hilux Surf KZN185W | 1995-12～ 2002-11 | 1KZ-TE / 3000T / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Hilux Surf LN130G | 1989-05～ 1995-12 | 2L-TE / 2400T / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN Car before Aug 1990 must change the bearings TOYOTA standard parts#90368-50024 x2pieces |
| Toyota Hilux Surf LN130W | 1989-05～ 1995-12 | 2L-TE / 2400T / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Hilux Surf LN131V | 1989-05～ 1995-12 | 3L / 2800 / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN Car before Aug 1990 must change the bearings TOYOTA standard parts#90368-50024 x2pieces |
| Toyota Land Cruiser Prado RZJ120W | 2002-10～ 2009-09 | 3RZ-FE / 2700 / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Land Cruiser Prado RZJ125W | 2002-10～ 2009-09 | 3RZ-FE / 2700 / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Land Cruiser Prado RZJ90W | 1996-05～ 2002-10 | 3RZ-FE / 2700 / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Land Cruiser Prado RZJ95W | 1996-05～ 2002-10 | 3RZ-FE / 2700 / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Hilux Surf RZN185W | 1995-12～ 2002-11 | 3RZ-FE / 2700 / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Hilux Surf RZN215W | 2002-11～ 2009-07 | 3RZ-FE / 2700 / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Land Cruiser Prado TRJ120W | 2002-10～ 2009-09 | 2TR-FE / 2700 / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Land Cruiser Prado TRJ125W | 2002-10～ 2009-09 | 2TR-FE / 2700 / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Hilux Surf TRN215W | 2002-11～ 2009-07 | 2TR-FE / 2700 / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Land Cruiser Prado VZJ120W | 2002-10～ 2009-09 | 5VZ-FE / 3400 / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Land Cruiser Prado VZJ121W | 2002-10～ 2009-09 | 5VZ-FE / 3400 / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Land Cruiser Prado VZJ90W | 1996-05～ 2002-10 | 5VZ-FE / 3400 / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Land Cruiser Prado VZJ95W | 1996-05～ 2002-10 | 5VZ-FE / 3400 / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Hilux Surf VZN130G | 1989-05～ 1995-12 | 3VZ-E / 3000 / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Hilux Surf VZN130W | 1989-05～ 1995-12 | 3VZ-E / 3000 / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Hilux Surf VZN185W | 1995-12～ 2002-11 | 5VZ-FE / 3400 / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
| Toyota Hilux Surf VZN215W | 2002-11～ 2009-07 | 5VZ-FE / 3400 / 4WD | Rear | initial set up 1way(1&2way) | AT, OEM Diff：OPEN |
| Toyota Hilux Surf YN130G | 1989-05～ 1995-12 | 3Y-E / 2000 / 4WD | Rear | initial set up 1way(1&2way) | MT/AT, OEM Diff：OPEN |
Match chassis, engine, transmission and original differential specification to the applicable row before ordering. Position and installation requirements vary by vehicle.
PURCHASED PARTS PACKAGE
One limited-slip differential assembly in the listed specification.
INSTALLATION AND OPTIONS

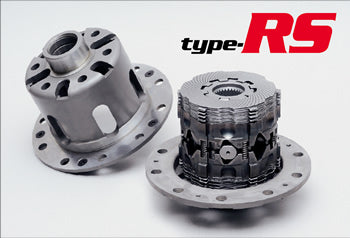

Professional installation and setup are required. Check application-specific seals, bearings and oil requirements. The manufacturer photo represents this differential family.
Manufacturer application reference.
OTHER DIFFERENTIALS FOR THE SAME VEHICLE
These alternatives share the application shown below. Check every restriction and the supplied operating mode before choosing.
Cusco Type RS 1 Way LSD - Toyota Land Cruiser Prado / Toyota Hilux Surf LSD803F
