Genuine Cusco Type MZ Spec-F mechanical limited-slip differential. Manufacturer part number - LSD160KT15. Supplied operating mode - 1.5 way.
FITMENT
| Vehicle | Production | Engine and drive | Position | Specification | Requirements |
|---|---|---|---|---|---|
| Toyota Supra GA70 | 1986-02～ 1993-05 | 1G-GTEU / 2000T / FR | Rear | 1.5way(1.5&2way) Spec-F | MT/AT, OEM Diff：OPEN |
| Toyota Supra GA70 | 1986-02～ 1993-05 | 1G-GEU, 1G-GTEU / 2000, 2000T / FR | Rear | 1.5way(1.5&2way) Spec-F | MT/AT, OEM Diff：OPEN |
| Toyota Crown GRS180 | 2003-12～ 2008-02 | 4GR-FSE / 2500 / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：OPEN Need TOYOTA oil seal |
| Toyota Crown GRS182 | 2003-12～ 2008-02 | 3GR-FSE / 3000 / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：OPEN Need TOYOTA oil seal |
| Toyota Crown GRS200 | 2008-02～ 2012-12 | 4GR-FSE / 2500 / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：OPEN Need TOYOTA oil seal |
| Toyota Crown GRS202 | 2008-02～ 2012-12 | 3GR-FSE / 3000 / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：OPEN Need TOYOTA oil seal |
| Toyota Crown GRS210 | 2012-12～ 2018-06 | 4GR-FSE / 2500 / FR | Rear | 1.5way(1.5&2way) Spec-F | 6AT, OEM Diff：OPEN Need TOYOTA oil seal |
| Toyota Crown GRS211 | 2012-12～ 2018-06 | 4GR-FSE / 2500 / 4WD | Rear | 1.5way(1.5&2way) Spec-F | 6AT, OEM Diff：OPEN Need TOYOTA oil seal |
| Toyota Mark X GRX120 | 2004-11～ 2009-10 | 4GR-FSE / 2500 / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：OPEN |
| Toyota Mark X GRX121 | 2004-11～ 2009-10 | 3GR-FSE / 3000 / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：OPEN |
| Toyota Mark X GRX130 | 2009-10～ 2019-10 | 4GR-FSE / 2500 / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：OPEN |
| Toyota Crown GS131 | 1987-09～ 1991-10 | 1G-GZE / 2000SC / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：OPEN |
| Lexus IS250 GSE20 | 2005-09～ | 4GR-FSE / 2500 / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：OPEN Need TOYOTA oil seal |
| Toyota Mark II GX81 | 1988-08～ 1992-10 | 1G-GE, 1G-FE / 2000 / FR | Rear | 1.5way(1.5&2way) Spec-F | NA model, AT, OEM Diff：OPEN |
| Toyota Mark II GX81 | 1988-08～ 1992-10 | 1G-GTE / 2000T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, AT, OEM Diff：OPEN |
| Toyota Mark II GX81 | 1988-08～ 1992-10 | 1G-GTE / 2000T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, AT, OEM Diff：LSD |
| Toyota Chaser GX81 | 1988-08～ 1992-10 | 1G-GE, 1G-FE / 2000 / FR | Rear | 1.5way(1.5&2way) Spec-F | NA model, AT, OEM Diff：OPEN |
| Toyota Chaser GX81 | 1988-08～ 1992-10 | 1G-GTE / 2000T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, AT, OEM Diff：OPEN |
| Toyota Chaser GX81 | 1988-08～ 1992-10 | 1G-GTE / 2000T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, AT, OEM Diff：LSD |
| Toyota Cresta GX81 | 1988-08～ 1992-10 | 1G-GE, 1G-FE / 2000 / FR | Rear | 1.5way(1.5&2way) Spec-F | NA model, AT, OEM Diff：OPEN |
| Toyota Cresta GX81 | 1988-08～ 1992-10 | 1G-GTE / 2000T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, AT, OEM Diff：OPEN |
| Toyota Cresta GX81 | 1988-08～ 1992-10 | 1G-GTE / 2000T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, AT, OEM Diff：LSD |
| Toyota Soarer GZ20 | 1986-01～ 1991-05 | 1G-GTEU / 2000T / FR | Rear | 1.5way(1.5&2way) Spec-F | MT/AT, OEM Diff：OPEN |
| Toyota Soarer GZ20 | 1986-01～ 1991-05 | 1G-GTEU / 2000T / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：OPEN |
| Toyota Supra JZA70 | 1990-08～ 1993-05 | 1JZ-GTE / 2500T / FR | Rear | 1.5way(1.5&2way) Spec-F | MT/AT, OEM Diff：OPEN |
| Toyota Crown JZS171 | 1999-09～ 2003-12 | 1JZ-GTE / 2500T / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：OPEN |
| Toyota Crown JZS171 | 1999-09～ 2003-12 | 1JZ-FSE / 2500 / FR | Rear | 1.5way(1.5&2way) Spec-F | 5AT, OEM Diff：OPEN |
| Toyota Crown JZS175 | 1999-09～ 2003-12 | 2JZ-FSE / 3000 / FR | Rear | 1.5way(1.5&2way) Spec-F | 5AT, OEM Diff：OPEN |
| Toyota Mark II JZX100 | 1996-09～ 2000-10 | 1JZ-GTE / 2500T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, MT/AT, OEM Diff：OPEN |
| Toyota Chaser JZX100 | 1996-09～ 2000-10 | 1JZ-GTE / 2500T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, MT/AT, OEM Diff：OPEN |
| Toyota Cresta JZX100 | 1996-09～ 2000-10 | 1JZ-GTE / 2500T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, MT/AT, OEM Diff：OPEN |
| Toyota Mark II JZX110 | 2000-10～ 2004-11 | 1JZ-GTE / 2500T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, AT/MT, OEM Diff：OPEN |
| Toyota Verossa JZX110 | 2001-07～ 2004-04 | 1JZ-GTE / 2500T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, AT/MT, OEM Diff：OPEN |
| Toyota Mark II JZX81 | 1988-08～ 1992-10 | 1JZ-GTE / 2500T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, MT/AT, OEM Diff：OPEN, Aug 1990 - |
| Toyota Chaser JZX81 | 1988-08～ 1992-10 | 1JZ-GTE / 2500T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, MT/AT, OEM Diff：OPEN, Aug 1990 - |
| Toyota Cresta JZX81 | 1988-08～ 1992-10 | 1JZ-GTE / 2500T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, MT/AT, OEM Diff：OPEN, Aug 1990 - |
| Toyota Mark II JZX90 | 1992-10～ 1996-09 | 1JZ-GTE / 2500T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, MT/AT, OEM Diff：OPEN |
| Toyota Chaser JZX90 | 1992-10～ 1996-09 | 1JZ-GTE / 2500T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, MT/AT, OEM Diff：OPEN |
| Toyota Cresta JZX90 | 1992-10～ 1996-09 | 1JZ-GTE / 2500T / FR | Rear | 1.5way(1.5&2way) Spec-F | Turbo model, MT/AT, OEM Diff：OPEN |
| Toyota Mark II JZX91 | 1992-10～ 1996-09 | 2JZ-GE / 3000 / FR | Rear | 1.5way(1.5&2way) Spec-F | MT/AT, OEM Diff：OPEN |
| Toyota Chaser JZX91 | 1992-10～ 1996-09 | 2JZ-GE / 3000 / FR | Rear | 1.5way(1.5&2way) Spec-F | MT/AT, OEM Diff：OPEN |
| Toyota Cresta JZX91 | 1992-10～ 1995-08 | 2JZ-GE / 3000 / FR | Rear | 1.5way(1.5&2way) Spec-F | MT/AT, OEM Diff：OPEN |
| Toyota Supra MA70 | 1986-02～ 1993-05 | 7M-GTEU / 3000T / FR | Rear | 1.5way(1.5&2way) Spec-F | MT/AT, OEM Diff：OPEN |
| Toyota Mark II MX83 | 1990-08～ 1993-02 | 7M-GE / 3000 / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：LSD |
| Toyota Chaser MX83 | 1990-08～ 1993-02 | 7M-GE / 3000 / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：LSD |
| Toyota Cresta MX83 | 1990-08～ 1993-02 | 7M-GE / 3000 / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：LSD |
| Toyota Soarer MZ20 | 1986-01～ 1991-05 | 7M-GTEU / 3000T / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：OPEN |
| Toyota Soarer MZ21 | 1986-01～ 1991-05 | 7M-GTEU / 3000T / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：OPEN |
| Toyota Crown UZS131 | 1989-08～ 1995-12 | 1UZ-FE / 4000 / FR | Rear | 1.5way(1.5&2way) Spec-F | AT, OEM Diff：OPEN |
Match chassis, engine, transmission and original differential specification to the applicable row before ordering. Position and installation requirements vary by vehicle.
PURCHASED PARTS PACKAGE
One limited-slip differential assembly in the listed specification.
INSTALLATION AND OPTIONS

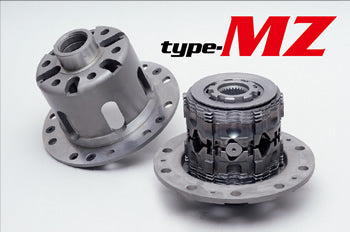

Professional installation and setup are required. Check application-specific seals, bearings and oil requirements. The manufacturer photo represents this differential family.
Manufacturer application reference.
